Icron USB 2.0 Ranger 140
00-00185
Icron USB 2.0 Ranger 140 (00-00185) extenders represent a significant milestone in the USB market supporting USB 2.0 peripheral devices at speeds up to 480 Mb/s over a distance of 50 m/164 ft. Powered by patented ExtremeUSB technology, Icron USB 2.0 Ranger 140 (00-00185) supports a single device port; the USB 2.0 Ranger 440 supports four device ports via an integrated hub. Both solutions are Class A devices enabling host computer and peripheral extension over standard Category 5 UTP cable.

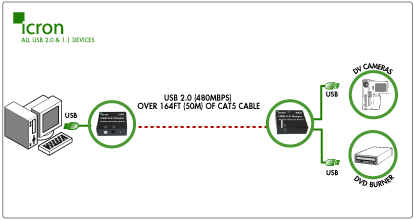

Icron USB 2.0 Ranger 140 (00-00185) Function Diagram
Icron USB 2.0 Ranger 140 (00-00185) Features and Benefits:
- Supports USB 1.1 (low-speed, full-speed) and USB 2.0 high-speed devices operating up to 480 Mb/s.
- Number of devices can be increased using standard USB hubs.
- USB ports at REX support high powered (500mA) devices.
Icron USB 2.0 Ranger 140 (00-00185) Specifications:
| Mechanical | |
| LEX Dimensions | 4.25 in. x 3.4 in. x 1.4 in. |
| LEX Weight | 0.6 lb. (0.3 kg.) |
| REX Dimensions | 4.25 in. x 3.4 in. x 1.4 in. |
| REX Weight | 0.6 lb. (0.3 kg.) |
| Environmental | |
| Operating Temperature | 39.2 to 104 degrees F |
| Connectors | |
| LEX Upstream | 1 X USB Type B |
| LEX Downstream | 1 x RJ-45 |
| REX Upstream | 1 x RJ-45 |
| REX Downstream | 1 x USB Type A |
| Power | |
| Adapter Maximum | 5V DC @ 3A at LEX & REX |
| Avail to USB at REX | 500mA |
| Tests | |
| FCC | CE Class A |
