Icron USB 2.0 Ranger 440
00-00208
The Icron 00-00208 USB 2.0 Ranger 440 is a 4-port Cat5 KVM Extender. This Cat 5 extender represents a significant milestone in the USB market supporting USB 2.0 peripheral devices at speeds up to 480 Mb/s over a distance of 50 m/164 ft. The USB 2.0 Ranger 440 supports four device ports via an integrated hub. Both solutions are Class A devices enabling host computer and peripheral extension over standard Category 5 UTP cable.
USB 2.0 Ranger 440 systems include a Local Extender (LEX) module, a Remote Extender (REX) module, a USB cable, 2 power adapters and User Guide.

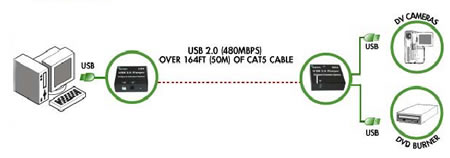

Icron USB 2.0 Cat5 Extender Diagram
Icron 00-00208 Features:
- Supports USB 1.1 (low-speed, full-speed) and USB 2.0 high-speed devices
operating up to 480 Mb/s. - True plug and play, no drivers required.
- Supports all major operating systems including Windows, Mac-OS, Linux and Sun.
- Number of devices can be increased using standard USB hubs.
- Powered at both LEX (local extender) and REX (remote extender) units.
- USB ports at REX support high powered (500mA) devices.
Icron 00-00208 Specifications:
| Mechanical | LEX unit | REX unit |
| Height | 1.4 in. (34 mm.) | 1.5 in. (38 mm.) |
| Width | 4.25 in. (107 mm.) | 4.5 in. (114 mm.) |
| Depth | 3.4 in. (84 mm.) | 4.2 in. (106 mm.) |
| Weight | 0.6 lb. (0.3 kg.) | 0.13 lb. (60 g.) |
| Environmental | ||
| Operating Temperature | 4°C to 40°C | |
| Connectors | ||
| LEX (upstream) | 1 x USB Type B | |
| LEX (downstream) | 1 x RJ-45 | |
| REX (upstream) | 1 x RJ-45 | |
| REX (downstream) | 4 x USB Type A | |
| Power | ||
| Power adapter Maximum Rating | 5V DC @ 3A connected at LEX & REX | |
| Power available to each USB at REX | 500mA | |
| Regulatory Testing | FCC, CE Class A | |
