Icron EL5200 HDMI + USB 2.0 KVM Extender, 330ft
00-00319
Save $136.00
Discontinued
Replaced by: Icron EL5363 (00-00386)
Alternative options: Contact Us
Featuring ExtremeUSB and HD Video technology, the Icron EL5200 KVM Extender lets you place an HDMI USB host up to 100m (330 ft) away from the viewing area using a single Cat 5e (or better) cable. This 3-port USB Video extender system supports full uncompressed HD video and USB 2.0 (up to 30Mbps) suitable for video applications in conjunction with keyboards, mice, and USB 1.1 web cameras. Applications include medical imaging, high-end home theater, and interactive digital signage.
The EL5200 KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 meters over a single Cat5e cable or better. This extender supports HDMI video features such as 1080p, 4K 30p, Deep Color and CEC/HDCP pass-through. Applications include medical imaging, high-end home theater, and interactive digital signage. Video resolution does not degrade when extended the full 100 meter distance.
Icron EL5200 Features- Long Distance: Video and USB over a single solid core shielded Cat 5e (or better) cable at distances up to 100m (330ft)
- Full uncompressed 1080p or 1920 x 1200 resolution HD video.
- 3D Support
- 4K Support @ 30p
- Deep Color
- x.v. Color
- Lip Sync Pass-through
- CEC Pass-through
- HDCP Pass-through
- ExtremeUSB suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux - Mounting Kit: allows units to be mounted to walls, desks or trays for 19" racks.
- 2-year warranty
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, Mac OS X, and Linux
Icron EL5200 Package Contents: Local Extender, Remote Extender, USB cable, HDMI cable, Quick Start Guide, Two international power adapters, 2-year warranty

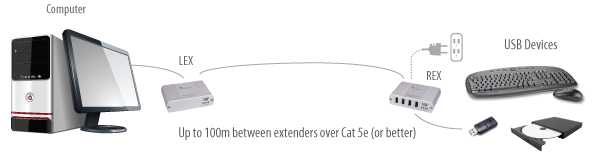

Icron EL5200 Diagram
Icron EL5200 Specifications
| Mechanical | |
| LEX (Local Extender) | 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2") |
| REX (Remote Extender) | 112mm x 175mm x 30mm (4.4" x 6.9" x 1.2") |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| LEX (Local Extender) | |
| Video Connector | 1 x HDMI |
| USB Connector | 1 x USB 2.0 Type B Receptacle |
| Link Connector | 1x RJ45 |
| Power Supply | 100-240V AC input, 5V DC output |
| REX (Remote Extender) | |
| Video Connector | 1 x HDMI |
| USB Connector | 3 x USB Type A Receptacles |
| USB Current | 500mA for each USB port |
| Link Connector | 1 x RJ45 |
| Power | 100-240V AC input, 5V DC output |
| Compliance | |
| EMC | FCC (Class A), CE, ICES-003 |
| Compliance | RoHS2 (CE) |
| Range | |
| Reach | 330 ft (100m) at full resolution |
| Interconnection Cable | RJ45 connector supporting solid core Cat 5e (or better) cable. |
| Recommended Interconnection Cable | Solid core Cat 6 is recommended for best results. |
