Minicom 15" LCD RackManager II with Audio
0SU52048/EN
The Minicom RackManager II 0SU52048 dual rail is a slim, rack-mountable console drawer for server management. Occupying just 1U of rack space, it's the most efficient way to control your server rack. The RackManager 0SU52048 uses 85% less space than a standard keyboard, monitor, and mouse. Its low power consumption leaves more power for servers and storage. Designed for compatibility, RackManager II is easily integrated with Minicom KVM and other legacy switches. The dual rail option lets you hide the keyboard and still view the screen even if the rack door is closed.

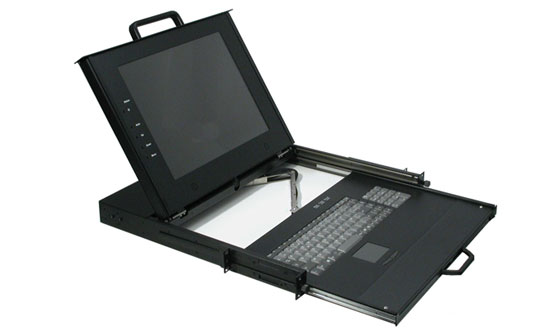

Minicom RackManager II Diagram
Minicom RackManager II 0SU52048 Features and Benefits:
- Dual rail KVM rack drawer
- Utilizes just 1U rack space
- Compatible with all KVM switching systems for multiple server access
- Adjustable to various rack depths from 45cm up to 100cm.
- Plug & play installation requires no change to the installed base
- 15" TFT LCD display with Audio
Minicom RackManager II 0SU52048 Technical Specifications:
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 17.7 in. (450 mm.) |
| Depth | 17.9 in. (455 mm.) |
| Chassis Construction | Heavy duty steel materials |
| Environmental | |
| Operating Temperature | 0°C to 55°C/32°F to 131°F |
| Storage Temperature | -20 0°C to 60°C/-4°F to 140°F |
| Humidity | 10%~90%RH |
| Power | |
| Source | 90-240 VAC input |
| Consumption | 25W |
| LCD Screen | |
| Display Size | 15" |
| Panel Type | Active Matrix TFT Active |
| Resolution Capabilities | Maximum Resolution up to 1024X768 |
| Pixel Pitch | Supports 0.297mm 2.297mm |
| Viewing Angle | Right-Left view 65 -75 Up-Down View 45 - 60 |
| Contrast Ratio | 250:1 |
| Brightness | White 250cd/m2 |
| Back Light | Dual Lamp for Back Light |
| Supported Colors | 16M Colors |
| Audio | |
| Audio In (Speakers) | Yes |
| Inputs | |
| Video Input | Analog RGB input |
| Input Connector | Video HDD15 K/M MiniDin6 |
| Keyboard Mouse | 105 key ps/2 keyboard with touch pad |
| Sync | 45~80KHZ |
| Response Time | |
| Rising Time | 10ms |
| Decay Time | 20ms |
