Raloy 1U 17" HD (1080p) LED Monitor Keyboard Drawer
RF117HD
Save $97.00
Model: 17" High-Def LED
Integrated KVM: Console Only (1-Port)

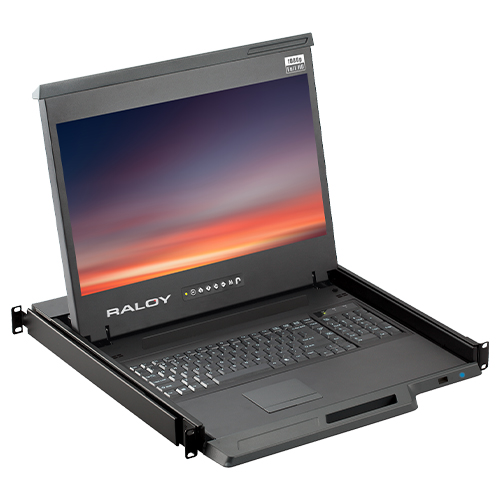

The Raloy RF117HD rack console features a 17" Widescreen LED LCD capable of full HD 1080p video. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your High-definition LED monitor, optional integrated KVM switch, Keyboard, and Mouse in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with optional integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the HD monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
- High Definition LED
Support for full 1080p HD.
- Modular Options
Support for various keyboard, mouse, video input, audio speaker, power, and KVM options.

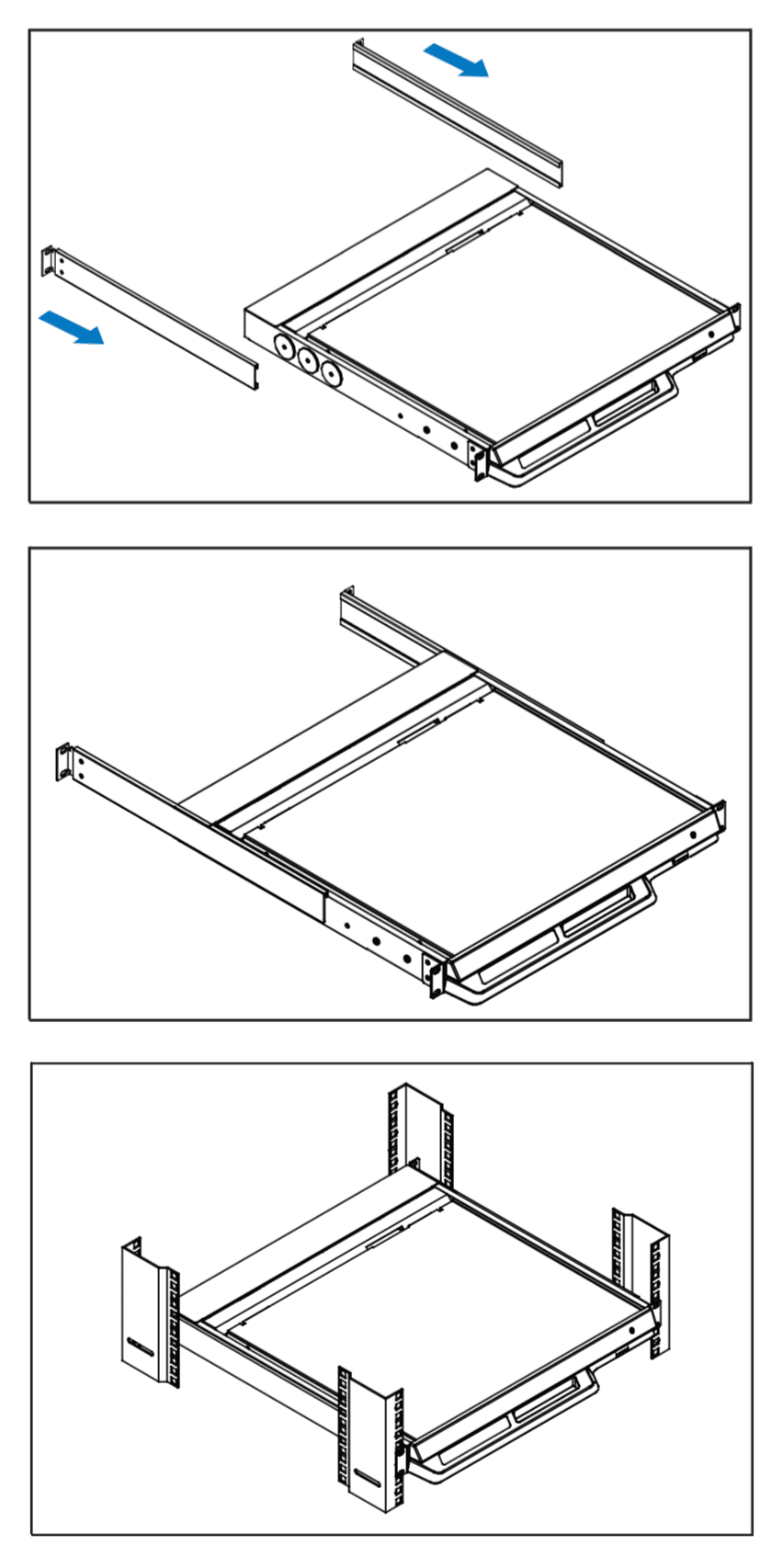

- 2-Post or 4-Post Mount
2-post & 4-post rack mounting available.
- star_rate Certified Quality
UL Approved, FCC & CE certified, and RoHS2 & REACH Compliant.
RF117HD Features
- 1U 17" widescreen LED console drawer with HDMI or VGA depending on console cable selected
(optional - DVI-D, or 3G / HD / SD-SDI ) - Supports Full HD with 1080p resolution
- 104-key keyboard with either touchpad or trackball
- New enhanced aesthetics with molded front handle
- Numerous integrated KVM switch options available for highly customized rack management solutions

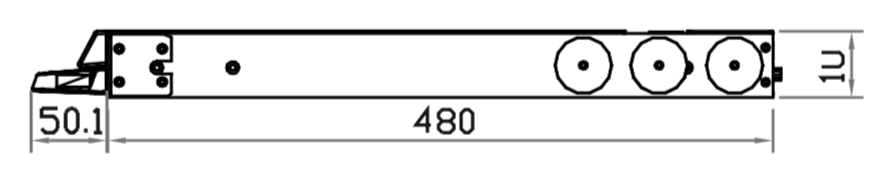

- Short depth design - only 18.9" deep
(min. mounting depth 18.9" to max. mounting depth 29.5" - 23.5" to 34.5" w/ optional KVM) - 2 post rack mounting available with optional kit
- Optional Picture in Picture (PIP) & Picture by Picture (PBP) capability* [-HDMI] input option only
- UL, cUL, CE, FCC, & CCC Certified
- 24 Month Standard Warranty - Extended Warranties available for purchase

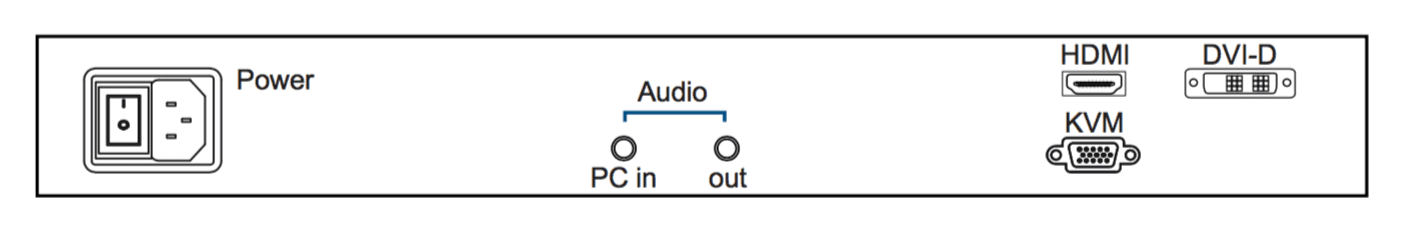

RF117HD Modular Options
Video
- HDMI & VGA via RCX-6B (HDMI) or RCB-6A (VGA) Cable
- DisplayPort and/or DVI
- HDMI, DVI, & USB-C via USB-C to HDMI & USB Adapter
- 3G/HD/SD-SD [SDI]
Mouse
- Glidepoint Touchpad (standard)
- Trackball
Keyboard
- 104-key notepad US keyboard (standard)
- Available in 14 international languages
Audio
- None (standard)
- 2x 2W Speakers + Audio Input & Output
Integrated KVM Switch
- None (standard)
- 8 to 32 Port; 1 to 4 Concurrent Users (local or over-IP)
Power
- 100 to 240V AC (standard)
- 12V DC
- 24V DC
- 48V DC
- 110V DC
- 125V DC
For help with your custom configuration, please feel free to Contact Us.

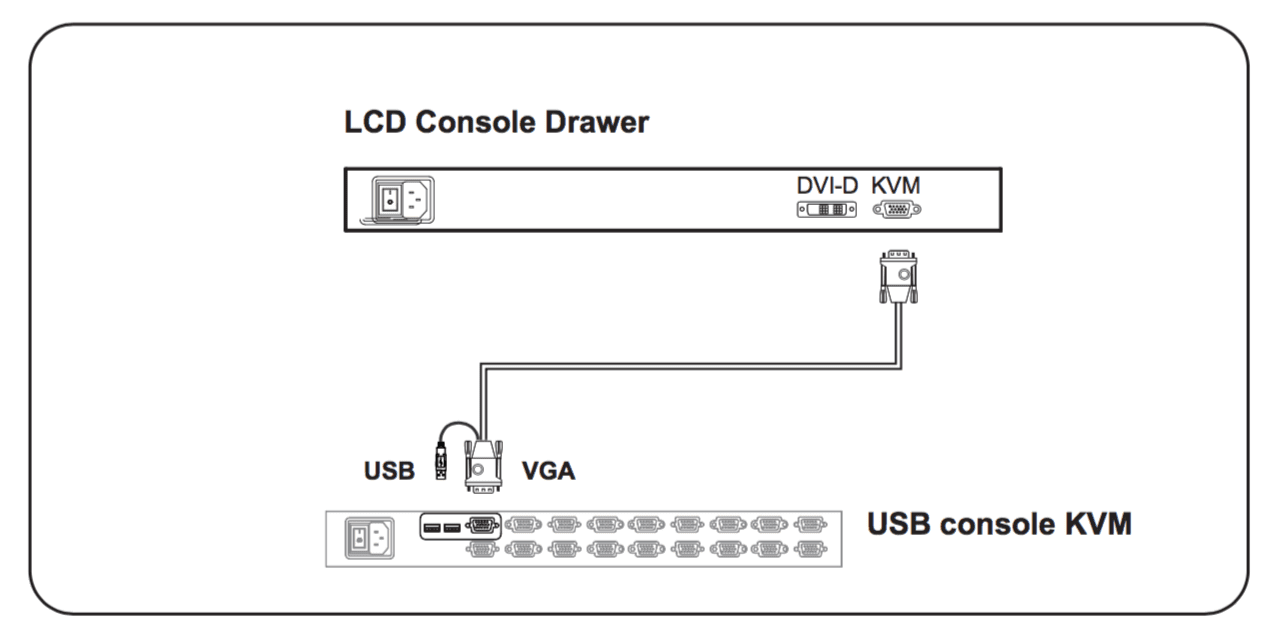

Integrate KVM Switch Into 1RMU
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

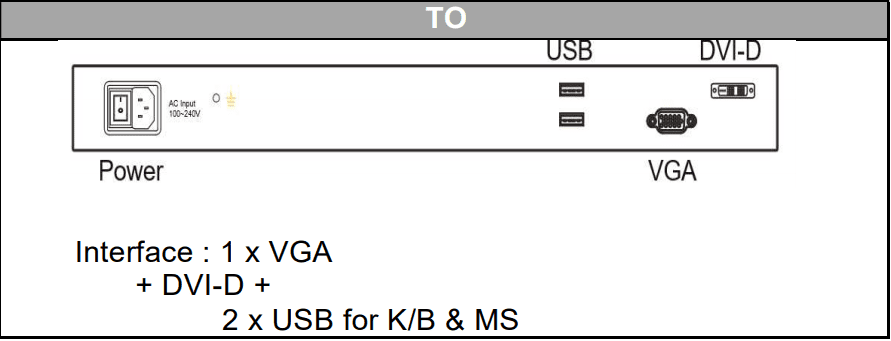

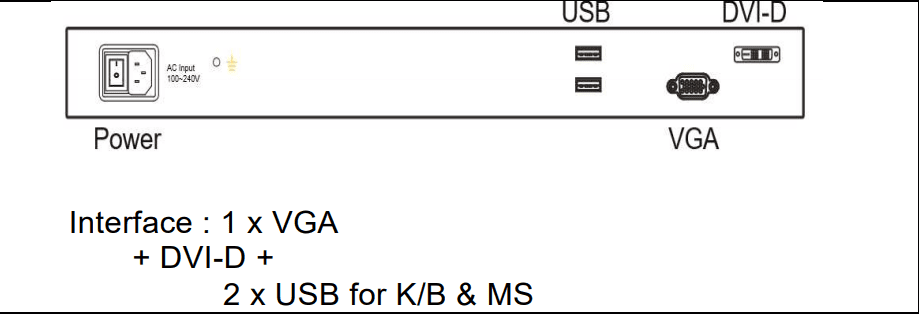

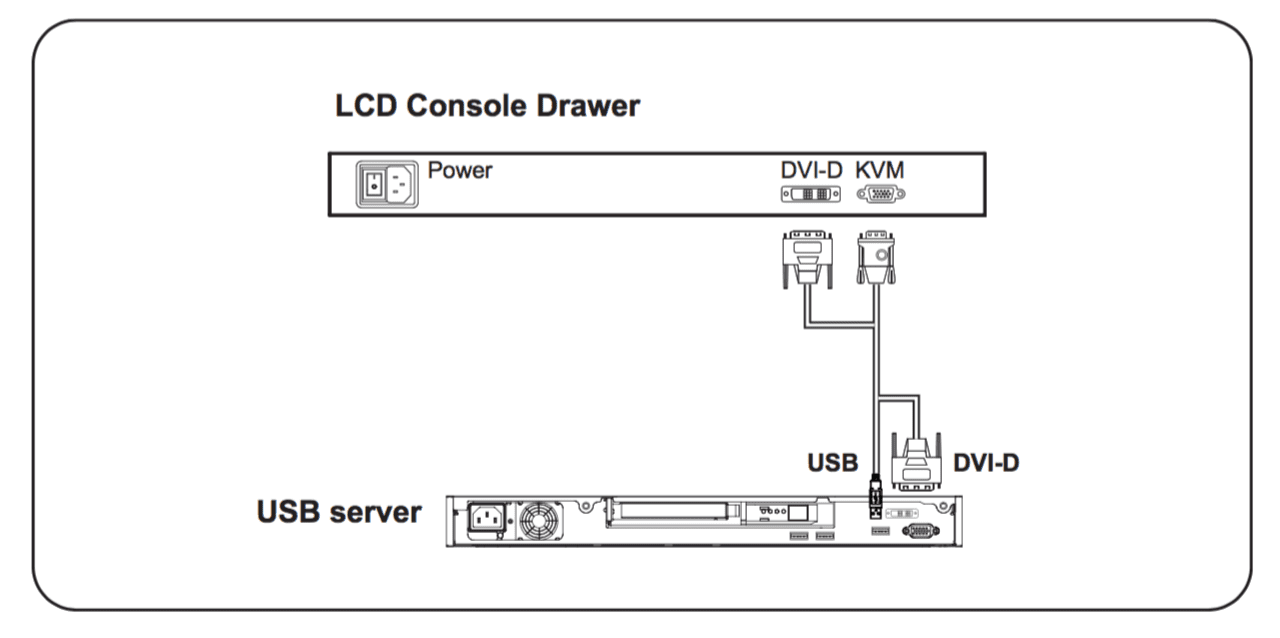

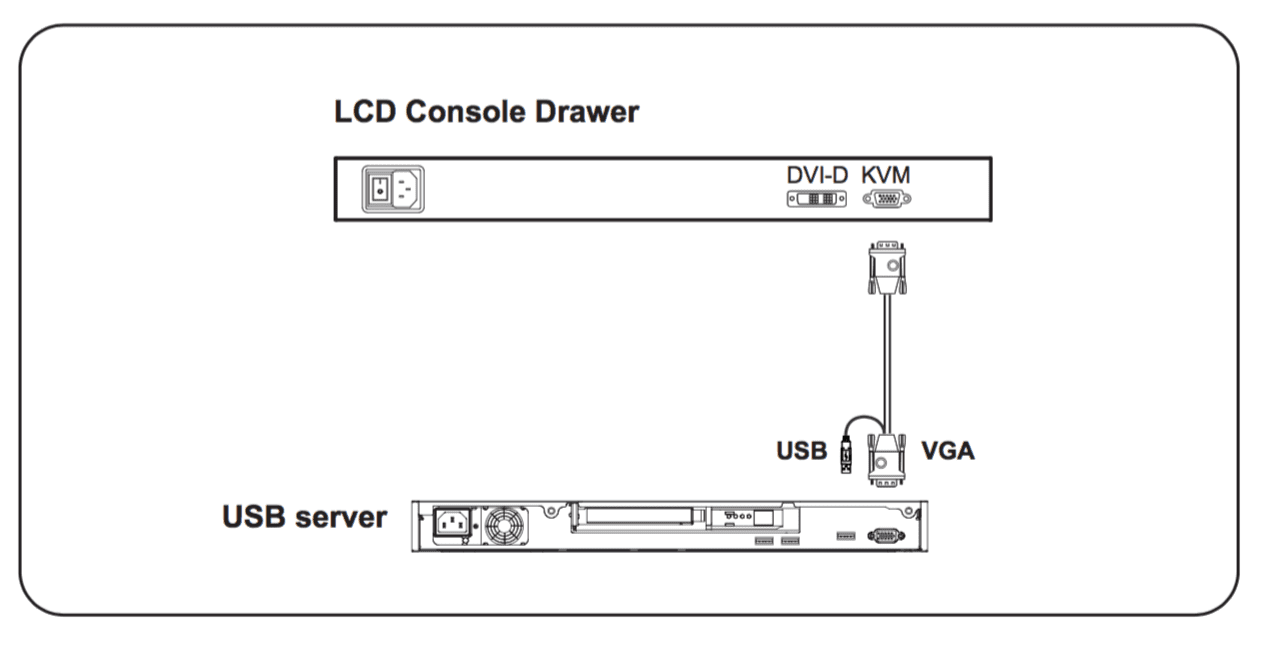

KVM Type |  RF117HD with DVI-D KVM |  RF117HD with High-Density Cat6 KVM |  RF117HD with VGA DB-15 KVM |  RF117HD with VGA DB-15 KVM with USB Hub |
|---|---|---|---|---|
| KVM Port Connection | DVI + USB |  |  | |
| Ports | 12 | 32 / 16 / 8 | 16 / 8 | 16 / 8 |
| KB / MS | USB | USB / PS2 | USB / PS2 | USB |
| Video | DVI-D | VGA / DVI / HDMI / DP / USB-C | VGA | VGA |
| Local User | 1 | 1 | 1 | 1 |
| Network IP Access Users | 0 | 0 to 2 | 0 to 2 | 0 to 1 |
| Extended Remote Users (500 ft) | 0 | 0 to 3 | 0 to 3 | 0 to 1 |
| USB Peripheral Port | 2 x USB 3.0 | -- | -- | 2 x USB 2.0 |
| Audio | Analog | -- | -- | -- |
| Max. Distance (KVM to Server) | 15 Ft / 4.5 M | 130 Ft / 40 M | 15 Ft / 4.5 M | 15 Ft / 4.5 M |
| Cascade Levels | -- | 8 | 8 | -- |
| Integrate | Integrate | Integrate | Integrate |
RF117HD Package Contents
- (1) RF117HD Rack Console
- (1) RCX-6B HDMI/USB console cable
- or RCB-6A VGA/USB cable upon request - (1) US Power Cord
- (8) M6 screw, cage nut & cup washer
- (1) 24 Month Limited Warranty
- Extended Warranties available for purchase - *Additional parts may be included based on options
RF117HD Resources
Raloy RF117HD Datasheet (PDF)
Raloy RF117HD Manual (PDF)
Instructional Media
Raloy RF117HD Specifications
Product Dimensions* | |

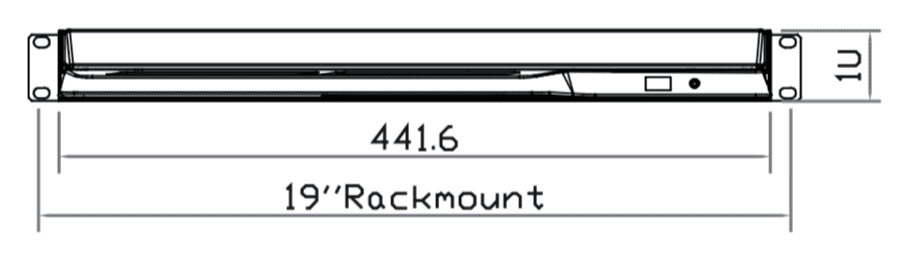

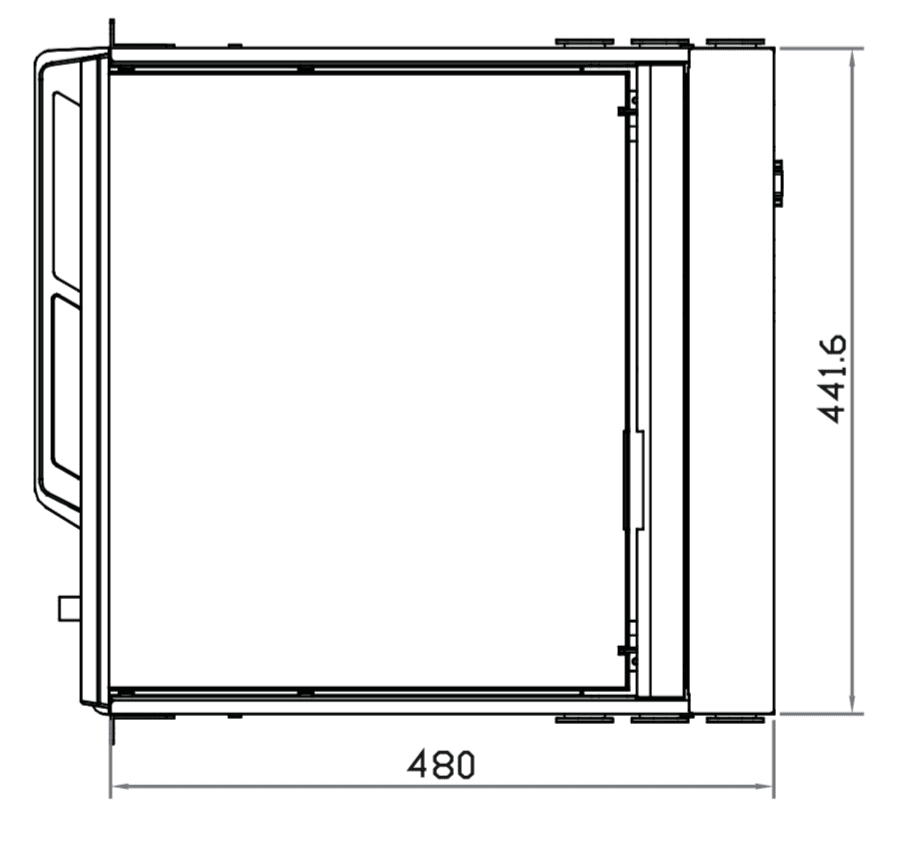

Product (W x D x H) | 17.4 x 18.9 x 1.73 in. / 441.6 x 480 x 44 mm |
Packing (W x D x H) | 23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm |
Net Weight | 23.8 lbs / 10.8 kgs |
Gross Weight | 34.8 lbs / 15.8 kgs |
LCD Monitor | |
Diagonal Size | 17.3-inch Widescreen TFT color LCD |
Max. Resolution | 1920 x 1080 |
Brightness | 300 |
Color Support | 1.07 Billion |
Contrast Ratio (typical) | 1000:1 |
Viewing Angle (L/R/U/D) | 89/89/89/89 |
Display Area (mm) | 381.9H x 214.8V |
LCD Panel MTBF (hrs) | 20,000 |
VGA Signal Input | Analog RGB, 0.7Vp-p |
| HDMI Signal Input | HDMI 1.4, HDCP 1.4 |
| Optional DVI-D Signal Input | DVI-D, TMDS single link |
Sync. Type | Separate H/V, Composite, SOG |
Plug & Play DDC | EDID 1.3 |
Module Options | |
Keyboard | 104 key notepad keyboard with full numerical pad and multiple keyboard language options. |
Mouse | 2 button touchpad or trackball |
Other Options | Broadcast SDI, DC power, and audio input/output options available. |
Power | |
Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
Optional DC | 12V/24V/48V DC input |
Consumption | Max. 48 Watt, Standby 5 Watt |
Regulatory Approval | UL, cUL, FCC, CE |
Environmental | |
Operation | 32° - 122°F (0° - 50°C) |
Storage | 23° - 140°F (-5° - 60°C) |
Relative Humidity | 5-90%, non-condensing |
Shock | 10G peak acceleration (11ms, half-sine wave) |
Vibration | 5~500Hz 1G RMS random vibration |
Package Contains** | 1 x RF117HD Rack Console; 1 x RCX-6B HDMI/USB console cable (or RCB-6A VGA/USB cable upon request); 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers |
| * KVM and other options may change depth ** Rack consoles with integrated KVM options will include additional KVM cables depending on KVM option type and number of ports selected. | |
Question: The manuals that you have available for download do not apply to the Integrated 12-port DVI-D KVM Switch.
Answer: Thank you for your inquiry. We have contacted the manufacturer, who has uploaded a DVI-D KVM switch manual and added it to the bottom of this page: http://www.raloy.com/support/downloads.html.
Click here for a direct link to the pdf manual.
Question: can you tell me the country of origin on the RF117HDE-KVM10108
Answer: Thank you for your inquiry,
The Country Of Origin for the RF117HDE-KVM10108 is China; Those units are assembled in CA, USA.
Question: If i buy this unit it is possible to have this unit the Sticker for CCC approved or Certification ?
Answer: Thank you for your inquiry,
We are indeed able to provide a CCC approved silver label sticker for the Raloy RF117HD with the order.
Please indicate this requirement on the PO or "Order Notes" (if online) when placing order.
Question: If I purchase the 8 port KVM switch option, will input cables be supplied, or is that an additional accessory purchase?
Answer: Thank you for your inquiry,
The 8 port KVM switch options (KVM10008, KVM10108, KVM11008) include all 8 required RCE-6 4-in-1 Cables (VGA, USB & PS2) - no additional purchase is required.
Question: What is the mounting depth of this option? Does it extends up to 32 inches?
Answer: Thank you for your inquiry,
RF117HD console only version (without integrated KVM) has a rail-to-rail mounting depth of 18.9 in. (min) to 29.5 in. (max) (480 to 749.3 mm.)
RF117HD with integrated KVM Switch versions have a rail-to-rail mounting depth of 23.5 in. (min) to 34.5 in. (max) (596.9 to 876.3 mm.)
The console only or KVM models of RF117HD should fit into most standard server racks including 32 or 48 in. deep racks; The rail-to-rail distance of racks is typically under that 29.5 in. to 34.5 in. range.
Question: How long will the RF117HD be available?
Answer: Thank you for your inquiry,
Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.
Question: Do you know if there is a Linux Driver for your touch screen?
Answer: Thank you for your inquiry,
Yes, you can download linux drivers for the optional touchscreen module integrated in the RF117HD from the touchscreen manufacturer website here.
Question: Could you please advise if your KVM Monitor Model: RF117HD's Touchpad supports multitouch gesturing in a Windows 10 Pro environment? Looking to be able zoom in out, etc.
Answer: Thank you for your inquiry,
As far as the touchpad mouse goes - We are not currently aware of a touchpad mouse in a rackmount KVM monitor that would support "multi-touch gesturing" in Win 10 environment due to limitation in standard USB-HID (Human Interface Device) specification used in KVM devices for greater compatibility between systems; This would require a seperate USB connection with driver support.
That being said, an optional 10-point Multi-touch Touch-screen can be integrated into the RF117HDe or RF117HDe with integrated VGA Hub KVM Switch (i.e. RF117HD-801He) which support Windows 10 Pro. The part number would be RF117HDe-TPC-10 or i.e. RF117HD-801He-TPC-10. You can add this option using the "Touchscreen Option" dropdown above.
Question: Does this monitor take 1080i50 signal?
Answer: Thank you for your inquiry,
Yes, we believe it would. According to the manufacturer, using the HDMI connections, the RF117HD will support the following resolutions:
1920 x 1080 x 50/60Hz (1080p)
1920 x 1080 x 25/30Hz (1080i) << This should provide a "Field Rate" of 50/60 or 1080i50/60
1280 x 720 x 50/60Hz (720p)
720 x 480 x 50/60Hz (576p/480p)
Question: I have a question about the DC Power terminal & Ground screw on the rear of this KVM. What sizes are the screws for the DC terminal (+/-) and ground screw? I can't seem to find this info on the manual for this KVM.
Answer: Thank you for your inquiry,
The screw size for DC terminal is 3mm, and the ground screw is 4mm.
Please let us know if there is anything else we can help you with!
Question: When the display is fully opened, what is the total height of the unit?
Answer: Thank you for your inquiry,
The RF117HD console open in right-angle is 15.25" tall.
Please let us know if there is anything else we can help you with!
Question: What is the default password and username?
Answer: Thank you for your inquiry,
The default user name and password for RF117HD models with Integrated KVM is "00000000" (eight zeros). Note, do not use the "0" on the number pad.
For models with IP access, the default IP console user name is "super" and password is "pass".
Please let us know if there is anything else we can help you with!
Question: Does the RF117HD+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,
If the model comes with DC power input (RF117HD+48), there is no power switch on the unit.
The RF117HD with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 15 of the Raloy RF117HD Manual.
Please let us know if there is anything else we can help you with!
Question: Can you change trackpad speed? Is there a way to enable two finger scroll? Is there firmware for the trackpad?
Answer: Thank you for your inquiry,
Can you change trackpad speed?
On a Windows, you can change the speed through Control panel -> Mouse Properties -> Pointer Options -> Motion.
Is there a way to enable two finger scroll?
This is not supported yet; There is currently no LCD console drawer on the market that supports two finger scroll yet.
Is there firmware for the trackpad?
The Trackpad is USB plug & play version, so there is no need for firmware.
Please let us know if there is anything else we can ever help you with!
Question: What is the HTS code and ECCN number for Raloy RF117HD?
Answer: Thank you for your inquiry,
See below for Export Classification information for the RF117HD:
ECCN: 8528.51.0000
HTS: 4A994
Please let us know if there is anything else we can help you with!
Answer: Thank you for your inquiry. We have contacted the manufacturer, who has uploaded a DVI-D KVM switch manual and added it to the bottom of this page: http://www.raloy.com/support/downloads.html.
Click here for a direct link to the pdf manual.
Question: can you tell me the country of origin on the RF117HDE-KVM10108
Answer: Thank you for your inquiry,
The Country Of Origin for the RF117HDE-KVM10108 is China; Those units are assembled in CA, USA.
Question: If i buy this unit it is possible to have this unit the Sticker for CCC approved or Certification ?
Answer: Thank you for your inquiry,
We are indeed able to provide a CCC approved silver label sticker for the Raloy RF117HD with the order.
Please indicate this requirement on the PO or "Order Notes" (if online) when placing order.
Question: If I purchase the 8 port KVM switch option, will input cables be supplied, or is that an additional accessory purchase?
Answer: Thank you for your inquiry,
The 8 port KVM switch options (KVM10008, KVM10108, KVM11008) include all 8 required RCE-6 4-in-1 Cables (VGA, USB & PS2) - no additional purchase is required.
Question: What is the mounting depth of this option? Does it extends up to 32 inches?
Answer: Thank you for your inquiry,
RF117HD console only version (without integrated KVM) has a rail-to-rail mounting depth of 18.9 in. (min) to 29.5 in. (max) (480 to 749.3 mm.)
RF117HD with integrated KVM Switch versions have a rail-to-rail mounting depth of 23.5 in. (min) to 34.5 in. (max) (596.9 to 876.3 mm.)
The console only or KVM models of RF117HD should fit into most standard server racks including 32 or 48 in. deep racks; The rail-to-rail distance of racks is typically under that 29.5 in. to 34.5 in. range.
Question: How long will the RF117HD be available?
Answer: Thank you for your inquiry,
Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.
Question: Do you know if there is a Linux Driver for your touch screen?
Answer: Thank you for your inquiry,
Yes, you can download linux drivers for the optional touchscreen module integrated in the RF117HD from the touchscreen manufacturer website here.
Question: Could you please advise if your KVM Monitor Model: RF117HD's Touchpad supports multitouch gesturing in a Windows 10 Pro environment? Looking to be able zoom in out, etc.
Answer: Thank you for your inquiry,
As far as the touchpad mouse goes - We are not currently aware of a touchpad mouse in a rackmount KVM monitor that would support "multi-touch gesturing" in Win 10 environment due to limitation in standard USB-HID (Human Interface Device) specification used in KVM devices for greater compatibility between systems; This would require a seperate USB connection with driver support.
That being said, an optional 10-point Multi-touch Touch-screen can be integrated into the RF117HDe or RF117HDe with integrated VGA Hub KVM Switch (i.e. RF117HD-801He) which support Windows 10 Pro. The part number would be RF117HDe-TPC-10 or i.e. RF117HD-801He-TPC-10. You can add this option using the "Touchscreen Option" dropdown above.
Question: Does this monitor take 1080i50 signal?
Answer: Thank you for your inquiry,
Yes, we believe it would. According to the manufacturer, using the HDMI connections, the RF117HD will support the following resolutions:
1920 x 1080 x 50/60Hz (1080p)
1920 x 1080 x 25/30Hz (1080i) << This should provide a "Field Rate" of 50/60 or 1080i50/60
1280 x 720 x 50/60Hz (720p)
720 x 480 x 50/60Hz (576p/480p)
Question: I have a question about the DC Power terminal & Ground screw on the rear of this KVM. What sizes are the screws for the DC terminal (+/-) and ground screw? I can't seem to find this info on the manual for this KVM.
Answer: Thank you for your inquiry,
The screw size for DC terminal is 3mm, and the ground screw is 4mm.
Please let us know if there is anything else we can help you with!
Question: When the display is fully opened, what is the total height of the unit?
Answer: Thank you for your inquiry,
The RF117HD console open in right-angle is 15.25" tall.
Please let us know if there is anything else we can help you with!
Question: What is the default password and username?
Answer: Thank you for your inquiry,
The default user name and password for RF117HD models with Integrated KVM is "00000000" (eight zeros). Note, do not use the "0" on the number pad.
For models with IP access, the default IP console user name is "super" and password is "pass".
Please let us know if there is anything else we can help you with!
Question: Does the RF117HD+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,

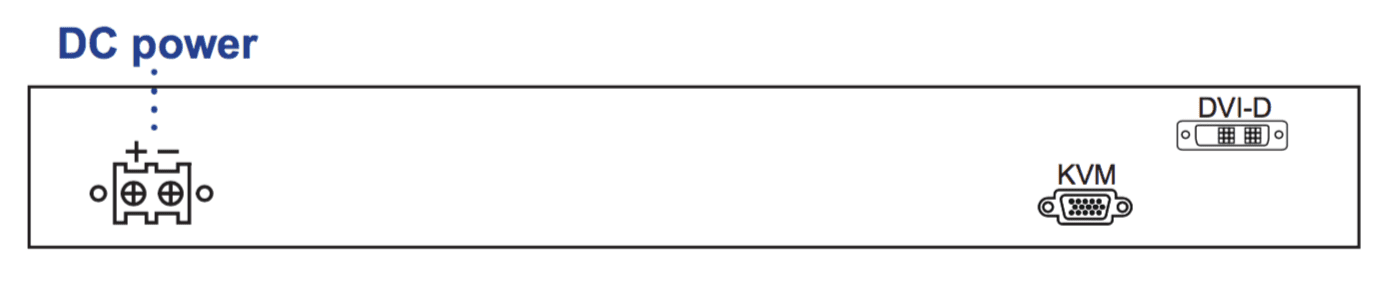

If the model comes with DC power input (RF117HD+48), there is no power switch on the unit.

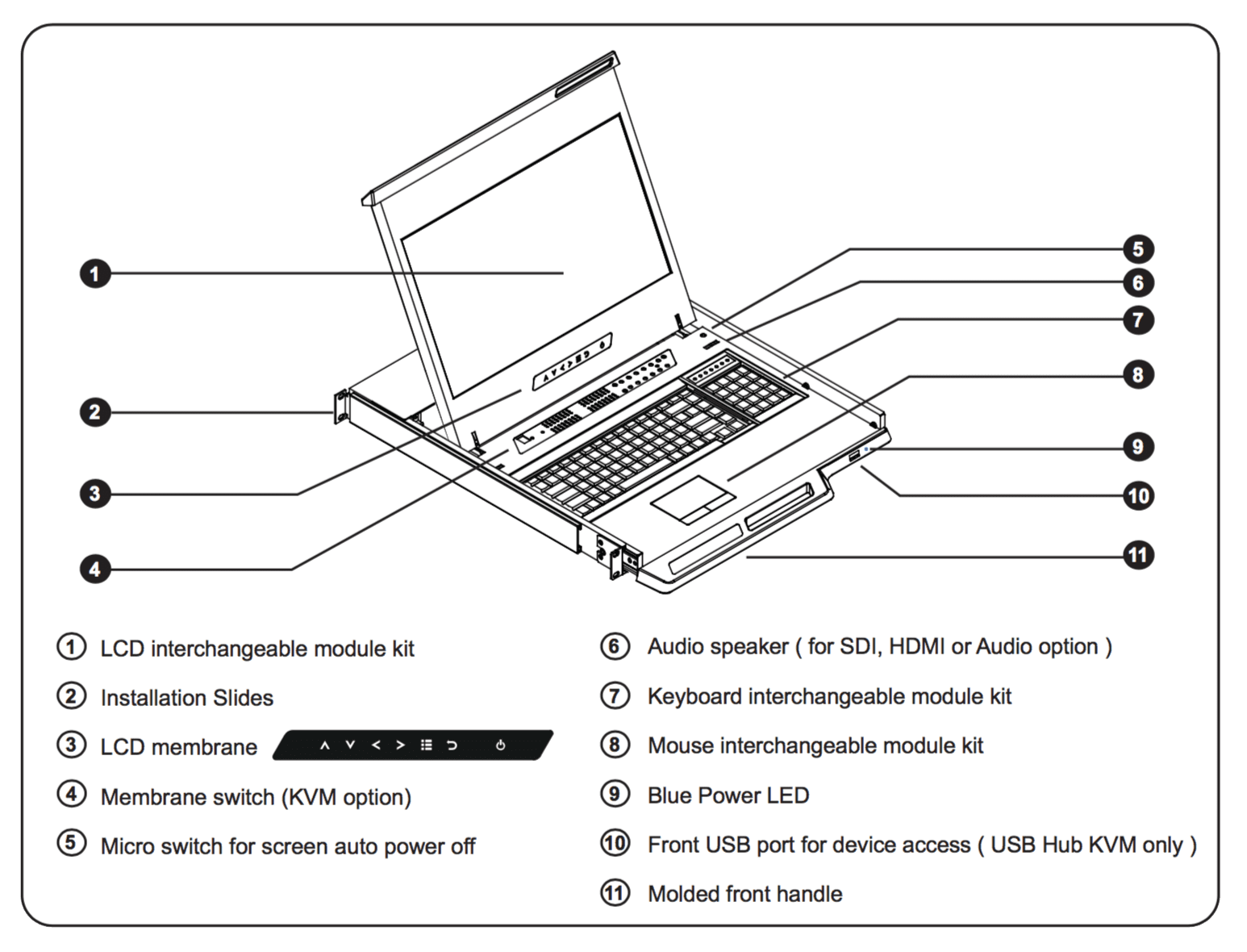

The RF117HD with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 15 of the Raloy RF117HD Manual.
Please let us know if there is anything else we can help you with!
Question: Can you change trackpad speed? Is there a way to enable two finger scroll? Is there firmware for the trackpad?
Answer: Thank you for your inquiry,
Can you change trackpad speed?
On a Windows, you can change the speed through Control panel -> Mouse Properties -> Pointer Options -> Motion.
Is there a way to enable two finger scroll?
This is not supported yet; There is currently no LCD console drawer on the market that supports two finger scroll yet.
Is there firmware for the trackpad?
The Trackpad is USB plug & play version, so there is no need for firmware.
Please let us know if there is anything else we can ever help you with!
Question: What is the HTS code and ECCN number for Raloy RF117HD?
Answer: Thank you for your inquiry,
See below for Export Classification information for the RF117HD:
ECCN: 8528.51.0000
HTS: 4A994
Please let us know if there is anything else we can help you with!
