Avocent 16 Port Cyclades ACS 5016 with single AC power supply
ACS5016-001
The Avocent ACS5016-001 is a 16 Port Cyclades ACS 5016 with single AC power supply. The ACS 5000 series of advanced console servers offers IT professionals and network operations center (NOC) personnel the ability to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Using a hardened Linux operating system, Cyclades ACS 5000 console servers provide optimal performance, security and reliability. Combined with integrated power management and using DSView 3 management software, Cyclades ACS 5000 console servers offer centralized management and a secure and consolidated out-of-band management solution.
The ACS 5000 console servers fit in 1U of rack space, and help provide scalability, decrease network maintenance costs, and maximize IT asset productivity in medium to large enterprise data centers. Security features such as SSH v2, RADIUS authentication, IP filtering, and user access lists per port allow data center managers and system administrators to remotely manage the network and servers with greater control and reliability.
Console management features such as data buffering, direct access methods to the serial ports (such as TCP port and server name), and event notification improve monitoring capabilities, which allows for faster problem-solving actions and higher network uptime.
Note: Please call 1-877-586-6654 for availability.

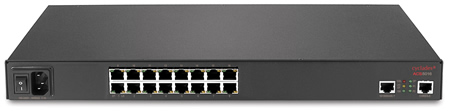

Avocent ACS5016-001 Back View
Avocent ACS5016-001 Features:
- Operating System- Embedded Linux
- Accessibility
- In-band (Ethernet) and out-of-band (dial-up modem) support
- Dedicated console port
- Security
- SSHv1 and SSHv2
- Local, RADIUS, TACACS+, LDAP/AD
- Two-factor authentication (RSA SecurID)
- PAP/CHAP
- Local backup user authentication support
- IP packet and security filtering
- User access control lists per port
- System event syslog
- Dial-up access (PPP)
- Dial-up authentication for remote access
- IP forwarding support
- Console Management
- Windows Server 2003 EMS support
- Sun break-safe (Solaris Ready Certified)
- Java-based SSH client
- Offline data buffering - local or remote (NFS/Syslog)
- Level-based syslog filters
- Timestamp and rotations for data buffering
- Multiple simultaneous sessions
- Simultaneous access on the same port (port sniffing) with ability to toggle
- Clustering (central access to multiple console servers)
- Event notification (email, pager, SNMP trap)\
- Global time zone support
- Multiple and customizable user levels of access
- Power Management- Power integration using Cyclades PM and third-party power support using SPC and ServerTech Switched CDU Power Strips
- Port Access
- Directly by TCP port, IP address or server name
- Telnet/SSH with menu
- Simultaneous Telnet and SSH access
- HTTP/HTTPS
- System Management
- Configuration wizard for first-time users
- Auto discovery for automatic deployment
- Command line access (Linux shell)
- Web management interface (HTTP/HTTPS)
- SNMP
- Centralized management using DSView 3 software
- Cabling- CAT 5 compatible adapters for simpler cabling
- Upgrades
- Upgrades available on FTP site, no charge
- Flash upgradeable
- TFTP support for network boot
- Additional Protocols Supported
- DHCP for dynamic IP address assignment
- PPP/SLIP for dial-up
- NTP for time server synchronization
- RFC2217 support for remote serial port access

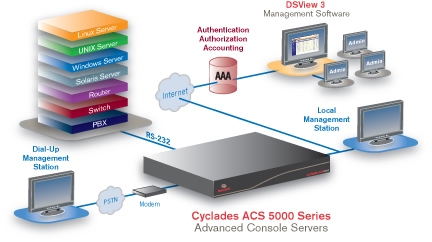

Avocent Cyclades ACS 5000 Series Application Diagram
Avocent ACS5016-001 Specifications:
| Mechanical | |
| Height | 1.7 in. (43 mm) |
| Width | 17 in. (433 mm) |
| Depth | 8.5 (225 mm) |
| Weight | 7.7 lbs. (3.5 Kg) |
| Memory | 128 MB DIMM SDRAM/128 MB compact flash |
| Interfaces | 1 Ethernet 10/100BT on RJ-45 1 RS-232 console on RJ-45 RS-232 serial ports on RJ-45 |
| CPU | MPC855T (PowerPC Dual-CPU) |
| Environmental | |
| Operating Temperature | 50°F to 112°F (10°C to 44°C) |
| Storage Temperature | 4°F to 158°F (-20°C to 70°C) |
| Humidity | 15% to 90% non-condensing |
| Power | |
| Power | Internal 100-240 VAC, 50/60 Hz, 35 W max. |
| Consumption | Nominal voltage 100-240VAC: Typical 0.15A, 18WMaximum 0.3A, 36W |
| Certifications | FCC Part 15A EN55022, A (CE) EN55024 (CE) ICES-03 C-Tick Solaris Ready VCCI |
UPC 636430048475
EAN 0636430048475
Answer: Avocent is known for delivering network-reliability programs backed by the largest global services organization in the industry. Please call 1.877.586.6654 in order to discuss your project and available service offerings.
Question: how to calculate the correct uptime in cyclade
Answer: Thank you for your inquiry. Unfortunately, we do not fully understand the question. Perhaps the answer you seek can be found in the Cyclades ACS 5000 manual. You can download a PDF copy here: http://www.emersonnetworkpower.com/documents/en-us/brands/avocent/documents/manuals/01/590815501b.pdf.
