Avocent 32 Port Cyclades ACS 5032 with single AC power supply
ACS5032-001
Download the
ACS5032 Manual (PDF)
The Avocent ACS5032-001 is a 32 Port Cyclades ACS 5032 with single AC power supply. The ACS 5000 series of advanced console servers offers IT professionals and network operations center (NOC) personnel the ability to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Using a hardened Linux operating system, Cyclades ACS 5000 console servers provide optimal performance, security and reliability. Combined with integrated power management and using DSView 3 management software, Cyclades ACS 5000 console servers offer centralized management and a secure and consolidated out-of-band management solution.ACS5032 Manual (PDF)
The ACS 5000 console servers fit in 1U of rack space, and help provide scalability, decrease network maintenance costs, and maximize IT asset productivity in medium to large enterprise data centers. Security features such as SSH v2, RADIUS authentication, IP filtering, and user access lists per port allow data center managers and system administrators to remotely manage the network and servers with greater control and reliability.
Console management features such as data buffering, direct access methods to the serial ports (such as TCP port and server name), and event notification improve monitoring capabilities, which allows for faster problem-solving actions and higher network uptime.
Note: Please call 1-877-586-6654 for availability.

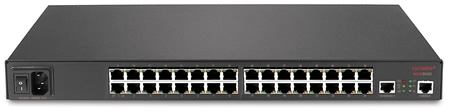

Avocent ACS5032-001 Back View
Avocent ACS5032-001 Features:
- Operating System- Embedded Linux
- Accessibility
- In-band (Ethernet) and out-of-band (dial-up modem) support
- Dedicated console port
- Security
- SSHv1 and SSHv2
- Local, RADIUS, TACACS+, LDAP/AD
- Two-factor authentication (RSA SecurID)
- PAP/CHAP
- Local backup user authentication support
- IP packet and security filtering
- User access control lists per port
- System event syslog
- Dial-up access (PPP)
- Dial-up authentication for remote access
- IP forwarding support
- Console Management
- Windows Server 2003 EMS support
- Sun break-safe (Solaris Ready Certified)
- Java-based SSH client
- Offline data buffering - local or remote (NFS/Syslog)
- Level-based syslog filters
- Timestamp and rotations for data buffering
- Multiple simultaneous sessions
- Simultaneous access on the same port (port sniffing) with ability to toggle
- Clustering (central access to multiple console servers)
- Event notification (email, pager, SNMP trap)\
- Global time zone support
- Multiple and customizable user levels of access
- Power Management- Power integration using Cyclades PM and third-party power support using SPC and ServerTech Switched CDU Power Strips
- Port Access
- Directly by TCP port, IP address or server name
- Telnet/SSH with menu
- Simultaneous Telnet and SSH access
- HTTP/HTTPS
- System Management
- Configuration wizard for first-time users
- Auto discovery for automatic deployment
- Command line access (Linux shell)
- Web management interface (HTTP/HTTPS)
- SNMP
- Centralized management using DSView 3 software
- Cabling- CAT 5 compatible adapters for simpler cabling
- Upgrades
- Upgrades available on FTP site, no charge
- Flash upgradeable
- TFTP support for network boot
- Additional Protocols Supported
- DHCP for dynamic IP address assignment
- PPP/SLIP for dial-up
- NTP for time server synchronization
- RFC2217 support for remote serial port access

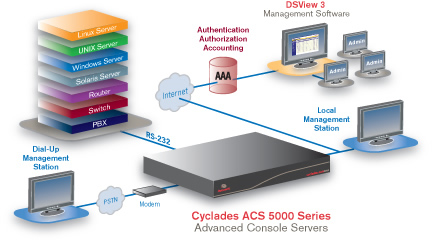

Avocent Cyclades ACS 5000 Series Application Diagram
Avocent ACS5032-001 Specifications:
| Mechanical | |
| Height | 1.7 in. (43 mm) |
| Width | 17 in. (433 mm) |
| Depth | 8.5 (225 mm) |
| Weight | 7.7 lbs. (3.5 Kg) |
| Memory | 128 MB DIMM SDRAM/128 MB compact flash |
| Interfaces | 1 Ethernet 10/100BT on RJ-45 1 RS-232 console on RJ-45 RS-232 serial ports on RJ-45 |
| CPU | MPC855T (PowerPC Dual-CPU) |
| Environmental | |
| Operating Temperature | 50°F to 112°F (10°C to 44°C) |
| Storage Temperature | 4°F to 158°F (20°C to 70°C) |
| Humidity | 15% to 90% non-condensing |
| Power | |
| Power | Internal 100-240 VAC, 50/60 Hz, 35 W max. |
| Consumption | Nominal voltage 100-240VAC: Typical 0.15A, 18WMaximum 0.3A, 36W |
| Certifications | FCC Part 15A EN55022, A (CE) EN55024 (CE) ICES-03 C-Tick Solaris Ready VCCI |
UPC 636430048123
EAN 0636430048123
Question: how to connect pstn line
Answer: You can connect a modem to one of the serial ports for dial-up access. We have uploaded the user manual for your convenience, it details the setup and configuration steps.
Question: I am about to request a quotation from our local vendor, but would like confirmation that the RJ45 serial ports are CISCO console compatible (without dongles,or special cables) as they are on some of our older models . thank you for your time
Answer: Thank you for your inquiry,
The Avocent ACS5032-001 is compatible with multiple cisco consoles. Compatibility and connections would depend on which Cisco console you have - for specific device compatibility, I would recommend contacting Avocent Technical Support at 1-888-793-8763.
Question: what is the airflow of this device?
Answer: Thank you for your inquiry,
The Avocent ACS5032 vents exhaust air to the sides. The unit typically consumes 0.15A 18W, and can consume up to a maximum of 0.3A 36W (100-240 VAC @ 50/60 Hz).
If you would like more specific information about Avocent ACS5032 Airflow management, please feel free to contact your KVM Switches Online sales representative directly.
Question: What is the ECCN for ACS5032?
Answer: Thank you for your inquiry,
The ECCN (Export Control Classification Number) for Avocent ACS5032-001 is 5A992.
Question: I need a Test Report for the following ACS5000 series. I know that this has been discontinued but the country we sent this too needs a Test Report. Can you help me.
Answer: Thank you for your inquiry. Unfortunately we do not currently have any testing documents available for this particular product.
Without knowing which specific test report you are looking for, your best bet will be to contact the manufacturer directly via email at support.avocent@vertivco.com or via phone at 1-888-793-8763.
