17" Full HD LED LCD Display with Digital TV
AP-F17-TV
Aspect Ratio: 16:9
Screen Size: 17 in
Model: Aluminum Bezel
Display Features & Benefits
- 17.3" widescreen LCD
- Panel-mount, VESA mount
- Digital TV tuner decodes ATSC signal
- Modern Touch Controls
- Protective 3mm Glass

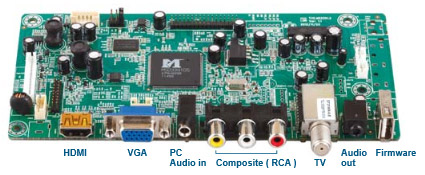

- Standard with HDMI, VGA, RCA, Audio & remote controller
| Mechanical | |
| Height | 13 in. (33.1 cm.) |
| Width | 18.4 in. (46.9 cm.) |
| Depth | 2.2 in. (5.7 cm.) |
| Weight | 11.4 lbs. (5.2 kg.) |
| Package Dimensions (HxDxW) | 24.2 x 4.4 x 20.6 inch (615 x 113 x 523 mm) |
| Package Weight | 17.6 lbs. (8.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 17.3" Widescreen TFT |
| Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 400 |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio (typ) | 600:1 |
| Viewing angle (H/V) | 160° x 140° |
| Active area (mm) | 382 x 215 |
| Signal Input | ATSC DTV, HDMI, VGA, Composite |
