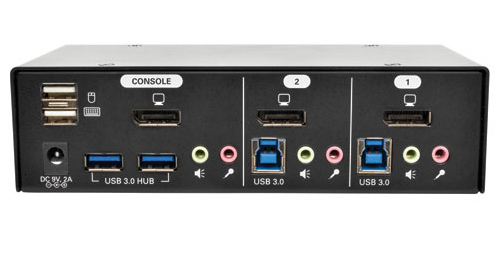

2-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 Hub
B004-DPUA2-K
Save $116.34
Control 2 DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Connect USB 3.0 peripherals, such as hard drives and webcams, and share them between computers.
Features:
Access and Control 2 Computers with One KVM Switch
- Switch between computers using keyboard hotkeys or front-panel buttons
- Built-in DDC emulator sends console monitor's EDID (Extended Display Identification Data) to connected computers for top video quality without delay
- Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Independent Audio Switching
- 3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
- Listen to audio files on one computer while accessing the other computer
- Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
- 2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
- Print documents from one computer while accessing the other computer
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
- Easy to set up with no software or drivers to install
- Supports digital video resolutions up to 2560 x 1600, including 1080p
- Works with Windows, Mac, Linux and Sun
- All necessary cables included
Package Includes:
- B004-DPUA2-K 2-Port DisplayPort KVM Switch
- (2) DisplayPort cables, 4 ft.
- (2) USB 3.0 Type-A to Type-B cables, 4 ft.
- (2) 3.5 mm mini-stereo cables, 4 ft.
- External power supply (Input: 100/240V, 50/60 Hz, 0.5A; Output: 9V, 2A)
- Universal plug adapters (NEMA 1-15P, CEE 7/16, BS1363, and AS3112)
- Owner's manual
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Ports | 2 x KVM / audio / USB 3.0 |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 2560 x 1600 |
| Expansion / Connectivity Interfaces | 2 x DisplayPort input 1 x keyboard (USB) - Type A 2 x USB 3.0 - Type B 1 x DisplayPort output 1 x mouse (USB) - Type A 1 x microphone output - mini-jack 2 x microphone input - mini-jack 2 x headphones input - mini-jack 1 x headphones output - mini-jack 1 x USB 3.0 - Type A |
| Power | |
| Power Device | External power adapter (included) |
| Voltage Required | DC 9v, 2A |
| Warranty | 1 Year Warranty - Sales & Support |
Question: What DisplayPort version does this KVM switch support? 1.1? 1.2? 1.3?
Answer: Thank you for your inquiry,
The B004-DPUA2-K utilizes DisplayPort version 1.2 on the connectors.
Question: Does the B004-DPUA2-K KVM switch support 2560 x 1440 at up to 144 Hz?
Answer: Thank you for your inquiry,
According to the manufacturer of this product, it would not.
You may want to consider the Aten CS1922 which supports the full DisplayPort 1.2 specification including 2560 x 1440 @ 144Hz resolution.
