Adder CATx DisplayPort Computer Access Modules are highly compact devices that allow you to extend your DisplayPort equipped computer over CATX cable up to 1000 feet / 300 meters. The CATX-DP-USBA CAM connects to the DisplayPort video connector plus USB and Audio ports on your computer and then connects via CAT cabling to the AdderView CATx KVM switches or Adder extender receivers (either AdderLink X2 Silver or X200). Your video display, keyboard, mice and speakers are then all linked to the remote device. The module will check during power up the EDID information available from the KVM switch or extender that is connected to the monitor and passes this back to the computer. The CAM supports low speed (1Mb/s) HID USB devices only. This unit also offers 2 channel CD Quality audio that is supported via a 3.5mm jack plug.
The CATX DisplayPort CAM uses USB to pull power from the source host computer, eliminating the need for any separate power supply and thus simplifying installation. The USB cable must be connected to a USB port on the computer that is capable of providing up to 500mA; Power is not taken from the DisplayPort connector.
The CATX-DP-USBA module will check during power up the EDID information available from the KVM switch or extender that is connected to the monitor and passes this back to the computer. This will ensure perfect resolution and availability of each video source during switching.
Adder CATx DisplayPort CAM supports USB HID 1Mb/s (low speed) devices such as standard keyboards and mice.
2 channel CD Quality audio is supported via a 3.5mm jack plug. Note, audio is not available through the display port connector.

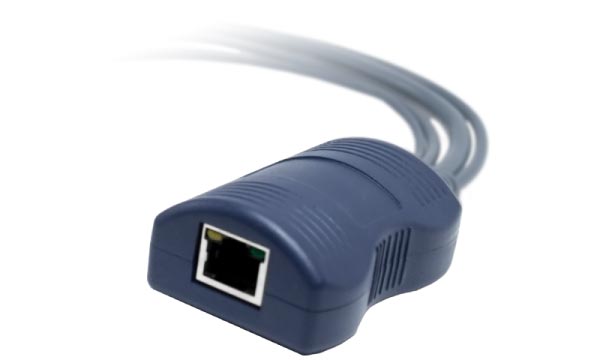

Measuring at only 1 in x 1.75 in x 3 in, and weighing only 100 g, Adder CATx DisplayPort CAM is a compact unit that fits in your palm, and takes 0U at the rack.
Adder CATx CAMs are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
Adder CATx CAMs are designed to be OS-independednt and work with all known software and computer platforms, including Windows, DOS, Linux, Unix, BSD, Sun OS), Mac OS, NetWare, etc.
| Mechanical | |
| Height | 1 in. (25 mm.) |
| Width | 1.75 in. (45 mm.) |
| Depth | 3 in. (75 mm.) |
| Weight | 0.2 lb. (100 g.) |
| Environmental | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Power | |
| Operating Voltage | USB powered device Max 500mA @ 5V |
| O/S Compatibility | Operating system independent |
| Standards | |
| Approved Agency | CE, FCC |
| ECCN (Export Classification Control Number) | EAR99 |
| HTS (Harmonized Tariff Schedule) | 8471.80.10 ('Control or adapter units') |
| Connections | |
| Port | 1 x Display Port; |
Resolution |
|
Max Resolution & Extension | 1920 x 1200 x 60Hz at 200m (650ft) 1280 x 1024 x 60Hz at 300m (1000ft) |
