4-port USB DVI-D KVMP Control Center MultiViewer
CM1164A
Save $37.63
To improve the operational efficiency of intensive monitoring applications, there needs to be a fast and convenient way to view and manage more computers simultaneously, permitting faster response times from a single location. The CM1164 4-port USB DVI-D KVMP Control Center charts a revolutionary new direction in KVM switch functionality by combining a 4-port DVI-D switch with a 2-port USB hub, and providing the following display modes: Quad View mode, which simultaneously displays four digital computers/video sources on a single screen; as well as Picture in Picture mode(Dual, Triple or Quad) and Full Screen mode to meet the demands. In addition, CM1164 provides Daisy Chain Control (DDC) functionality. A (DCC) port allows a user to connect and control up to four CM1164 units via a single console. This enables the use of only one keyboard/mouse over several computers or another CM1164.This is convenient for growing networks that need to monitor and manage more computers - daisy chain up to four units and switch between up to 16 computers. With its unique design and innovative features, the CM1164 4-port USB DVI-D KVMP Control Center is the right solution for a wide range of practical applications, including control rooms, monitoring systems, and traffic control centers - allowing you to switch seamlessly between four DVI-enabled PCs, and share USB peripherals and audio from a multi-view console.
Aten CM1164 Features
- One USB console independently and simultaneously controls four DVI-D computers and two additional USB devices
- Multi-view console controls up to 4 video sources on one screen
- Function control via OSD menu - display mode, port selection, daisy chain, and so on
- Hardware Cursor - OSD navigation via console mouse
- DCC (Daisy Chain Control) port enables users to connect up to four CM1164 units, and use one console keyboard/mouse to manage computers or another CM1164
- Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specification
- Computer selection via front panel push buttons, hotkeys, IR Remote Control and OSD (with mouse* function enabled)
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice***
- Console keyboard emulation /bypass feature that support most multimedia keyboards***
- Independent switching for USB peripheral port, audio function, and KVM switch focus
- Power on detection
- Auto scan feature
- Multiplatform support - Windows, Linux, Mac and Sun
- Keyboard and Mouse support emulation and bypass
- Superior video quality - up to 1920 x 1200 resolution
- Multilingual keyboard mapping-Supports English, Japanese, and French keyboards
- Full bass response provides a rich experience for 2.1 channel audio
- Mac/Sun keyboard support and emulation**
- Upgradeable firmware through computers' USB port
Aten CM1164 Highlights
ATEN Boundless Switching - Intuitive Mouse Switching
ATEN's Boundless Switching is an intuitive way to switch control to another computer by simply moving your mouse across your display or window borders. Unrestricted Switching Direction allows the mouse cursor to move in any direction to switch the control focus without any limitations.

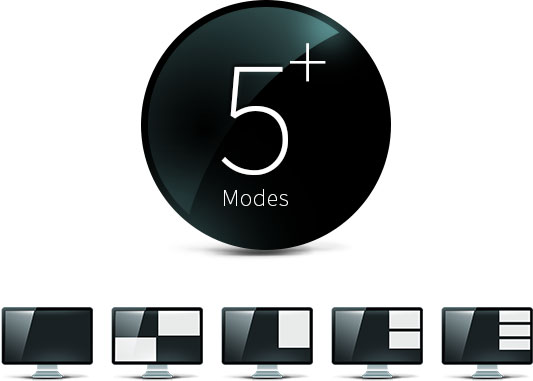

Viewing Modes
The CM1164 can manage four computers on one screen with a variety of display modes: Quad View, Picture in Picture (Dual, Triple or Quad) and Full Screen. The display modes allow you to view four computers in resizable windows that can be clicked for KVM access.
Aten CM1164 Package Contents
- (1) CM1164 4-port USB DVI-D KVMP Control Center
- (4) 1.8m/6ft KVM Cable - DVI-D, USB, Audio
- (1) IEC320 Power Cord
- (1) IR Remote Control
- (1) User Instructions
- (1) Standard Warranty
Aten CM1164 Resources
Aten CM1164 Datasheet (PDF)
Aten CM1164 Manual (PDF)
Aten CM1164 RS232 Serial Manual (PDF)
Aten CM1164 Quick Start (PDF)
Aten CM1164 CAD Drawing (PDF)
Aten CM1164 is also known as Aten CM1164A.
UPC 672792008825
EAN 0672792008825
