ATEN's KVM on the NET

CN-6000

$499.95

Discontinued
Recommended replacement: Adder IPEPS
Alternative options: Contact Us

Download the
CN-6000 Manual (PDF)
ATEN's CN6000 KVM on the NET
ATEN's CN6000 KVM on the NET is an IP implemented KVM solution that allows network administrators to access computers from any station connected to the network, whether from the LAN, WAN, or the Internet. Network administrators can enjoy freedom from being bound to the server room; work from anywhere in the office, remote locations, or even from home! Since ATEN's CN6000 KVM on the NET uses TCP/IP as its communication protocol, network administrators can remotely access attached KVM switches, allowing remote control of the attached servers to perform many tasks with ease and speed, such as installing and running GUI applications, BIOS level troubleshooting, routine monitoring, system maintenance, system administration, and rebooting. It supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java Client. The server can be accessed whether it is down the hall, on the other side of town, or thousands of miles away! Utilizing advanced security technologies, ATEN's CN6000 KVM on the NET provides password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout to make sure that remote access is secure. Also, KVM on the NET offers high resolution (up to 1600 x 1200 @ 60Hz), user-friendly Windows GUI Client Software and Java client software.

ATEN's CN6000 KVM on the NET Features and Benefits:

  • Remotely control your servers via the LAN, WAN, or the Internet
  • Supports 10Base-T, 100Base-T, TCP/IP, and HTTP through the Java Client
  • Works with most KVM switches
  • One price - all software included
  • Sophisticated Administrator software allows setup for network, security, and user management
  • Advanced security features: password protection, advanced encryption technologies, sophisticated user filters and user management, stealth mode and automatic lockout
  • User-friendly client software allows for video adjustment, bandwidth control and mouse synchronization
  • High video resolution: up to 1600 x 1200 @ 60Hz
  • Windows GUI and Java based client software; Java client works with all operating systems
  • Upgradeable firmware
  • Designed for both desktop and rack mount (rack mount kit included)

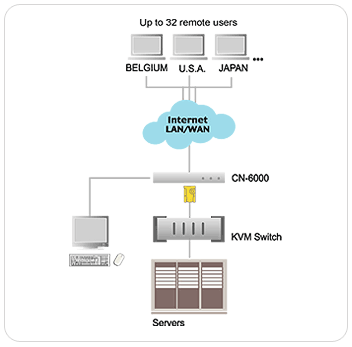

ATEN CN6000 Function Diagram
ATEN's CN6000 KVM on the NET Function Diagram


ATEN's CN6000 KVM on the NET Requirements:

  • PIII 1 GHz or faster processor
  • For the Windows Client, you must have DirectDraw 7.0 or higher installed.
  • The Windows Administrator Utility software, the Windows Client software, the Log Server, and the Java Client software all support Windows 9x, ME, 2000, and XP. Java Client software supports various other operating systems, such as Mac, Solaris, and Linux, etc.
  • For the computer to be accessed by CN6000: Mouse settings for various operating systems are as follows:
  • For Windows XP, set the mouse speed to the middle position and disable Enhance Pointer Precisio
  • For Windows 2000, set the mouse speed to the middle position, and select None for mouse acceleration
  • For Windows NT/98, set the mouse speed to the slowest position
  • For Windows ME, set the mouse to the middle position, and disable mouse acceleration
  • For Redhat Linux, set the mouse threshold to the middle position, and mouse acceleration to the middle position


ATEN's CN6000 KVM on the NET Package Content:
1 x CN6000 unit
1 x Software CD
1 x Power Adapter
1 x PS/2 KVM Cable (4')
1 x Rack Mount Bracket
1 x Quick start guide
1 x User Manual

ATEN's CN6000 KVM on the NET Specifications:

Case CN6000
Width 11.7 in. (29.8 cm)
Height 9.5 in. (24.0 cm)
Length 20.0 in. (50.8 cm)
Case Qty. 5
Package Dimensions
Depth 8.8 in. (22.2 cm)
Width 10.5 in. (26.7 cm)
Height 3.8 in. (9.5 cm)
LEDs
10/100 Mbps 1xOrange/Green
Link 1xGreen
Power On 1xOrange
Console Connectors
Mouse 1x6 in mini-DIN Female (PS/2)
Monitor 1xHDB-15 Female
Keyboard 1x6 in mini-DIN Female (PS/2)
Housing
Case Metal
Weight
Case Wt. 15.4 lb. (6.9 kg)
Package Wt. 3.3 lb. (1.5 kg)
Unit Wt. 1.0 lb. (0.5 kg)
Dimensions
Depth 3.2 in. (8.1 cm)
Width 8.0 in. (20.3 cm)
Height 1.0 in. (2.5 cm)
CPU Connectors
Mouse 1x6 in mini-DIN Female (PS/2)
Keyboard 1x6 in mini-DIN Female (PS/2)
Monitor 1xHDB-15 Male
Maximum color bit depth output 15
Protocols 10Base-T Ethernet; 100Base-T Fast Ethernet; TCP/IP
Encryption SSL2.0, SSL3.0 and TLS1.0 protocol
LAN Connection 1xRJ-45 Female
Reset Switch 1xMomentary Switch
Video Resolution Up to 1600 x 1200 @ 60Hz
Question: what's the default login ?
Answer: Thank you for you inquiry.
Default username: administrator
Default password: password

We have also uploaded the user manual for your convenience.

Question: What's the baud rate for the serial console?
Answer: Thank you for your inquiry. According to ATEN technical support the RS-232 Port is only for PON support to control the PN0108. ATEN also could not specify or locate a baud rate measurement for that port. However if you would like further support based on your application, please feel free to contact your KVM Switches Online sales representative.

Question: Is there a way to set up the kvm without using the cd case serial number?
Answer: Thank you for your inquiry,

There is not, however we can get you a new serial number for your unit. Please email support@aten.com, and tell them "I need a new product serial number for the Atem CN-6000 unit".
