ATEN CS1716AUKIT 16-Port USB-PS/2 KVM with 16 USB Cables
CS1716AUKIT
The ATEN CS1716AUKIT KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single ATEN CS1716AUKIT KVM can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, the ATEN CS1716AUKIT 16-port KVM Switch includes a front panel USB port for each computer to access any peripherals connected to it on a one-at-a-time basis.
The ATEN CS1716AUKIT KVM Features:
- A single console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Video resolution up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)

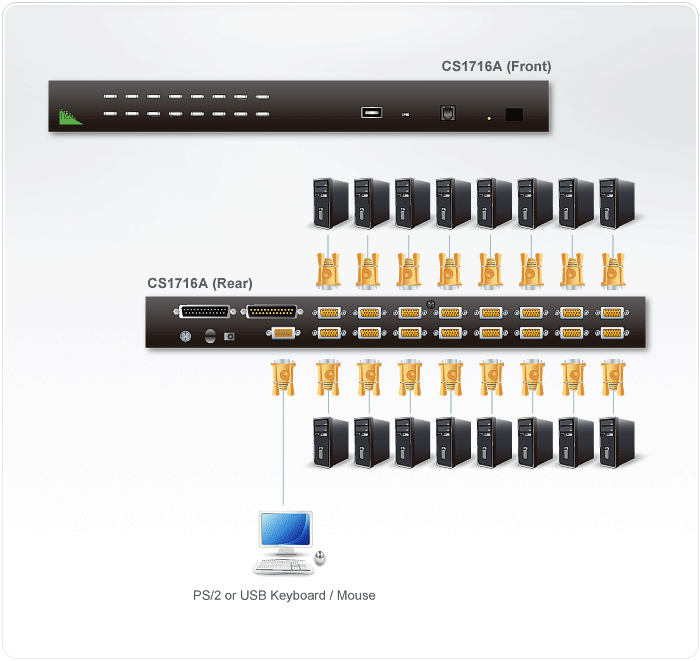

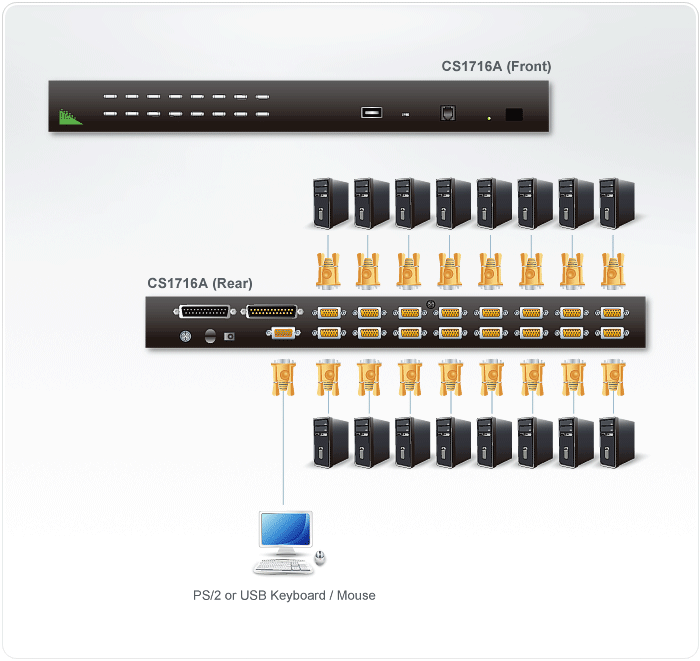

ATEN 16-port PS/2-USB KVMP Switch
(ATEN CS1716A depicted here)
The Aten CS1716AUKIT Requirements:
- Console
- A VGA, SVGA, or Multisync Monitor
- A USB or PS/2 Keyboard & Mouse
- Computers
- A VGA, SVGA, or Multisync graphics card with HDB-15 port.
- PS/2 or USB ports
- Two USB ports required for Virtual Media and USB Keyboard/Mouse operation
The Aten CS1716AUKIT Package Content:
- 1 CS-1716A 16-port KVM Switch
- 4 x 2L5201U 4ft. USB KVM Cable
- 8 x 2L5202U 6 ft, USB KVM Cable
- 4 x 2L5203U 10ft. USB KVM Cable
- 1 Console Cable
- 1 Firmware Upgrade Cable
- 1 Standard Rack Mounting Kit
- 1 Foot Pad set (4 pads)
- 1 Power Adapter
- 1 User Manual
The Aten CS1716AUKIT Specifications:
| Mechanical | Unit | |
| Height | 1.73 in. (4.40 cm.) | |
| Width | 6.3 in. (16.00 cm.) | |
| Depth | 17.05 in. (43.30 cm.) | |
| Weight | 5.86 lbs. (2.66 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| On Line | 8 (Orange) | |
| Selected | 8 (Green) | |
| Station ID | 1 x 2-digit, 7-segment (Orange) | |
| Power | 1 (Dark Green) | |
| Port Selection | OSD, Hotkey, Pushbutton | |
| Video Resolution | 2048 x 1536; DDC2B | |
| Power Consumption | DC 5.3V, 5W | |
| Scan Interval | 1-255 Seconds | |
| Supported Hardware | ||
| Emulation | USB PS/2 keyboard/mouse | |
| Keyboard, Mouse & Monitor | 1 x SPHD-18 | |
| KVM Ports | 8 x SPHD-15 | |
| Firmware Upgrade | 1 x RJ11 | |
| USB Port | 1 x USB Type A | |
| Power | 1 x DC Jack | |
| Standards | ||
| Approved Agency | RoHS | |
UPC 672792503429
EAN 0672792503429
