ATEN 4-Port USB KVMP Switch with Audio Support
CS1734
CS1732 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |
ATEN CS1734 4-Port USB KVMP Switch with Audio Support
ATEN's CS1734 new 4-port KVM and Peripheral Sharing Switch brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support, and multi-platform support for Mac, Sun, USB and PS/2. You can save money and space by eliminating the need for multiple monitors, keyboards, mice, and peripheral devices such as printers, scanners, zip drives, and more. Up to 127 different USB devices can be daisy chained from this KVMP switch. Sharing speakers and a microphone also offers extra value and convenience for the users. USB and KVM technology together makes cross-platform management easy. A single USB console can control PCs, Macs, or even Sun workstations, and share peripherals and audio devices between the computers. Any USB-enabled computers, using any USB-compatible operating system, can benefit from the efficiency, expense reduction and convenience of this switch.
ATEN CS1734 4-Port USB KVMP Switch Features and Benefits: One console controls four computers and two additional USB 1.1 devices Capable of independent (asynchronous) switching of KVM and peripheral USB ports Dual interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel switches or Hotkeys Supports PC, Mac, and Sun systems Superior video quality; 2048 x 1536; DDC2B Fully compliant with USB 1.1 specification Firmware upgradable for life Hi Tech Pure USB KVMP Switch. No PS/2 to USB Conversion! Audio enabled

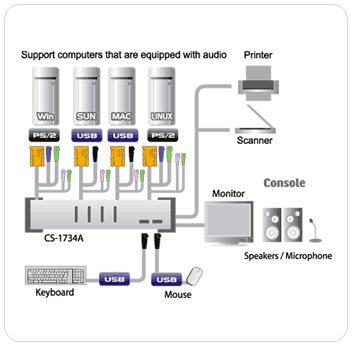

ATEN CS1734 4-Port USB KVMP Switch Function Diagram
ATEN CS1734 4-Port USB KVMP Switch Requirements: Computers with USB or PS/2 connections (additional cables needed for PS/2 computers, USB peripheral ports won't function when use PS/2 cables) Windows 98, 98SE, ME, 2000, XP Mac OS 8.6 or greater Sun Solaris work station Linux, UNIX and other USB supported systems* *Additional drivers and support may be needed
ATEN CS1734 4-Port USB KVMP Switch Package Content:
1 x 4-port KVMP switch 4 x USB KVM bonded cables 1 x quick start guide 1 x user manual 1 x Firmware upgrade cable
ATEN CS1734 4-Port USB KVMP Switch Specifications:
| Case | |
| Width | 15.25 in. (38.74 cm.) |
| Height | 14.50 in. (36.83 cm.) |
| Length | 19 in. (48.26 cm.) |
| Case Qty. | 6 |
| Package Dimensions | |
| Width | 11.25 in. (28.575 cm.) |
| Depth | 7 in. (17.8 cm.) |
| Height | 4 in. (10.16 cm.) |
| Computer Connections | |
| Direct | 4 |
| Emulation | |
| Mouse | USB Plug-n-Play |
| Keyboard | USB Plug-n-Play |
| LEDs | |
| On Line | 4 |
| Selected | 4 |
| USB Peripherals | 4 |
| Console Connectors | |
| Monitor | 1 x HDB-15 Female (Std. VGA/SVGA) |
| Keyboard | 1 x USB Type A |
| Audio | 1 x stereo speaker; 1 x Microphone |
| Flash ROM Upgrade | 1 x RJ11 socket |
| Mouse | 1 x USB Type A |
| Power | |
| Amps | 2.1A |
| Voltage | DC 5V |
| Housing | |
| Case | Metal |
| Weight | |
| Package Wt. | 4.65 lbs. (2.10 kg.) |
| Unit Wt. | 3 lbs. (1.35 kg.) |
| Case Wt. | 32.14 lbs. ( 14.61 kg.) |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 4 x SPDB15 |
| Peripherals | 2 x USB Type A |
| Audio | 4 x stereo speaker; 4 x Microphone |
| Video Resolution | 2048x1536 (Max.); DDC/ DDC2B/ DDC2AB |
| Peripheral Sharing | USB, selected through Hotkeys |
| Power Consumption | Bus powered, power adapter for additional power |
| Humidity | 0 - 80% RH |
| Storage Temperature | -20 - 60 C |
| Scan Interval | 5 sec. |
| Port Selection | Push button, Hot Keys |
| Operating Temperature | 4 - 40 C |
UPC 672792001765
EAN 0672792001765
