4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.

With patented ATEN technology - Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.

Versatile 4K @ 60Hz HDMI KVM Switch with Audio Mixer Mode

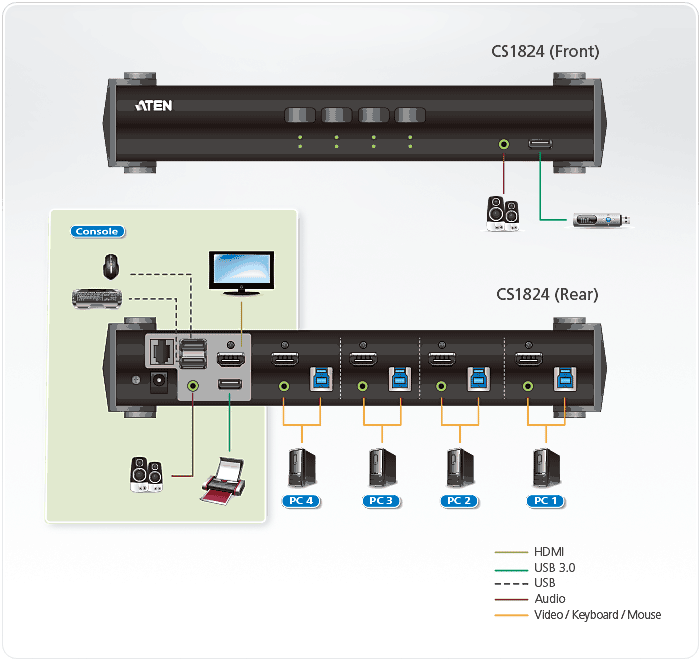

• One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
• Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
• Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio Mixer Modes - mixes up to two audio sources as audio output
• Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
• ATEN default EDID mode - smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
• Independent switching of KVM, USB peripheral, and stereo audio focus2
• HDMI 2.0 compliant; HDCP 2.2 compliant
• Supports HD Audio2
• Power on detection
• Auto Scan Mode for monitoring all computers
• Firmware upgradable

Please note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently

Remarkable Audio/Video Experience

• Superior video quality - 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz
• 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Supports Video DynaSync
• Audio Mixer Modes - mixes up to two audio sources as audio output
• Computer selection via pushbuttons, hotkeys, mouse and RS-232 commands

CS1824 Package Contents

• (1) CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
• (4) HDMI 2.0 Cables
• (4) USB 3.0 Cables
• (4) Audio Cables
• (1) Power Adapter
• (1) User Instructions

CS1824 Resources

Aten CS1824 Brochure (PDF)
Aten CS1824 User Manual (PDF)
Aten CS1824 Quick Start Guide (PDF)
Aten CS1824 CAD Drawings (PDF)

Aten CS1824 Specifications

Mechanical
Dimensions (L x W x H)	10.63 x 3.46 x 2.19 in. (27.00 x 8.80 x 5.55 cm)
Weight	2.07 lb ( 0.94 kg )
Housing	Metal, Plastic
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands
Computer Connections
Computer Connections	4 Ports
Console Ports	2 x USB Type A Female 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports	4 x USB 3.1 Gen1 Type B Female (Blue) 4 x HDMI Female (Black) 4 x 3.5mm Audio Jack Female (Green)
Serial	1 x RJ-11 Female
USB Hub	2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Power	1 x DC Jack
LEDs
On Line /Selected	4 (Orange)
USB Link	4 (Green)
Audio	4 (Green)
Emulation
Keyboard / Mouse	USB
Max Resolution	4096 x 2160 @ 60Hz
Scan Interval	1-99 Seconds (Default: 5 sec.)
Power Consumption	DC5V; 2.535W; 54.5BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing

UPC 672792011177
EAN 0672792011177
