ATEN CS62T 2- Port USB KVM Switch with File Transfer
CS62T
Discontinued
Recommended replacement: IOGEAR MiniView Extreme GCS1732
Alternative options: Contact Us
The ATEN CS62T improves on prior models in the Cable KVM series by combining a 2-port KVM switch with a mouse port that can serve as a USB hub, enabling it to provide USB peripheral sharing and USB file sharing between the connected computers - ideal for syncing files & folders between portable and desktop computers.
Featuring an unbeatable combination of USB peripheral sharing, USB file management, audio support for multimedia and user-friendly operation, the ATEN CS62T offers the utmost in desktop KVM switching functionality.
ATEN CS62T Features:
- One USB console controls two USB interface computers
- USB File Management -transfer files between connected Windows based computers - sync files, folders
- USB mouse port can be used for USB hub and USB peripheral sharing
- Computer selection via hotkeys and mouse*
- Hotkey selection for OS and keyboard language
- Audio-enabled - full bass response for 2.1 surround sound
- Multiplatform support - Windows, Linux, Mac, and Sun
- Compact design, built-in all-in-one cables (2 x 0.9 m)
- Video DynaSyncª - exclusive ATEN technology which eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - automatically switches to the fi rst powered on computer
- Superior video quality - up to 2048 x 1536; DDC2B
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Mac/Sun keyboard support and emulation**
- Auto Scan function to monitor computer operation
- Non-powered
* Mouse port switching is only supported when using a USB 3-key wheel mouse
** 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers

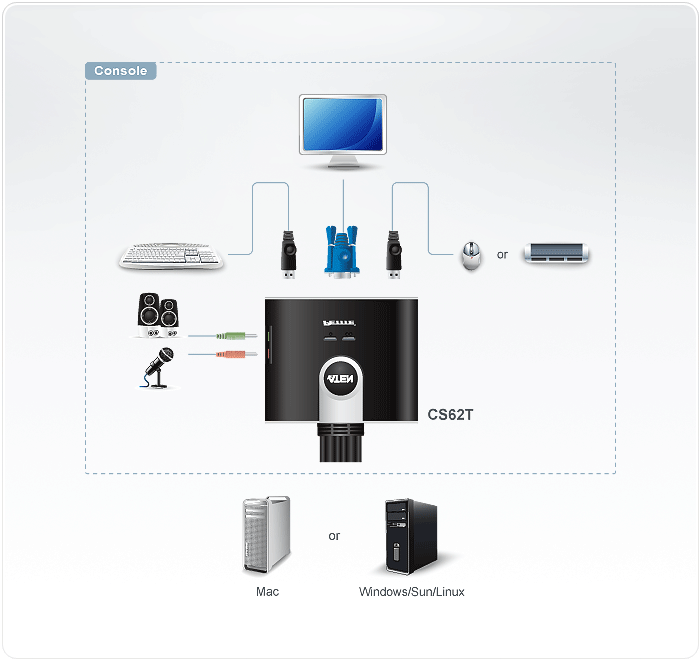

Aten CS62T Diagram
Aten CS62T Requirements:
- Console
- A VGA, SVGA, or multisync monitor
- PS/2 keyboard and mouse
- Computers
- VGA, SVGA, or Multisync capable video port
- 6-pin Mini-DIN (PS/2) keyboard & mouse ports
Aten CS62T Package Content:
- 1 CS-62T USB KVM Switch with File Transfer
- 1 User Manual
Aten CS62T Specifications:
| Mechanical | Unit | |
| Height | 0.99 in. (2.52 cm.) | |
| Width | 2.75 in. (6.99 cm.) | |
| Depth | 3.24 in. (8.24 cm.) | |
| Weight | 0.93 lbs. (0.42 kg.) | |
| Environmental | ||
| Operating Temperature | 32-122 F (0-50 C) | |
| Storage Temperature | -4-140 F (-20-60 C) | |
| Humidity | 0-80% RH, Non-condensing | |
| LEDs | ||
| Selected | 2 (Green) | |
| Port Selection | Hotkey | |
| Video Resolution | 2048x1536; DDC2B | |
| Scan Interval | 3, 5, 10, 20 seconds | |
| Supported Hardware | ||
| Emulation | USB Keyboard/Mouse | |
| Keyboard, Mouse & Monitor | 2 x USB Type A 1 x HDB-15 | |
| Audio | 2 x Mini Stereo Jack (Green) 2 x Mini Stereo Jack (Pink) | |
| KVM Ports | 4 x USB Type A 2 x HDB-15 2 x Mini Stereo Jack (Green) 2 x Mini Stereo Jack (Pink) | |
| KVM Ports | 4 x USB Type A 2 x HDB-15 2 x Mini Stereo Jack (Green) 2 x Mini Stereo Jack (Pink) | |
| Standards | ||
| Approved Agency | RoHS | |
