Aten Sun USB Adapter, KVM to USB Sun
CV131A
ATEN Sun USB Console Adapter (CV131A)
ATEN's CV131A is an interface converter that translates PS/2 keyboard, mouse and monitor signals to a USB SUN workstation's keyboard, mouse and monitor signals. The CV131A fully supports ATEN's existing MasterView KVM switches with the SPHD15 connector. When used with a KVM switch, you may control IBM PS/2 PCs, Mac computers and Sun Stations from one keyboard, mouse and monitor.
ATEN Sun USB Console Adapter (CV131A) Features and Benefits:
- Console and PC cables molded in
- Translates PS/2 keyboard, mouse and VGA signals to SUN USB keyboard, mouse and monitor signals
- Compatible with ATEN's SPHD(Special High Density) equipped KVM switches
- Compatible with SUN USB system
- Composite sync video support
- Keyboard language selection via simple hotkeys
- Supports PS/2 mice and Microsoft Intellimouse
- Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900

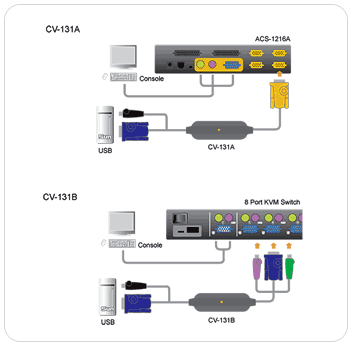

ATEN Sun USB Console Adapter (CV131A) Function Diagram
ATEN Sun USB Console Adapter (CV131A) Requirements:
Sun Blade Server 2000/100 (Sun Solaris 8) ATEN KVM with
ATEN Sun USB Console Adapter (CV131A) Package Content:
1 x CV131A USB Sun Converter
1 x User Manual
ATEN Sun USB Console Adapter (CV131A) Specifications:
| Case | |
| Case Qty. | 20 |
| Package Dimensions | |
| Height | 2.5 in. (6.4 cm) |
| Depth | 6.5 in. (16.5 cm) |
| Width | 9.5 in. (24.1 cm) |
| LEDs | |
| Power On | 1 x Orange |
| Console Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD15 (M) |
| Housing | |
| Case | Plastic |
| Weight | |
| Case Wt. | 23.3 lb. (10.5 kg) |
| Package Wt. | 1.5 lb. (0.7 kg) |
| CPU Connectors | |
| Keyboard & Mouse | 1 x USB Type B |
| Monitor | 1 x HDB15 VGA (M) |
| Data Rate | 12 Mbps |
