Gefen DVI Over Fiber Extender
EXT-DVI-1500HD
The Gefen EXT-DVI-1500HD is a DVI Extender which allows a single link video signal to be extended over long distances by using multimode LC-LC fiber optic cable. Fiber Optics technology allows the EXT-DVI-1500HD to carry video signals over long distances by using multimode LC-LC fiber optic cable. Fiber Optics technology allows the DVI to carry video signals over long distances that would not be possible with traditional CAT5 extension. The use of fiber optic cabling protects the video signal from electromagnetic interference (EMI) which can degrade the video signal.
How It Works
The EXT-DVI-1500S sender unit sits next to your computer, set-top box or DVD player source. Cables supplied with the EXT-DVI-1500 connect your DVI source to the send unit. The EXT-DVI-1500R receive unit sits next to your DVI display - up to 1640 feet (330 feet with HDCP) away. The display plugs into the back of the EXT-DVI-1500R receiver unit. One CAT-5 cable and a multi mode LC fiber optic cable (4 strand) connect the EXT-DVI-1500S and the EXT-DVI-1500R units to each other.
UPC 845344060644
EAN 0845344060644
How It Works
The EXT-DVI-1500S sender unit sits next to your computer, set-top box or DVD player source. Cables supplied with the EXT-DVI-1500 connect your DVI source to the send unit. The EXT-DVI-1500R receive unit sits next to your DVI display - up to 1640 feet (330 feet with HDCP) away. The display plugs into the back of the EXT-DVI-1500R receiver unit. One CAT-5 cable and a multi mode LC fiber optic cable (4 strand) connect the EXT-DVI-1500S and the EXT-DVI-1500R units to each other.

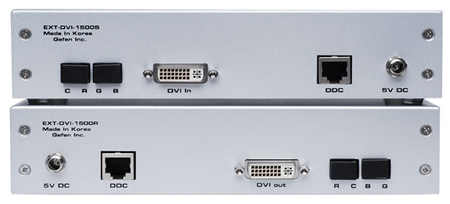

Gefen EXT-DVI-1500HD Back Views
Gefen EXT-DVI-1500HD Features:
- Extends any DVI (digital visual interface) compliant device up to 1640 feet/500 meters (330 feet with HDCP) from the computer
- Uses a four-strand multimode LC-LC fiber optic cable for video signals\
- Uses one CAT-5 cable for DDC and control signals
- Eliminates computer noise where you work
- Supports resolutions up to 1080p, 2K, and 1920 x 1200
- Supports DDWG standard for DVI compliant monitors
- HDCP compliant
Included in the package:
- (1) DVI 1500S Sender unit
- (1) DVI 1500R Receiver unit
- (2) 5V DC Power Supply
- (1) 6 ft DVI cable (M-M)
- (1) User's Manual

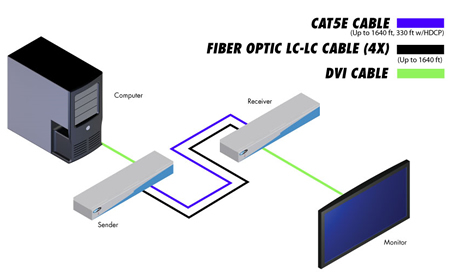

Gefen DVI over Fiber Extender Wiring Diagram
Gefen EXT-DVI-1500HD Specifications:
| Mechanical | |
| Height | 1.8 in. (4.6 cm.) |
| Width | 8.5 in. (21.6 cm.) |
| Depth | 4.4 in. (11.2 cm.) |
| Shipping Weight | 5 lbs. (2.3 kg ) |
| Rack Mount | 1U rack space |
| Input Signal | |
| Video | 1.2 Volts p-p |
| DDC | 5 Volts p-p (TTL) |
| Link Connector | |
| Video Link Connector | LC |
| DDC Link Connector | RJ-45 Shielded |
| Power | |
| Power Supply | 5V DC with locking connector |
| Power Consumption | 36 watts (max) |
| Video Amplifier Bandwidth | 165 MHz |
| DVI Connector | DVI-D (19 pin) female |
