Booster for HDMI with HDMI EDID Detective Plus

 The Gefen Booster for HDMI with EDID Detective extends HDMI up to 150 feet (45 meters) at 1080p Full HD and up to 115 feet (35 meters) at 4K Ultra HD and 4K Cinema resolutions, using standard copper HDMI cables. HD and Ultra HD displays use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. Using the Gefen Syner-Gª software, the installer can also modify the EDID data to meet installation-specific requirements and resolve system-level compatibility issues. This Gefen Booster-Detective has been designed for quick and easy programming and installation

 To program the EDID, connect the included HDMI cable from the booster to the HDMI input of the display. Connect the included power supply to the booster and plug the power cord into an available electrical outlet. Disable the Write Protect Switch, set the DIP switches to the appropriate positions, and press the Program button. Once the EDID programming is completed, the display and power supply can be disconnected without losing the recorded EDID. If a suitable EDID cannot be recorded, there are six pre-programmed EDID profiles and six user-programmable EDID banks that can be used. Instructions for selecting one of the pre-programmed EDID profiles and for copying/uploading additional EDIDs are outlined in the user's manual. Connect an HDMI cable, up to the recommended maximum cable length, from the Hi-Def source to the HDMI input on the booster. Re-connect the included DC power supply and plug the power cord into an available electrical outlet. Power on the source and the display and a pristine Ultra High Definition picture will appear.

 Features:

• Extends copper HDMI cables up to 115 feet (35 meters) at 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0 or 30 Hz 4:4:4), and 4K Cinema (DCI, @ 24 or 30 Hz 4:4:4)
• Extends copper HDMI cables up to 150 feet (45 meters) at 1080p Full HD
• Supported resolutions include 4K Ultra HD, 4K Cinema, 1080p Full HD, and 2048 x 1536 (QXGA)
• HDMI Features Supported:
  • HDMI 2.0
  • HDCP
  • 12-bit Deep Color
  • LPCM 7.1 audio, Dolby¨ TrueHD, Dolby Digital¨ Plus,and DTS-HD¨ Master Audioª
  • 3DTV pass-through
  • Lip-Sync pass-through
  • CEC pass-through
• USB port for advanced programming of features such as video equalization, pre-emphasis, and EDID management
• Configurable EDID using Gefen Syner-Gª software suite, downloadable from Gefen website.
• DDC Re-clocking
• EQ adjustment for best results with varying cable types and lengths
• Can record the EDID from a display
• 6 pre-programmed EDID profiles
• 6 user-programmable EDID banks for copying/uploading EDIDs
• Selectable HDCP pass-through
• Field updatable firmware via USB port
• Compact and portable

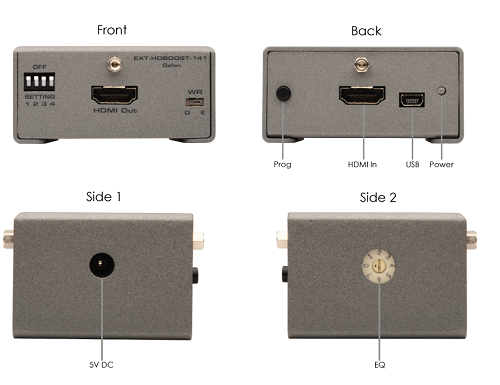

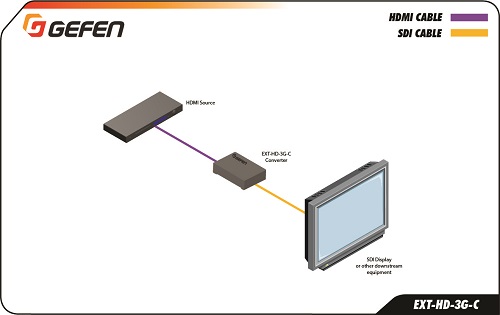

Diagram

Specifications:

• Maximum Pixel Clock:150 MHz
• Maximum TMDS Clock: 225 MHz
• Video Input Connector: (1) HDMI Type A 19-pin, female, locking
• Video Output Connector: (1) SDI BNC-type, female
• USB Connector: (1) Mini-B
• Configuration Switches: (3) DIP-type
• HDMI Indicator: (1) LED, green
• Power Indicator: (1) LED, blue
• Power Supply Connector: (1) 3-pin, locking
• Power Supply: 12V DC nominal (6V to 24V DC operating range)
• Power Consumption): 3W maximum
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -4 to +185 °F (-20 to +85 °C)
• Storage Humidity: 0% to 95% RH, non-condensing
• MTBF: 50000 hours
• Dimensions (excluding connectors, W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
• Net Unit Weight: 0.3 lbs (0.15 kg)

UPC 845344042626
EAN 0845344042626
