Gefen 1:4 HDMI 1.3 Splitter w/ 2.25 GHz Amplifier
EXT-HDMI1.3-144
The Gefen EXT-HDMI1.3-144 is a 1x4 HDMI splitter which allows set-top boxes, DVD players, D-VHS players and other HDTV devices with HDMI output to be connected to four or more HDTV displays.
How the Gefen HDMI Splitter works:
Gefen's 1x4 HDMI splitter is a distribution hub that sends the same video output to four or more HDTV digital displays. It is a flexible solution that accommodates multiple displays. When two or more HDMI splitters are connected together, they can be used to create a larger distribution. The HDMI splitter is connected using a HDMI cable from the HDMI source to the HDMI splitter input. There are four HDMI outputs. HDMI output 1 is the primary connection and is used for the main display. Outputs two, three and four follow the main display.
Note: This HDMI product supports BOTH Audio and Video signals.
Gefe EXT-HDMI1.3-144 HDMI Splitter Backside
Gefen HDMI Splitter Features:
- Connects up to four HDMI / DVI displays at the same time to one video source
- Allows simultaneous display
- Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
- HDMI 1.3 Compliant
- HDMI compliant
- HDCP compliant

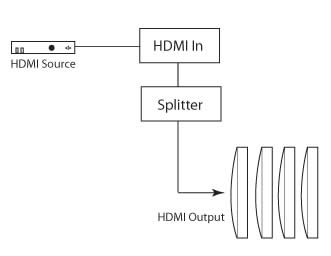

Gefen 1x4 HDMI Splitter Wiring Diagram
Package Includes:
- 1x4 HDMI splitter
- (1) 5v Power Supply
- (1) 6ft cable
- User's Manual
Gefen EXT-HDMI1.3-144 Specifications:
| Mechanical | |
| Height | 1.25 in. (3.18 cm.) |
| Width | 12 in. (30 cm.) |
| Depth | 4.25 in. (10.80 cm.) |
| Shipping Weight | 5 lbs. (2 kg.) |
| Power | |
| Supply | 5VDC |
| Consumption | 10 watts (max) |
| Input Signal | |
| Video | 1.2 volts p-p |
| DDC | 5 volts p-p (TTL) |
| Video Amplifier Bandwidth | 2.25 GHz |
| Single Link Range | 1080p/60 10 bit color depth, 1920x1200 |
| HDMI Connector | type A 19 pin female |
UPC 845344062631
EAN 0845344062631
