Gefen Mini USB2 KVM Extender

The Gefen Mini USB-2 Extender allows the extension of any USB 1.1 device up to 150 feet (45 meters). The Receiver comes with a 2-port USB HUB. This extender exceeds the 16-feet distance limitation of USB extension by using Extreme USB technology to extend USB up to 150 feet (45 meters) away from the computer. This solution is ideal for applications where two USB devices, such as a keyboard and mouse, must be operated remotely but is also useful with most other USB-based devices.

How it Works
Connect the Sender unit to the USB source using the included USB cable. Place the Receiver unit up to 150 feet (45 meters) away from the USB source. Use a single CAT-5e cable to connect the Sender unit to the Receiver unit. Connect up to two USB devices to the Receiver unit.

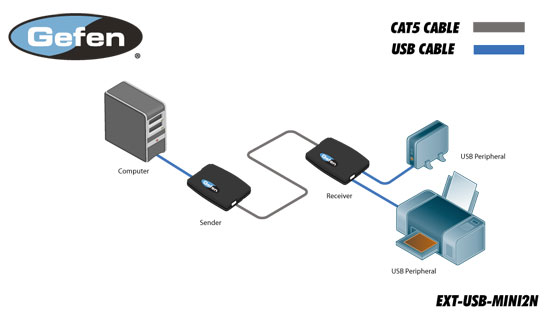

Gefen Mini USB-2 Extender Application Diagram

Gefen EXT-USB-MINI2N Features:

• Extends any USB 1.1 device up to 150 feet (45 meters) using one CAT-5e cable
• Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB device
• Provides two USB outputs
• Supports Windows XP, Windows Vista, Windows 7, Linux, and Mac OSX operating systems
• Requires no external power adapter, powered by the USB bus

Gefen EXT-USB-MINI2N Specifications:

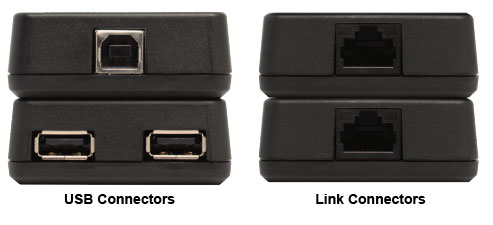

• USB Connector (Sender): (1) USB Type B, female
• USB Connector (Receiver): (2) USB Type A, female
• Link Connectors (Sender/Receiver): (1) RJ-45
• USB Current Output: Up to 400mA per USB device (as long as the host can provide 800mA or more)
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Dimensions (W x H x D) (Sender/Receiver): 3.5" x 0.9" x 2.2" (85mm x 22mm x 55mm)
• Shipping Weight: 1 lb (0.45 kg)

Gefen EXT-USB-MINI2N Package Includes:

• (1) Mini USB-2 Extender (Sender Unit) (EXT-USB-MINI2NS)
• (1) Mini USB-2 Extender (Receiver Unit) (EXT-USB-MINI2NR)
• (1) 6 ft. USB Cable (A-B) (CAB-USB-6-O)
• (1) Quick-Start Guide (QSG-USB-MINI2N)

This is the direct replacement for the Gefen EXT-USB-MINI2
