Icron Ranger 2211 - USB 2.0 CAT5e Extender (330 ft)
00-00315
Discontinued
Replaced by: Icron Ranger 2311
Alternative options: Contact Us
The Icron USB Ranger 2211 (00-00315) supplies better USB performance and USB device support, allowing users to extend USB 2.0 connections up to 330 ft (100m) over a single Cat 5e cable.
The USB Ranger 2211 uses patented technology ideal for extending USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
With flexible powering, power can be applied to the local extender or remote extender, allowing installers to carry one product for two types of installations; one requiring power next to the host and one requiring power at the remote location.
Additionally, the extension system is ideal for use with USB peripherals including: All USB device types from keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB Ranger 2211 is ideal for classrooms, corporate board rooms, and factory floor automation.

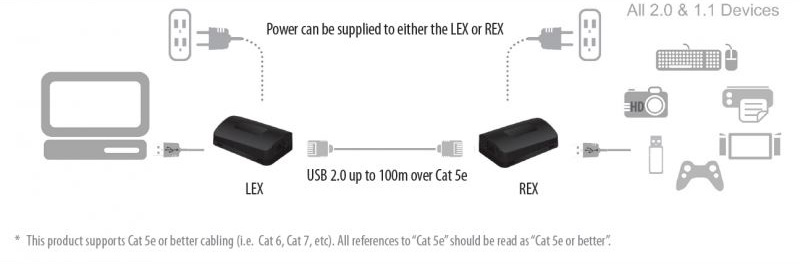

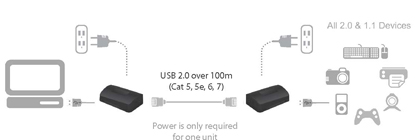

Icron USB 2.0 Ranger 2211 Application Diagram
Icron USB 2.0 Ranger 2211 Features
- Ability to provide power at either the local extender or remote extender. Power is delivered over the Cat 5e cable
- Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
- Operates with USB 1.1 and USB 2.0 hosts
- Supports all USB devices up to 480Mbps
- Uses a standard solid core Cat 5e cable for easy installation
- Number of devices can be increased using additional USB hubs
- Two year warranty
- ExtremeUSB suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all operating systems: Windows, Mac OS X, and Linux
Ranger 2211 (00-00315) Package Contents
- (1) Icron USB 2.0 Ranger 2211 Transmitter (LEX)
- (1) Icron USB 2.0 Ranger 2211 Receiver (REX)
- (1) 6ft / 2 meter USB 2.0 Cable
- (1) Power Adapter and US-specific Power Cord
- (1) Quick Start Guide
- (1) 1-Year Standard Warranty
Ranger 2211 Resources
Icron Ranger 2211 Datasheet (PDF)
Icron Ranger 2211 Manual (PDF)
Icron Ranger 2211 Quick Start Guide (PDF)
Icron Ranger 2211 (00-00315) Specifications
| Mechanical | |
| Local Extender | 3.35″ x 1.10″ x 2.25″ (85mm x 28mm x 57mm) |
| Remote Extender | 3.35″ x 1.10″ x 2.25″ (85mm x 28mm x 57mm) |
| Environmental | |
| Operating Temperature | 32蚌 to 122蚌 (0蚓 to 50蚓) |
| Local Extender | |
| LEX unit USB Connector | 1 x USB Type B Receptacle |
| LEX unit Link Connector | 1 x RJ45 |
| Mounting | 2 mounting slots on each side |
| Remote Extender | |
| REX unit USB Connector | 1 x USB Type A Receptacle |
| REX unit Link Connector | 1 x RJ45 |
| Maximum current available at REX | 500mA |
| Mounting | 2 mounting slots on each side |
| Certifications | |
| EMC | FCC (Class A), CE (Class A) |
| Compliance | RoHS2 (CE) |
| Flammability | V-0 |
