CyberView Full HD LCD Console Drawer w/ Mac Keyboard - Trackball
F117MB
The F117mb is a 1U Rackmount Mac LCD Console Drawer with Trackball. This rackmount LCD console has features such as adjustable brackets and short-depth design.

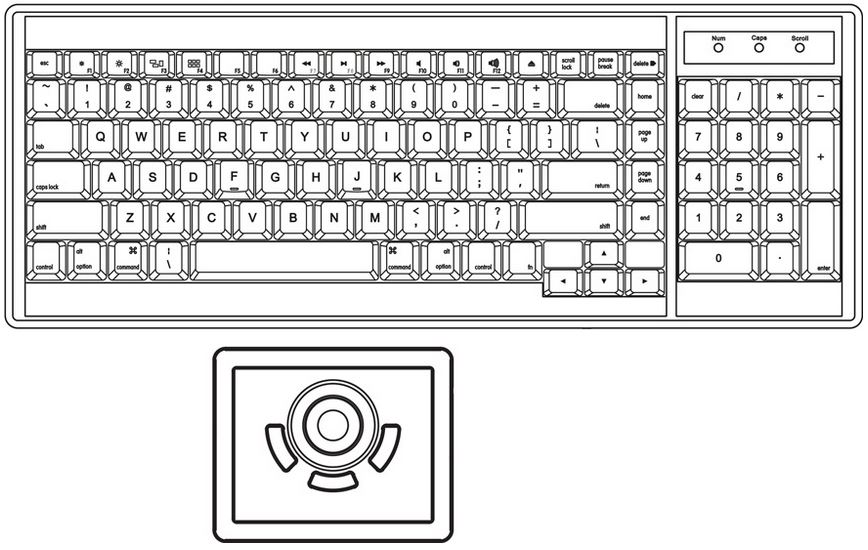

The F117mb Keyboard
AH F117mb LCD Console Benefits
- 1U 17" widescreen LCD console drawer with VGA and DVI-D
- Support Full HD with 1080p resolution
- 104-key Mac keyboard with trackball
- New enhanced aesthetics with molded front handle
- Short depth design of 480mm ( 18.9" ) only
- 2 post rack mounting available
AH F117mb Specifications:
LCD Panel | |
Size | 17.3" widescreen TFT |
Max Resolution | 1920 x 1080 |
Brightness | 400 (cd/m2) |
Backlight | LED |
Colors | 16.7 M, 8-bit |
Contrast Ratio | 600 : 1 |
Viewing Angle | 160° x 140 ° |
Active Area | 382 x 215 |
MTBF | 50,000 |
Signal Output | VGA or DVI-D |
Environmental | |
Operating Temperature | 32 to 131°F (0-55°C) |
Storage Temperature | -4 to 140°F (-20-60°C) |
Operating Humidity | 20~90%, non-condensing |
Storage Humidity | 5~90%, non-condensing |
Operating Altitude | 16,000 ft. |
Shock | 10G acceleration (11ms duration) |
Vibration | 5~500Hz 1G RMS random vibration |
Mechanical | |
Height | 1.73 in. (44mm) |
Width | 17.4 in. (441.6mm) |
Depth | 18.9 in. (480mm) |
Weight | 24 lbs. (10.8kg) |
Power | |
Power Input | Auto-sensing 100 to 240VAC, 50/60Hz |
Power Consumption | Max. 25W |
Regulatory | |
Safety | FCC, CE |
Environmental | RoHS2, REACH |
