CyberView Full HD LCD Console Drawer w/ Mac Keyboard - Touchpad
F117ME
The F117me is a 1U Rackmount Mac LCD Console Drawer with Touchpad. This rackmount LCD console has features such as adjustable brackets and short-depth design.

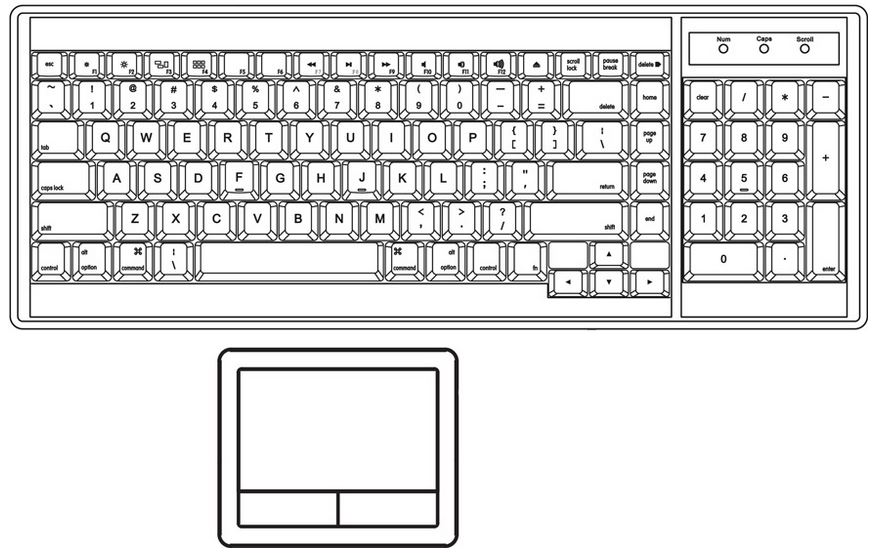

The F117me Keyboard
AH F117me LCD Console Benefits
- 1U 17" widescreen LCD console drawer with VGA and DVI-D
- Support Full HD with 1080p resolution
- 104-key Mac keyboard with touchpad
- New enhanced aesthetics with molded front handle
- Short depth design of 480mm ( 18.9" ) only
- 2 post rack mounting available
AH F117me Specifications:
| LCD Panel | |
| Size | 17.3" widescreen TFT |
| Max Resolution | 1920 x 1080 |
| Brightness | 400 (cd/m2) |
| Backlight | LED |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio | 600 : 1 |
| Viewing Angle | 160° x 140 ° |
| Active Area | 382 x 215 |
| MTBF | 50,000 |
| Signal Output | VGA or DVI-D |
| Environmental | |
| Operating Temperature | 32 to 131°F (0-55°C) |
| Storage Temperature | -4 to 140°F (-20-60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft. |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Mechanical | |
| Height | 1.73 in. (44mm) |
| Width | 17.4 in. (441.6mm) |
| Depth | 18.9 in. (480mm) |
| Weight | 24 lbs. (10.8kg) |
| Power | |
| Power Input | Auto-sensing 100 to 240VAC, 50/60Hz |
| Power Consumption | Max. 25W |
| Regulatory | |
| Safety | FCC, CE |
| Environmental | RoHS2, REACH |
Question: Is the Mac compatible trackpad "multitouch" like the Apple one is (supports gestures)?
Answer: Thank you for your inquiry,
The Touchpad in the CyberView F117 is not currently capable of "Multi-touch Gesturing".
That being said, you can integrate an optional 10-point Multi-touch Touch-screen into the unit which both supports Mac OS. You can add this option using the "Touchscreen Option" dropdown above.
You can also simply connect a touchpad mouse capable of multi-touch through the optional USB Hub port with the dropdown option "Front USB Port" above.
Please let us know if there is anything else we can help you with!
Answer: Thank you for your inquiry,
The Touchpad in the CyberView F117 is not currently capable of "Multi-touch Gesturing".
That being said, you can integrate an optional 10-point Multi-touch Touch-screen into the unit which both supports Mac OS. You can add this option using the "Touchscreen Option" dropdown above.
You can also simply connect a touchpad mouse capable of multi-touch through the optional USB Hub port with the dropdown option "Front USB Port" above.
Please let us know if there is anything else we can help you with!
