1U 21" 1080p LCD Drawer w/ 8 Port IP VGA KVM
F121-IP802
Save $330.00
Model: With Standard KVM
F121 models with Integrated KVM Switch (Contact us for pricing / availability)
 Matrix CAT6 KVM | Local User | Extended | IP | 8-Port | 16-Port | 32-Port |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | - | F121-MUIP1613 | F121-MUIP3213 | |
| 1 | 1 | 2 | - | F121-MUIP1624 | F121-MUIP3224 | |
| 1 | 1 | 0 | - | F121-MU1602 | F121-MU3202 | |
| 1 | 2 | 0 | - | F121-MU1603 | F121-MU3203 | |
| 1 | 3 | 0 | - | F121-MU1604 | F121-MU3204 |
 CAT6 KVM | Local User | Extended | IP | 8-Port | 16-Port | 32-Port |
|---|---|---|---|---|---|---|
| 1 | 0 | 1 | F121-UIP802 | F121-UIP1602 | F121-UIP3202 | |
| 1 | 1 | 0 | F121-U802 | F121-U1602 | F121-U3202 | |
| 1 | 0 | 0 | F121-U801 | F121-U1601 | F121-U3201 |
 DVI-D KVM | Local User | Extended | IP | 12-Port |
|---|---|---|---|---|
| 1 | 0 | 0 | F121-1201D |
 Matrix VGA DB-15 KVM | Local User | Extended | IP | 8-Port | 16-Port | 32-Port |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | F121-MIP813 | F121-MIP1613 | - | |
| 1 | 1 | 2 | F121-MIP824 | F121-MIP1624 | - | |
| 1 | 1 | 0 | F121-M802 | F121-M1602 | - | |
| 1 | 2 | 0 | F121-M803 | F121-M1603 | - | |
| 1 | 3 | 0 | F121-M804 | F121-M1604 | - |
 VGA DB-15 KVM | Local User | Extended | IP | 8-Port | 16-Port | 32-Port |
|---|---|---|---|---|---|---|
| 1 | 0 | 1 | F121-IP802 | F121-IP1602 | - | |
| 1 | 1 | 0 | F121-802 | F121-1602 | - | |
| 1 | 0 | 0 | F121-S801 | F121-S1601 | - |
 VGA DB-15 KVM with USB Hub | Local User | Extended | IP | 8-Port | 16-Port | 32-Port |
|---|---|---|---|---|---|---|
| 1 | 0 | 1 | F121-IP802H | F121-IP1602H | - | |
| 1 | 1 | 0 | F121-802H | F121-1602H | - | |
| 1 | 0 | 0 | F121-801H | F121-1601H | - |
Ports: 8
Users: 1 Local + 1 IP
USB Hub: No
The newest CyberView Rackmount LCD monitor F121 series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView F121 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the F121 allows the user to be positioned facing the wall comfortably rather than snugged up against it.
Features and Benefits
- 1U 21" widescreen LCD console drawer w/ 8 Port VGA KVM and IP Access
- Support Full HD with 1080p resolution

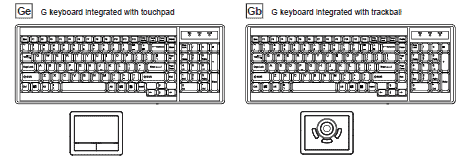

- 104-key keyboard with either touchpad or trackball options
- SUN Micro and Mac keyboard options available
- New enhanced aesthetics with molded front handle
- Modular for a highly customizable rack console - integrated KVM, peripherals & more
- Combo interface for PS/2 or USB input
Optional Configurations (Call for availability)
- HDMI signal Input
- SDI signal input
- 12, 24, 48, 110, 125 V DC Power
- Additional languages supported
- Multiple Integrated KVM Options
Cyberview F121 Specifications
| Mechanical | |
| Height | 1.73 in (44 mm) |
| Width | 17.4 in (441.6 mm) |
| Depth | 30.3 in (770 mm) |
| Form Factor | 1U rackmount on slide out rails |
| Weight | 34.1 lbs. (15.5 kg) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0° to 50°C) |
| Storage Temperature | 23 to 140°F (-5° to 60°C) |
| Relative Humidity | 5-90% Non-Condensing |
| Shock | 10G Acceleration (11 ms duration) |
| Vibration | 5-500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Screen On: 62W; PowerSave: 34W |
| LCD Display | |
| Diagonal Size | 21.5" Widescreen TFT |
| Max Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 250 |
| Color Support | 16.7 M |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170° x 160° |
| Display Area | 477 x 268 mm |
| Console Port | VGA |
