Secure Quad-Monitor 4 Port KVM Switch, 4K DisplayPort / DVI
F1DN104Q
Belkin F1DN104Q is a 4 Port, Secure, Quad-Display KVM Switch, offering a unique solution combining DVI-I and DisplayPort for users with multiple display requirements; switch four screens, a keyboard and mouse, audio and a CAC reader between up to four desktops or servers. The Belkin Secure DP KVM series is fully compatible with both 1.1 and 1.2 DisplayPort protocols; supporting resolutions up to UHD 3840_2160 @ 30Hz. True data path isolation for workstations in a highly secure environment provides the ultimate secure solution for government agencies. In order to assure the highest level of protection the Belkin Secure DisplayPort KVM is Common Criteria Validated to EAL4+.

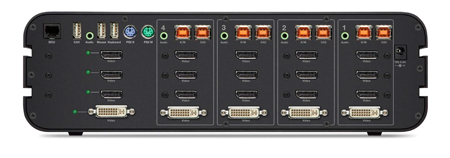

Belkin F1DN104Q Rear
Belkin Secure DisplayPort KVM Features:
- Future Proof: Fully compatible with both 1.1 and 1.2 DisplayPort protocols, supporting resolutions up to 3840x2160 @ 30Hz and 17.28 Gbit/s transfer @ 4-lane Link.
- Protected DisplayPort Channel Switching: The Belkin Secure DisplayPort KVM switch includes security mechanisms to protect DisplayPort channels, preventing leakage of information between connected computers and the display(s).
- Increased Reliability: Using a unique anti-tampering battery with an extremely low self-discharge rate, the life expectancy of the switch has been increased dramatically to over 15 years.
- The Ultimate Security Solution: A host of security features including Unidirectional Data Paths, Dedicated Processors for Emulation, No Shared Resources and USB Port Protection. The Belkin Secure DisplayPort KVM is Common Criteria validated to EAL 4+ (Evaluation Assurance Level 4). The product also complies with NIAP Protection Profile 2.2.
- Package Contents: Belkin Advanced Secure DisplayPort KVM, 12V 1.5A DC Power Supply (F1DN104P), 12V 3A DC Power Supply (F1DN104W, F1DN104Q), Interchangeable Port Color Chips, Port-Naming Labels, User Manual
Note: Due to USB and Display Port signal limitations, the cable length cannot exceed 15 feet (4.6m), unless active extenders are used.
Belkin F1DN104Q Specifications:
| Physical | |
| Dimensions (W x H x L) | 12.5 x 3.8 x 6.4 inches |
| Weight | 5.85 Lbs. |
| Made In | USA |
| Enclosure | Heavy-duty extruded aluminum enclosure with metal faceplate |
| General | |
| No. of Computers (ports) | 4 |
| No. of Displays | 4 (3 DisplayPort, 1 DVI) |
| Max. Resolution | DP: 3840 x 2160 @ 30 Hz DVI-I Dual-Link: 2560 x 1600 |
| Switching Control | Port Selection Buttons, Desktop Controller Unit (DCU) |
| Emulation | Protected DDC/EDID |
| Security Accreditation | Common Criteria EAL 4+ ALC_FLR.3 |
| Warranty | 3 years |
| Product Life-Cycle | 15 years |
| Console Ports | |
| Video | (3) DisplayPort 1.2, (1) DVI-I |
| Keyboard & Mouse | (2) USB-A + (2) PS2 - either can be used |
| Audio | 3.5mm |
| Common Access Card (CAC) | (1) USB type A |
| Desktop Controller Unit (DCU) | Allows you to connect an optional DCU (sold separately) device to control your KVM switch from 50 feet away. |
| Server Interface Ports | |
| Video | (12) DisplayPort 1.2, (3) DVI-I |
| Keyboard & Mouse | (4) USB type B |
| Audio | 3.5mm |
| Common Access Card (CAC) | (4) USB type B |
| Power & Environmental | |
| Power | External 100-240VAC, 50/60Hz |
| Consumption | 3A (Max) |
| Operating Temp. | 32 to 104F (0 to 40 C) |
| Storage Temp. | -4 to 140F (-20 to 60 C) |
| Humidity | 0 to 80% RH (No Condensation) |
Answer: Thank you for your inquiry. Compatible Desktop Controller Units are F1DN001R and F1DN002R.
Question: their data sheet states that 4k is @30Hz not 60
Answer: Thank you. We will update the specifications on this page.
Question: What's the ECCN & Schedule B?
Answer: Thank you for your inquiry,
See below for export information for the Belkin F1DN104Q:
ECCN: EAR99
HS / HTS: 8471.80.1000
Apologies for the delay while we confirmed this information with the vendor.
Please let us know if there is anything else we can ever help you with!
