SmartAVI SM-DPN-4Q-S - 4 Port Quad Monitor DisplayPort KVM w/ 2x USB Peripheral Hub, RS-232 & Audio
SM-DPN-4Q-S
Save $264.71
Video Type: DisplayPort
Monitors: Quad Monitor
Ports: 4
The SmartAVI SM-DPN-4Q-S (Formerly the DPN-4Quad) is a dedicated multi-platform KVM switch capable of managing up to 4 different computers through four DisplayPort monitors, one USB keyboard & mouse, a single set of speakers.
The USB emulation technology utilized by SM-DPN-4Q-S enables immediate hotkey source switching through a remote USB keyboard and mouse. SM-DPN-4Q-S delivers high resolutions of up to 4K (3840x2160 @ 30Hz) with zero pixel loss from TMDS signal correction.
SM-DPN-4Q-S Features & Benefits
- 4-port KVM switching; access & control keyboard-video-mouse functions on up to 4 remote computers
- Supports Ultra-HD 4K (3840x2160 @ 30Hz) - 4K-ready DisplayPort 1.2 connectors
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices (keyboard, mouse, peripherals).
- 2x USB Peripheral Ports - Independent (asynchronous) switching of KVM and peripheral USB ports.
- Balanced stereo audio output - independent switching. Users can listen to audio from one computer while working on the other or scan a document and save in another computer.
- Front panel keys for selecting users and channels manually
- RS-232 control for remote control
- Hot-key commands for quick channel selection.
- Complete keyboard emulation for error free booting
- Control Sun, Mac, Linux, Unix or PC computers from a common KVM console
- Rack mountable in a standard 19 inch rack (rackmount kit sold separately)

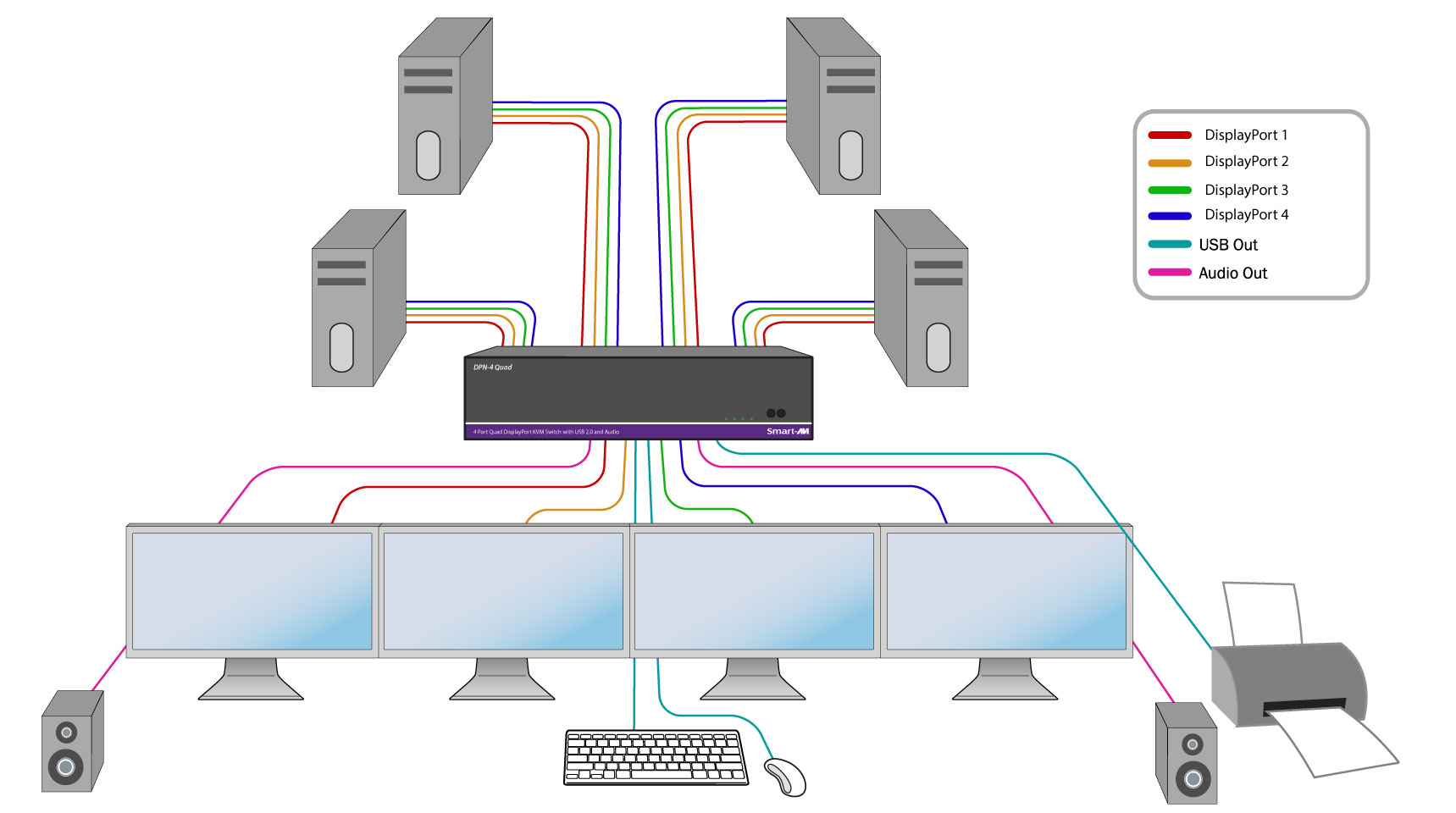

Controlling the SM-DPN-4Q-S
The SM-DPN-4Q-S is plug-and-play, easy to install into any AV setup and use right out of the box! Once set up, the SM-DPN-4Q-S is controlled with:
- Front Panel Buttons: Two simple source selection buttons that make it easy to switch command between different computers.
- USB Keyboard Hotkey Commands: Simple hotkey commands over PC that offer more robust control of the SM-DPN-4Q-S.
- TCP/IP Web Console: Connect to an online interface that offers full visual command of the SM-DPN-4Q-S's switching functions.
Full USB Keyboard & Mouse Emulation
The USB keyboard and mouse emulation utilized by SM-DPN-4Q-S provides accurate and quick source switching by means of keyboard hotkeys and mouse actions.SM-DPN-4Q-S imitates the presence of a keyboard and mouse for every attached computer through a USB cable. This is essential as it simulates the existence of the keyboard and mouse to all the computers while switching without interruptions.
SM-DPN-4Q-S Package Includes
- (1) DPN-4Quad
- (1) PS12VDC3A Power Supply
- (1) Quick Installation and User Guide
SM-DPN-4Q-S Resources

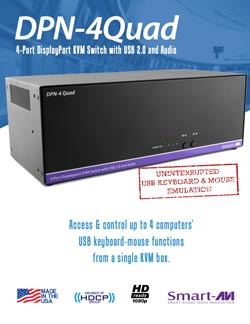

SmartAVI SM-DPN-4Q-S Brochure (PDF)
SmartAVI SM-DPN-4Q-S Manual (PDF)
SmartAVI SM-DPN-4Q-S Specifications
| Video | |
| Format | DisplayPort 1.2 |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | (16) DisplayPort |
| Output Interface | (4) DisplayPort |
| Resolution | Up to 4K UHD (3840x2160 @ 30Hz) |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| Audio | |
| Input Interface | (4) 3.5 mm Stereo Audio |
| Output Interface | (1) 3.5 mm Stereo Audio |
| Impedance | 600 Ohm |
| Frequency Response | 20 Hz to 20 kHz |
| Nominal Level | 0-1.0 V |
| Common Mode | Rejection at 60 dB |
| USB | |
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub |
| Input Interface | (4) USB Type B (female) |
| Output Interface | (2) USB 1.1 Type A for KVM Devices (2) USB 2.0 Type A Transparent |
| Control | |
| Front Panel Buttons | < M1||M2 > source selection buttons |
| TCP/IP Web Console | via web-based control console |
| Hot Keys | via USB keyboard |
| Other | |
| Power | External 100-240 VAC/ 5VDC4A @ 20W |
| Dimensions | 12.5" W x 4.3" H x 6.4" D |
| Weight | 4.9 lbs. |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 32-131 °F (0-55 °C) |
| Storage Temp. | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
| Emulation | Keyboard and Mouse |
The SM-DPN-4Q-S was formerly known as the DPN-4Quad-S or the DPN-4QuadS
UPC 813280020879
EAN 0813280020879
Question: Can I use this to run a triple monitor setup instead of a quad.
Answer: Thank you for your inquiry. The Smart AVI DPN-4Quad will allow you to run your triple monitor setup with, and across at least 4 different computers/servers. You can also visit the Triple Head KVM page for triple monitor specific KVM's, although HDMI video may not be an option.
Question: Does this switch support 1080p @ 144hz for my gaming monitors?
Answer: Thank you for your inquiry,
It would not. The SmartAVI DPN-4Quad would theoretically support up to 1080p @ 120Hz.
You may want to take a look at SmartAVI's new UHDN series instead, which features greater bandwidth: i.e. SmartAVI UHDN-4P-QUADS.
Please note, these resolutions are yet to be tested on these units and gaming equipment sometimes uses different hardware, so we are unable to guarantee compatibility.
Question: Do you ship to APO, AP addresses?
Answer: Thank you for your inquiry,
We do indeed. During check out, simply select the "APO/FPO" shipping method:
Question: Do you have a 4 Port Quad Monitor 4K DisplayPort KVM that will work at 60HZ?
Answer: Thank you for your inquiry,
We do not currently offer a 4-Port Quad-Monitor 4K/60hz KVM with DisplayPort inputs, but we do have a HDMI version (which can be adapted to DisplayPort): SmartAVI UHDN-4P-QUADS.
Question: Does the DPN-4Quad support 2048 x 1536 / QXGA resolution (3 megapixels of bandwidth) per head?
Answer: Thank you for your inquiry,
We have confirmed with SmartAVI that the DPN-4Quad does indeed support 2048x1536 (QXGA) resolution / 3 megapixels of bandwidth per head.
Let us know if there is anything else we can help you with!
Question: I'm looking at a couple Quad Monitor KVMs on your site. Namely the UHDN-4P-QUADS and the DPN-4Quad-S models, and had a couple questions. The intent of the device is to share a set of diagnostic medical monitors (resolution of 2048x2560). I see the only difference between the two is the inputs (Displayport vs HDMI) and refresh rate (60Hz vs 30Hz). If I required a 60Hz refresh rate, I would have to go to the UHDN-4P-QUADS model with a couple adapters? What adapters would that be, and what functionality would I be loosing using the adapters? Would the adapters support the resolution, I'm looking for?
Answer: Thank you for your inquiry,
That is correct, only the UHDN-4P-QUAD would support 2048x2560 resolution at 60Hz.
For DisplayPort sources, you could use for example this TrippLite DisplayPort 1.2 to HDMI 2.0 adapter which supports full 2048 x 2560 @ 60Hz. There shouldn't be any lost functionality such as loosing EDID or DPCP in using this adapter, but please note, support of the resolution and functionality would depend on which adapter you would use. We cannot guarantee functionality of a third party adapter with a SmartAVI KVM.
Please let us know if there is anything else we can help you with!
Question: Can you use "DP to DVI adapter" out of the KVM to an older DVI monitor
Answer: Thank you for your inquiry,
It is definitely possible you could use a DP to DVI adapter, which we offer, with the SmartAVI DPN-4Quad; We have customers who have done this with DisplayPort KVMs. That being said, due to variability in environments -source devices, cables, adapters, monitor used, etc.-, and the fact that issues with specifically DisplayPort conversion are not uncommon, we cannot guarantee adapter compatibility with any specific application.
Alternatively, you may be safer adapting HDMI to DVI for your monitor, using the related and similar SmartAVI D2H-4P-Quad 4-Port 4K DP to HDMI KVM Switch (4x DisplayPort Input - 1x HDMI output + Supports 4K up to 30Hz).
Please let us know if there is anything else we can help you with!
Question: If connected with NVidia GSync or AMD FreeSync, will this allow the freesync to continue functioning?
Answer: Thank you for your inquiry,
According to the vendor, both G-Sync and Freesync seem to be compatible with the DPN-4Quad. The DPN units can support up to 2560x1440 at 60Hz or 3840x2160 at 30Hz. However if you are looking to run a resolution at more than 60 Hz, it is most likely not going to work with the DPN.
Please let us know if there is anything else we can help you with!
Question: What's the ECCN & Schedule B?
Answer: Thank you for your inquiry,
See below for export information for the SmartAVI DPN-4Quad:
ECCN: EAR99
Schedule B: 8471.80.4000
Please let us know if there is anything else we can help you with!
