Gefen MINI 4x1 Switcher for HDMI
GTB-MHDMI1.3-441
Download the
GTB-MHDMI1.3-441 Manual (PDF)
The Gefen GTB-MHDMI1.3-441 is a Mini 4x1 Switcher for HDMI 1.3. The Gefen ToolBox 4x1 Switcher for HDMI 1.3 is a compact and lightweight alternative to rack-mounted HDMI 1.3 switchers. It allows up to four set-top boxes, DVD players, or other HDTV devices to be connected to one HDTV display. When two or more switchers are connected together, they can be used to support many more hi-def sources such as Blu-Ray players, satellite set-top boxes, and all types of HDMI displays. Features include support for hi-def, deep color resolutions up to 1080p@60 Hz combined with advanced lossless digital audio formats for pristine sound reproduction.GTB-MHDMI1.3-441 Manual (PDF)
How It Works
Connects four HDMI sources to the 4x1 Switcher for HDMI 1.3's input using the supplied 6-foot HDMI cables. Connect an HDMI-compliant display to the HDMI output using an HDMI cable. Once connected and powered, the source signals can be selected and switched to display simultaneously.
*Note: HDMI 1.3 Features Supported:
- 225 MHz (up to 12 bit YUV 444 @ 1080p)
- Deep Color (XV Color)
- Dolby TrueHD & DTS-HD Master Audio
- Color Space Conversion
- CEC Pass Through and xvYCC
- Lip-Sync Pass Through
Backview

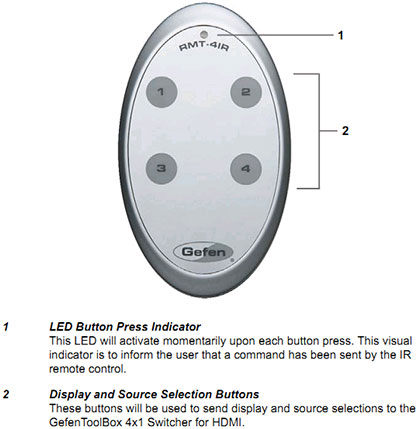

Included Remote
Package Includes:
- (1) GTB-MHDMI1.3-441 Switcher for HDMI 1.3
- (1) 5V DC Locking Power Supply
- (1) IR Remote Control
- (4) 6-foot HDMI Locking Cable (M-M)
- (1) Users Manual
Gefen GTB-MHDMI1.3-441 Features:
- Simultaneously displays a single HDMI 1.3 source
- Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p@60 Hz
- Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
- Supports DVI source and DVI displays using HDMI-to-DVI converter cable
- Extends the range of HDMI compliant devices by equalizing and relocking the HDMI signal
- HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution
- HDMI input/output cables may be up to 6/10 meters with 1080p/12-bit resolution
- HDMI and HDCP compliant
- Serial port for remote control via RS-232 communications
Gefen GTB-MHDMI1.3-441 Application Diagram
Gefen GTB-MHDMI1.3-441 Specifications:
| Mechanical | |
| Depth | 0.75 in.. (0.3 cm.) |
| Width | 2.75 in. (7 cm.) |
| Height | 10.5 in. (4.1 cm.) |
| Weight | 3 lbs. (1.4 kgs.) |
| Video Amplifier Bandwidth | 225 MHz |
| Input Video Signal | 1.2 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Video Resolution | 1080p@60 Hz with up to 12-bit Deep color |
| HDMI Connector | type A 19 pin female; (4) input, (1) output |
| Power Supply | 5V DC |
| Power Consumption | 10 Watts (max) |
| Operating Temperature | 0-40 degrees C |
| Certifications & Compliance | ROHS, CE, and UL Certified Complies with US/EU Standards HDMI 1.3, HDMI 1.2, HDCP 1.1 and DVI 1.0 Complaint |
Question: What does the remote look like and can it be synced with a Logitech remote?
Answer: We have uploaded a picture of the remote and a copy of the manual for your convenience.
As far as syncing with a Logitech remote, some users are reporting success with remotes that have the learn function. Others are experiencing difficulty due to different IR channels. There are dip switches in the unit and remote that control which IR channel is in use. These may need to be adjusted to match the universal remote.
For more information see the official Gefen forums found here: http://forum.gefen.com/
