Gefen HDBaseT HDMI Over CAT5 Extender
GTV-HDBT-CAT5
The GefenTV GTV-HDBT-CAT5 HDBaseT Extender for HDMI over one CAT5 uses one CAT-5e or CAT-6A cable to extend HDMI up to 230 feet (70 meters) away from the source. It supports resolutions up to 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD, as well as the pass-through of HDCP and High Bit Rate (HBR) lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio
3D content is supported when a 3D-capable display and 3D source are connected. DVI-D is also supported when used with HDMI to DVI adapters, providing greater flexibility and options when integrating several different commercial displays.
The GTV-HDBT-CAT5 Extender features Gefen's ELR implementation of HDBaseT Lite technology. Its uncompressed digital transmission method insures 100% signal integrity. The use of standard CAT-5e cable makes HDMI signal extension easier to install within a room or through walls.
How It Works:
The GefenTV GTV-HDBT-CAT5 Extender for HDMI over one CAT5 consists of a Sender and a Receiver unit. The HDMI source (such as a set-top box, Blu-ray player, or game console) connects to the Sender unit with the supplied 6 foot HDMI cable. The Receiver unit connects to the HDTV display using another HDMI cable, up to 230 feet (70 meters) away. One CAT-5e or CAT-6A cable links the Sender to the Receiver unit. Power is applied to the Sender and the Receiver with the two included 5V DC power supplies. A crisp, flawless High-Def picture appears on the HDTV display.
Gefen GTV-HDBT-CAT5 Features and Benefits:
- Extends HDMI at 1080p Full HD up to 230 feet (70 meters) over one CAT-6A and up to 200 feet (60 meters) ober one CAT-5e cable
- Extends HDMI at 4K x 2K (3840 x 2160 @ 30Hz) up to 130 feet (40 meters) over one CAT-5e cable
- HDMI Features Supported:
- Ultra HD 4K x 2K (3840 x 2160 @ 30Hz)
- 1080p Full HD
- 12-bit Deep Color
- HDCP
- LPCM 7.1 Audio, Dolby TrueHD and DTS-HD Master Audio pass-through
- Uses HDBaseT Technology
- Locking power supplies
- Easy Surface Mounting with included mounting plates

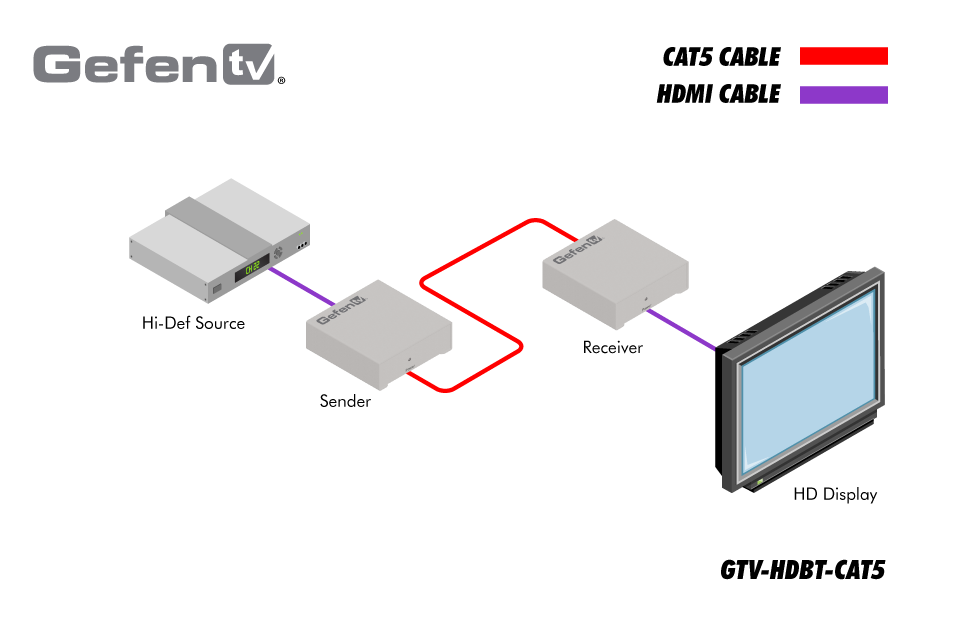

Gefen GTV-HDBT-CAT5 HDBaseT HDMI Over CAT5 Extender Diagram
Gefen GTV-HDBT-CAT5 Package Contents:
- 1 GTV-HDBT-CAT5 Sender Unit
- 1 GTV-HDBT-CAT5 Receiver Unit
- 1 6 ft. HDMI Cable (M-M)
- 2 5V DC Locking Power Supplies
- 1 Set of Mounting Plates
- 1 Quick-Start Guide
Gefen GTV-HDBT-CAT5 Specifications:
| Mechanical | |
| Width | 3.2 in (80mm) |
| Height | 1.3 in. (27mm) |
| Depth | 3.3 in (83mm) |
| Ship Weight | 3 lb (1.4 kg) |
| Environmental | |
| Operating Temperature | 32-104 F (0-40 C) |
| Connectors | |
| Video Input | 1 x HDMI Type A, 19-pin, female |
| Video Output | 1 x HDMI Type A, 19-pin, female |
| Link Connectors | 1 x RJ-45, shielded |
| Power | |
| Power Supplies | 2 5V DC, locking |
| Power Consumption | 10W per unit (max.) |
| Electrical | |
| Maximum Pixel Clock | 300 MHz |
