NTI HDMI USB KVM Extender over HDBase-T with Ethernet

The NTI XTENDEX ST-C6USBHE-HDBT HDMI USB KVM Extender over HDBase-T provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 328 feet away over a single CAT5e/6/7 cable using HDBase-T technology (full 1080P at 328 feet requires solid, 24 AWG, CAT6a or CAT7 cable).  Each video extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.

NTI XTENDEX ST-C6USBHE-HDBT Features and Benefits:

• Transmits an uncompressed high speed HDMI signal over one CAT5e/6/7 cable.
• Supports HDTV resolutions to 1080p and computer resolutions up to 1920x1200 (WUXGA).
      Note: Results may vary with cable quality.
      Recommended: Use Solid 23AWG Cat6 or better cable for best results.
• Only one power supply is necessary to power both the local and remote units.
• HDMI features supported:
• x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
• Bandwidth up to 154 MHz (3.76 Gbps)
• Support for CEC (consumer electronic control) compatible devices.
• Lip Sync
• HDCP compliant.
• Supports the DDC2B protocol.
• Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
• USB ports for keyboard and mouse.
• Keyboard and mouse are hot-pluggable.
• Keep-alive keyboard/mouse emulation for flawless operation.
• Features an additional USB port on the remote unit for a touch screen monitor, interactive whiteboard, or CAC card reader.
• Bi-directional RS232 interface.
• Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
• Integrated mounting brackets for easy surface/wall mounting.
• High quality, rugged steel construction with durable powder coat finish.

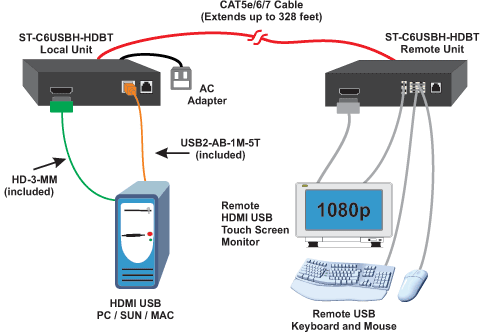

NTI XTENDEX HDMI USB KVM Extender over HDBase-T with Ethernet Diagram
(ST-C6USBHE-HDBT depicted here)

NTI XTENDEX ST-C6USBHE-HDBT Package Content:

• 1 ST-C6USBHE-HDBT Local Unit
• 1 ST-C6USBHE-HDBT Remote Unit
• 1 HD-3-MM 3 ft. Male-to-Male HDMI Video Cable
• 1 100-240VAC, 50/60Hz, 24VDC, 2.5A AC Adapter
• 1 Power Cord
• 1 3 ft. IR-EMITTER (IR-EMTR-3)
• 1 3 ft IR-RECEIVER (IR-RCVR-3)
• 1 CB4306 USB2-AB-1M-5T 1m USB 2.0 Type A to Type B Transparent Cable
• 1 CT6182 DB9 Female to RJ45 Female Adapter
• 1 CT6488 DB9 Male to RJ45 Female Adapter
• 2 CB4352 5 ft. RJ45 to RJ45 CAT5 patch cable
• 1 CD containing User Manual

NTI XTENDEX ST-C6USBHE-HDBT Specifications:

Mechanical
Width	6.06 in.
Height	1.08 in.
Depth	3.05  in.
Environmental
Operating Temperature	32 to 144°F (0 to 50°C)
Operating Humidity	5 to 90% non-condensing RH
Power Consumption	100V-240VAC @ 50/60Hz-24VDC/2.5A
Video
Video Compatibility	1920x1200 resolutions/ HDTV resolution up to 1080p @60Hz
Video Connectors	HDMI Type A
Input Video Signal	TMDS
HDMI Version	HDMI 1.2
DVI Support	DVI 1.0
DDC Support	DDC2b
HDCP Version	HDCP 1.2
Audio
Audi Format	LPCM, Dolby Digital (AC3)(Plus),DTS, Dolby TrueHD, DTS-HD Master Audio
Output Ports	4 x USB Type A; 1 x HDMI; 1 x RS-232 1 x IR Receiver; 1 x 3.5mm Audio Out
IRR
Input/Output	3.5mm Stereo Jack
Signal Type	TTL, 0-5VDC
Input Impedance	1.5 kohm
Output Impedance	44 ohm
Maximum Input/Output Level	5.2 Vp-p
Frequency Range	30-50kHz
Maximum Distance (from receiver)	10 ft. straight; 5 ft. 45 degree angle
General
Interconnect Cable	CAT5e solid UTP; CAT6/6a Solid UTP; CAT7 Solid STP EIA/TIA 568 B wiring with male RJ45 connectors
CATx Cable Range	328 ft. maximum
Compliance Certifications	CE, RoHS
