Iogear 8-Port Video Switch
GVS881
Description
IOGEAR introduces the 8-Port Video Switch (GVS881), allowing you to enable up to eight presenters' computers to a projector or VGA display. A wireless remote lets the moderator instantly switch between presenters, eliminating time-wasting plugging and unplugging of cables. When not in use, the remote snaps into the underside of the Switch. Presentations will run smoother and faster. IOGEAR's Video Switch also acts as a signal booster, increasing the distance of the video signal up to 215 feet. The GVS881 is the ideal solution for meetings and conferences with multiple presenters.
GVS881 Features
- Displays the output of 8 computers on a single projector or monitor
- New modern concentric design with logical connector layout for quick and easy access
- Fast and convenient computer selection via push buttons or infrared (IrDA) remote control
- Extra-thin infrared handset allows easy storage in the unit
- Electronic switching for greater reliability and durability
- Displays the output of eight computers on a single monitor
- High Resolution Video- up to 1920 x 1440; DDC; DDC2;DDC2B
- Supports, VGA, SVGA, XGA and Multisync Monitors
- Easy installation- no software required-no configuration necessary

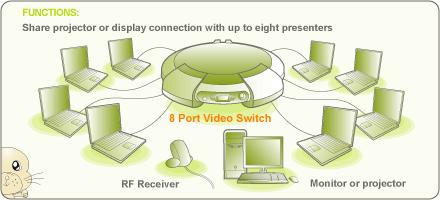

Function Diagram
GVS881 Requirements:
- Macintosh Users - All Macs with analog VGA support
- PC Users - All PCs with analog VGA support
- VGA, SVGA, Multisync compatible
- Supports DDC, DDC2, DDC2B at Port 1
GVS881 Package Content:
- 1 Video Switch (GVS881)
- 1 DC 9V Power Adapter
- 1 User Manual
- 1 Registration/Warranty Card
| Specifications: | GVS881 |
|---|---|
| Power Adapter Part # | 0AD1-0209-101 |
| Cable Distance | 215 Feet (65.53 m.) |
| Operating Temperature | 5 - 40C (Celsius) |
| Port Selection | Push Button Switches /IrDA Remote Control |
| Storage Temperature | -20 - 60C (Celsius) |
| Video Resolution | 1920 x 1440; DDC; DDC2; DDC2B |
| Operating System Support | Computers with Analog VGA Display Support |
| Video Performance | Supports DDC, DDC2, DDC2B at Port 1 |
| Power Adaptor | AC 9V, 1A (120 V input) |
| VGA Bandwidth (-3db) | 200 MHz |
| Signal Type | VGA, SVGA, and Multisync monitors |
| Connectors (Input) | 8 x 15pin HDB Male |
| Connectors (Output) | 1 x 15pin HDB Female |
| Humidity | 0 - 80% RH (Non Condensing) |
| Dimensions | |
| Width | 7.4 in. (19 cm.) |
| Length | 215 Feet (65.53 m.) |
| Height | 1.7 in. (4.5 cm.) |
| Depth | 6.7 in. (17 cm.) |
| Weight | |
| Package Wt. | 2.75 lbs. (1.23 Kg.) |
| Unit Wt. | 1.5 lbs. (.675 Kg.) |
| Case Wt. | 15.25 lbs. (6.86 kg.) |
| Housing | |
| Case | Metal |
| LEDs | |
| ACT (Activity) | 8 Online (Orange) /8 Selected (Green) |
| Data | 1 (Blue) Disabled |
| Power On | 1 |
| Package Dimensions | |
| Length | 8.75 in. (22.2 cm.) |
| Height | 10 in. (25.4 cm.) |
| Width | 3.75 in. (9.52 cm.) |
| Case | |
| Case Qty. | 5 |
| Length | 21.25 in. (53.98 cm.) |
| Width | 9.5 in. (24.13 cm.) |
| Height | 11.5 in. (29.21 cm.) |
