ATEN 8-Port VGA Video Switch
VS881
Save $36.05
ATEN VS881 8-Port Video Switch
ATEN introduces the 8-Port Video Switch (VS881), allowing you to switch between 8 different computers' video signals using a single VGA display. ATEN's Video Switch (VS881) also acts as a signal booster, increasing the distance of the video signal up to 215 feet. A wireless remote offers instant switching between users. The ATEN VS881 is he ideal solution for meetings and conferences with multiple presenters.
ATEN VS881 Features:
- Enables up to 8 computers to connect to a single monitor
- New modern concentric design with logical connector layout for quick and easy access
- Fast and convenient computer selection via push buttons or infrared (IrDA) remote control
- Extra-thin infrared handset allows easy storage in the unit
- Electronic switching for greater reliability and durability
- Displays the output of eight computers on a single monitor
- High Resolution Video- up to 1920 x 1440; DDC; DDC2;DDC2B
- Supports, VGA, SVGA, XGA and Multisync Monitors
- Easy installation- no software required-no configuration necessary

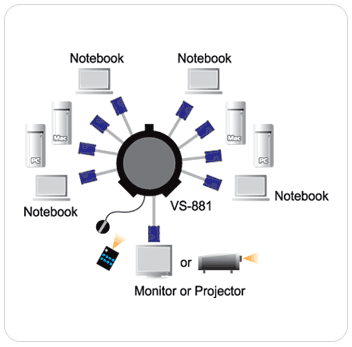

ATEN (VS881) 8-Port Video Switch Function Diagram
ATEN VS881 Requirements:
- Macintosh Users - All MACs With analog VGA support
- PC Users - All PCs With analog VGA support
- VGA, SVGA, Multisync compatible
- Supports DDC, DDC2, DDC2B at Port 1
ATEN VS881 Package Content:
- 1 1 x ATEN Video Switch (VS881)
- 1 x DC 9V Power Adapter r> 1 x User Manual
- 1 x Registration / Warranty Card
ATEN VS881 Specifications:
| Case | |
| Height | 11.5 in. (29.2 cm) |
| Width | 9.5 in. (24.1 cm) |
| Length | 21.3 in. (54.0 cm) |
| Case Qty. | 5 |
| Package Dimensions | |
| Width | 3.8 in. (9.5 cm) |
| Depth | 8.8 in. (22.2 cm) |
| Height | 10.0 in. (25.4 cm) |
| LEDs | |
| ACT (Activity) | 8 Online (Oragne) /8 Selected (Green) |
| Data | 1 (Blue) Disabled |
| Power On | 1 |
| Housing | |
| Case | Metal |
| Weight | |
| Case Wt. | 15.3 lb. (6.9 kg) |
| Package Wt. | 2.8 lb. (1.2 Kg) |
| Unit Wt. | 1.5 lb. (0.7 Kg) |
| Dimensions | |
| Width | 7.4 in. (19.0 cm) |
| Depth | 6.7 in. (17.0 cm) |
| Height | 1.7 in. (4.5 cm) |
| Power Consumption | AC 9V, 1A (120 V input) |
| Video Performance | Supports DDC, DDC2, DDC2B at Port 1 |
| Humidity | 0 - 80% RH (Non Condensing) |
| Connectors (Input) | 8 x 15pin HDB Male |
| Connectors (Output) | 1 x 15pin HDB Female |
| VGA Bandwidth (-3db) | 200 MHz |
| Signal Type | VGA, SVGA, and Multisync monitors |
| Operating System Support | Computers with Analog VGA Display Support |
| Port Selection | Push Button Switches /IrDA Remote Control |
| Storage Temperature | -4F~140F (-20C~60C) |
| Video Resolution | 1920 x 1440; DDC; DDC2; DDC2B |
| Cable Distance | 215 ft. (65.5 m) |
UPC 672792151712
EAN 0672792151712
