SmartAVI HDMI & IR Extender Receiver Over Two CAT5 UTP Cables
HDX-LX-RXS
Save $43.94
The SmartAVI HDX-LX-RXS is the receiver unit. For the complete HDMI extension solution, view the SmartAVI HDX-LXS.
The SmartAVI HDX-LX-RXS use a single CAT5 UTP cable to extend HDMI signals - including high-definition TV over 250ft (75m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling a video source is easy with the devices bi-directional IR extension. Whether it's for a home entertainment system or a commercial installation, the HDX-LX-RXS delivers flexibility and control.
SmartAVI HDX-LX-RX Applications:
- Home Theater
- Corporate/Educational Presentations
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- Educational Environments with Remote Displays

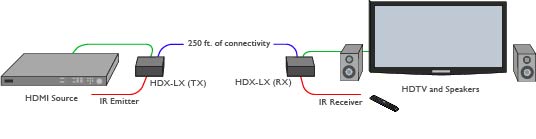

SmartAVI HDX-LX-RX Application Diagram
SmartAVI HDX-LX-RX Features & Benefits:
- Extends HDMI output over one CAT5 UTP cable
- Extends IR control signals for remote control
- Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D
- Data signals up to 3.4Gpbs
- HDMI 1.3 and HDCP compliance
- IR communication is b-directional
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 250 feet
- Supports HDTV resolution up to 1080p @ 4K x 2K
- Supports PCM 2 Ch audio, 5.1, 7.1, DTS-HD, Dolby audio format
- Supports 3D function
- Compliant with HDCP 2.0 standard
- Supports bi-directional IR function
SmartAVI HDX-LX-RX Specifications:
| Mechanical | |
| Width | 2.9 in. (7.4 cm.) |
| Height | 0.9 in. (2.3 cm.) |
| Depth | 3.7 in. (9.4 cm.) |
| Weight | 0.26 lb. (.12 kg.) |
| Video | |
| Resolution | 800x600, 1024x768, 1280x1024, 1366x768, 1920x1200, 480i, 720p, 1080i, 1080p, and 3D |
| Color Depth | Deep Color 36/30/24 Bit at 1080p and 3D |
| Video Bandwidth | 10.2Gbps |
| Input Video Signal | 1.2 Volts P-P |
| Audio | |
| Audio Format | Up to PCM 8 channel, Dolby Digital, TrueHD, and DTS-HD Master Audio |
| I/O Connector (TX) | |
| Input | 1 x HDMI-A 19PIN Socket; 1 x 2.5mm DC Jack; 1 x 3.5mm Jack for IR receiver |
| Output | 1 x RJ45 Jack; 1 x 3.5mm Jack for IR Receiver; |
| I/O Connector (RX) | |
| Input | 1 x RJ45 Jack; 1 x 3.5mm Jack for IR Receiver; 1 x 2.5mm DC Jack |
| Output | 1 x 3.5mm Jack for IR Emitter; 1 x HDMI-A 19PIN Socket |
| Input DDC Signal | 5 Volts(TTL) |
| Power | External 5VDC 2A |
| Environmental | |
| Operating Temperature | 0-40°C (32-104°F) |
| Storage Temperature | -20-60°C (-4-140°F) |
| Humidity | 10% to 85% (Non-condensing) |
| Approvals | |
| Certificate | FCC, CE, RoHS |
| Power Adapter | UL, CE, FCC, RoHS |
This unit is also known as the HDX-LXRX
UPC 813280021807
EAN 0813280021807
Question: Is this compatible with the SmartAVI HDX-400-PRO over CAT5e UTP? If not, is there a different product that can split an HDMI signal to two separate displays?
Answer: Thank you for your inquiry,
The SmartAVI HDX-400-PRO is designed to work with HDX-RX100S Receiver Units rather than HDX-LX-RXS Receivers.
For a HDMI Splitter / Extender solution, you may be interested in the Adder XDIP-PSU HDMI Over-IP Matrix solution (3 nodes required for one source and two outputs) instead.
Please let us know if there is anything else we can ever help you with!
