HDMI & IR Extender Over CAT5
HDX-LXS
Save $88.09
Watch and Control HDTV 1080p video up to 250ft from the source using HDBaseT Technology.
The HDX-LX uses a CAT5 UTP cable to extend HDMI signals - including high-definition TV - up to 250ft (75m) from the sourceby using HDBaseT technology. It is capable of transmitting high-resolution HD video up to 1080p. Controlling a video source iseasy with the devices bi-directional IR extension. Whether it's for a home entertainment system or a commercial installation, theHDX-LX delivers flexibility and control.
Applications for the HDX-LXS include:
- Home Theater
- Corporate/Educational Presentations
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- Educational Environments with Remote Displays
SmartAVI HDX-LXS Features:
- Extends HDMI output over one CAT5 UTP cable
- Extends IR control signals for remote control
- Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D
- Data signals up to 3.4Gbps
- HDMI 1.3 and HDCP compliance
- IR communication is bi-directional
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 250 feet (75 meters) from the source
- Uses HDBaseT Technology

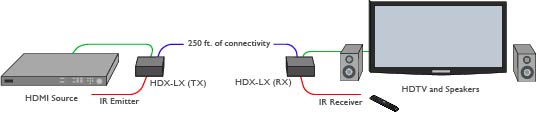

SmartAVI HDX-LXS Diagram
SmartAVI HDX-LXS Specifications:
| Video | |
| Color Depth | Deep Color 36/30/24 Bit at 1080p and 3D |
| Audio Format | Up to PCM 8 channel, Dolby Digital, TrueHD,and DTS-HD Master Audio |
| Resolution | 800X600, 1024X768 , 1280X1024, 1366X768, 1920X1200, 480i, 720p, 1080i, 1080p and 3D |
| Input Connector (Transmitter) | 1x HDMI-A 19PIN Socket 1x 2.5mm DC Jack 1x 3.5mm Jack for IR Receiver |
| Output Connector (Transmitter) | 1x RJ45 Jack 1x 3.5mm Jack for IR Emitter |
| Input Connector (Receiver) | 1x RJ45 Jack 1x 3.5mm Jack for IR Receiver 1x 2.5mm DC Jack |
| Ouput Connector (Receiver) | 1x 3.5mm Jack for IR Emitter 1x HDMI-A 19PIN Socket |
| Other | |
| Power | External 5VDC 2A |
| Dimensions | External 0.9" H X 2.9" W X 3.7" D |
| Weight | 120g |
| Approvals | UL, CE, ROHS |
| Operating Temp. | +0 to +40° C (+32° to 104° F) |
| Storage Temp. | -20° to +60°C (-4° to +140° F) |
| Humidity | 10% to 85% (Non-condensing) |
The HDX-LXS is also known as the HDX-LX-S
UPC 813280018036
EAN 0813280018036
Question: Do the IR transmitters and receivers need to be in sight of each other or can 1 be under a table and the other hidden in the ceiling.
Answer: Thank you for your inquiry. The IR transmitters and receivers need not be in sight of each other. The IR data will be passed along with the video signals over the CAT5 cable.
Please note however, the IR receiver does need to be in a spot the signals from the remote control can be seen, and the IR emitter will need to be located where the IR receiver on the HDMI source can see it. As long as those two conditions are met, the IR transmitter and receiver can be placed as specified.
Question: Can you send the wiring instructions for me to see before getting started. I ordered IR repeaters that mount in a J box in the wall at both ends and not sure how to get the wire to the target receiver and the transmitter or to put the extenders since my TV's are all wall mounts high up.
Answer: Thank you for your inquiry,
HDMI and IR source into transmitter > a single CAT5 from transmitter to receiver > HDMI and IR from receiver to display. HDX-LX does transmit IR but the emitter and receiver are sold separately/optional. Unfortunately, we are not able to confirm if the HDX-LX will support your J box without testing it.
You can also find an application diagram on the SmartAVI HDX-LXS page.
Question: I have one cat 5 in the wall running from the source to the TV. Can that be used for both the HDMI connection and the IR repeater or do I need a second wire.
Answer: Thank you for your inquiry,
Yes, you can use a single CAT5 to transmit both HDMI and IR signals.
If you would like a recomendation based on your setup, please feel free to contact your KVM Switches Online sales reprasentative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Question: will this setup work between 2 buildings
Answer: Thank you for your inquiry,
As long as the two buildings are ~250ft apart, the SmartAVI HDX-LXS extender kit would absolutely work for your setup.
For alternatives - We have all of our CATx KVM extenders listed here. If you need substantially longer distance, fiber extenders would be the way to go.
If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
