2-port DVI-D Mini IP KVM
IP-D102
Save $121.00
Video Input: DVI-D
Ports: 2-Port DVI-D KVM

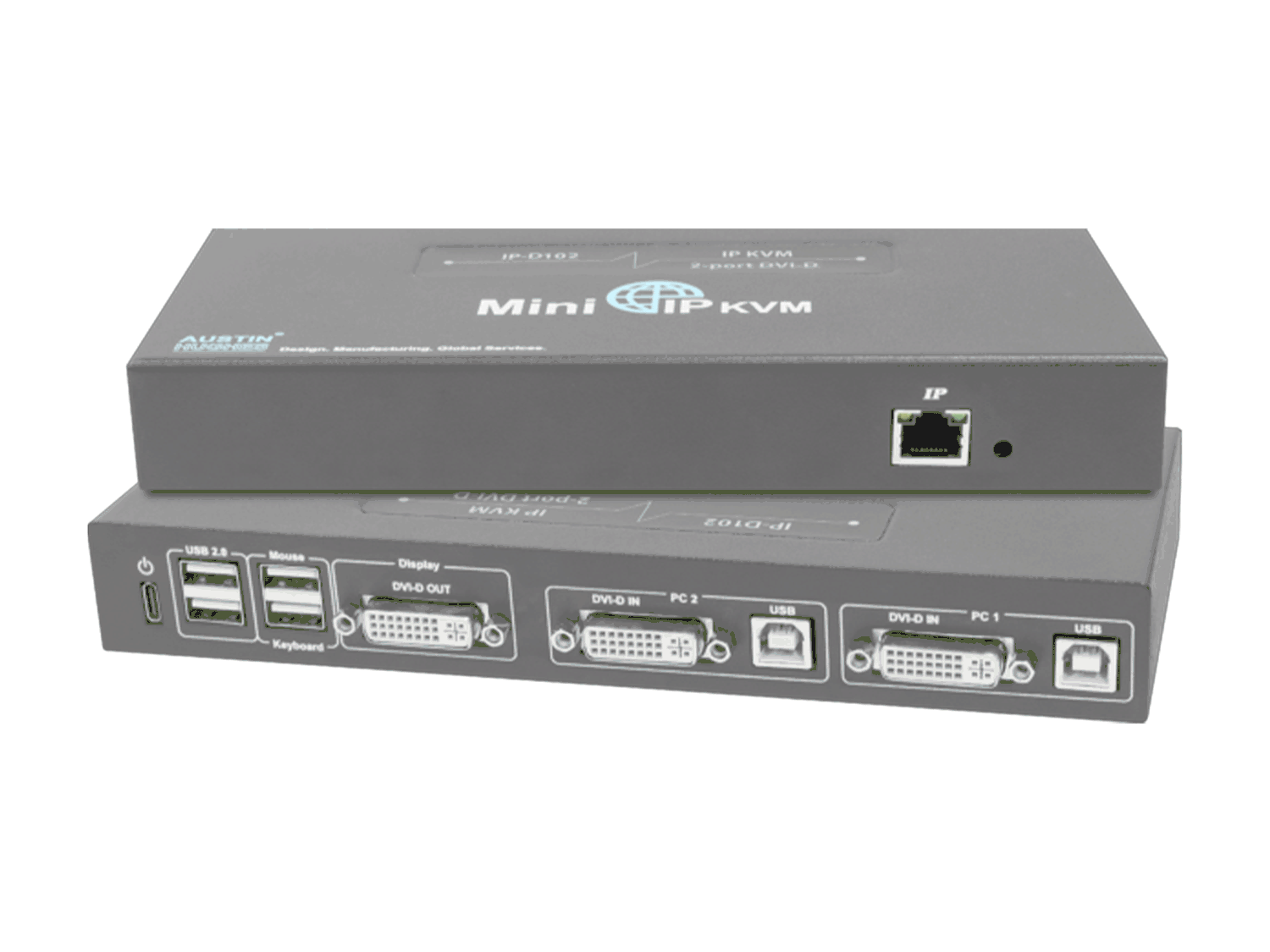

Austin Hughes IP-D102
DVI-D 2-port Mini IP KVM
IP-D102 Benefits
- IP remote access to PC(s) with DVI-D connection
- 1-port, 2-port, 4-port models for selection
- OS Support : Mac / Windows / Linux
- Stylish mini size chassis for limited spacing environment
- Powerful quad-core processor for high quality video & image via IP
- Enterprise level IP authentication
- User-friendly HTML-base & Java-free remote access over IP
- Support BIOS access, no need to run OS on the connected PC(s)
- Hot pluggable, no software or drivers required
- 2 x USB hub port share peripheral devices among PC(s)
IP-D102 Package Contents
- (1) DVI-D 2-port Mini IP KVM
- (1) USB-C to USB-A 6ft power cable
- (1) Mounting set
IP-D102 Resources
IP-D102 Manual (PDF)
Mini IP KVM Data Sheet (PDF)
Austin Hughes IP-D102 Specifications
| IP Console | |
| Connector | 1000 BaseT Gigabit Ethernet Port ( RJ45 ) |
| User Management | 1 x active user, 15-user login |
| Network Protocol | DHCP / BOOTP / DNS |
| Security | TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s) |
| Browser | Safari, Chrome, Firefox, Edge, etc. |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| KVM Port | |
| Port number | 1 / 2 / 4 |
| Connector | VGA + USB-B ( Video + KB / MS ) |
| Resolution (Max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Local Console | |
| Video | 1 x VGA |
| Keyboard / Mouse | 2 x USB-A |
| USB Hub 2.0 | 2 x USB-A |
| Resolution (max) | 1920 x 1080 / 1920 x 1200 / 1600 x 1200 |
| Compatibility | |
| Hardware Compatibility | Mac / HP / IBM / Dell PC, Server and Blade Server |
| OS Support | Mac / Windows / Linux |
| Compliance | |
| EMC | FCC & CE |
| Safety | CE / LVD & UKCA |
| Environment | RoHS3 & REACH |
| Environment | |
| Operating Temp. | 0 to 55°C degree |
| Storage Temp. | -20 to 60°C degree |
| Operating Humidity | 20 to 90%, non-condensing |
| Storage Humidity | 5 to 90%, non-condensing |
| Operating Altitude | 16,000 ft |
| Non-Operating Altitude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | USB-C |
| Consumption | Max. 11W |
| Physical | |
| Product (WxDxH) | 220 x 87 x 30 (mm) 8.66 x 3.43 x 1.18 (inch) |
| Packing (WxDxH) | 358 x 257 x 55 mm 14.09 x 10.12 x 2.17 inch |
| Weight / Net Gross | 0.623 kg / 1.373 lb 0.923 kg / 2.034 lb |
| Chassis Color | Dark |
| Chassis Materials | Steel |
