32-Port 9-User KVM over IP Switch - Dual Power/LAN
KN8132V

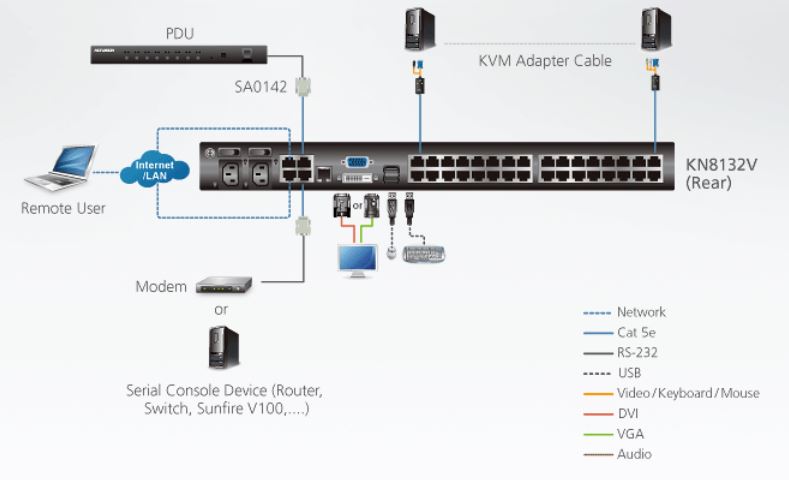

The KN8132V features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS level troubleshooting when the network is down.
New KN Series Exclusives
- High grade security - supports FIPS 140-2 level 1 security standards
- Extreme virtual media speed - 2 x faster virtual media transmission speed
- Advanced FPGA graphics processor - with an HD resolutions of 1920 x 1200
Product Features and Benefits
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Dual Power Supply
- High video resolution - up to 1920 x 1200 @ 60Hz with 24-bit color depth at the switch's local console and on remote session displays
- Firmware upgradeable
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Package Contains
- 1x KN8132V KVM over IP Switch
- 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- 2x Power Cords
- 1x Mounting Kit
- 2x Lok-U-Plugs
- 1x Lok-U-Plug Installation Tool
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
| Computer Connections | |
| Direct | 32 |
| Maximum | 512 (via Cascade KVM Switches) |
| Console Connections | |
| Local | 1 |
| Remote | 8 |
| Port Selection | Pushbuttons, Hotkeys, GUI |
| Connectors | |
| Console Ports | 2 x USB Female 1 x DVI-D Female/1 x VGA HDB-15 1 x VGA HDB-15 1 x RJ-45 Female |
| KVM Ports | 32 x RJ-45 Female |
| USB Ports | 3 x USB Female |
| Audio | 2 x Audio Jack Female |
| Laptop USB Console (LUC) Port | 1 x Mini-USB Female |
| PON | 1 x RJ-45 Female |
| Serial | 1 x RJ-45 Female |
| LAN Ports | 2 x RJ-45 Female |
| Power | 2 x IEC 60320/C14 |
| Switches | |
| Power | 2 x Rocker Switches |
| Port Selection | 2 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| LED's | |
| Online/Selected | 32(Green/Orange) |
| Power | 2(Blue) |
| Link 10 /100 /1000 Mbps | 2(Red/Orange/Green) |
| Video | |
| Local | 1920 x 1200 @ 60Hz |
| Remote | 1920 x 1200 @ 60Hz |
| Power Consumption | |
| Single Power | 110V/72.6W; 220V/71.7W |
| Dual Power | 110V/28.3W; 220V/28W (per input) |
| Environmental | |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -4-140°F (-20-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 12.79 lbs. (5.80 kg) |
| Dimensions(L x W x H) | 17.1 x 16.2 x 1.73 in. (43.36 x 41.21 x 4.40 cm.) |
UPC 672792403316
EAN 0672792403316
