MiniBoot Remote Reboot and Monitoring Device - 4-Outlet 208V 16A Switched PDU
MiniBoot-4C13-16A
Save $74.00
In today's digital world, remote power reboot and monitoring functions are essential for hardware systems deployed across a variety of environments. The Austin Hughes MiniBoot-4C13-16A Web Power Reboot & Monitoring device offers a cost-effective power solution for most any environment.
With the free, web based Graphic User Interface (GUI), users can recover crashed devices by remote reboot easily, anytime, from anywhere. In addition, the user-friendly GUI provides individual outlet switching On/Off, current monitoring and alarm alert functions. With enterprise level IP authentication, the MiniBoot-4C13-16A provides administrators the tools to securely manage remote access with confidence.
Unlike expensive traditional rack power strips - mounted inside server rack enclosures, the MiniBoot's smaller form factor brings enterprise level power distribution outside the rack. The MiniBoot is designed to meet the needs of a variety of industries in a variety of environments - Transportation (Air, Land and Sea), Broadcasting, Entertainment, Advertising, Manufacturing, Mining, Satellite, Defense, Education, Telecommunication, Finance & Banking, Commercial, etc.
MiniBoot-4C13-16A Key Features:
- Remote Reboot Device Recovery - reboot connected devices easily anytime, from anywhere. With remote reboot, users do not have to wait for on-site services, minimizing device down time.
- Manual Outlet Switching on/off
- Automatic Outlet Switching on/off by sensor condition
- Automatic Outlet Switching on/off scheduling
- IP-Ping automatically detects a failed system for timely reboot (auto-ping)
- Enterprise Level IP Authentication - Supports Active Directory (AD), Lightweight Directory Access Protocol (LDAPv3 / LDAPS), Remote Access Dial-In User Service (RADIUS) protocol, or local credential database - including strong passwords and granular user/user group permissions.
- Power Monitoring via Network & Local Meter - Allows remote power monitoring via the free Graphic User Interface (GUI) and local current monitoring via the MiniBoot blue LED ammeter.
- Alerts & Alarms - Receive alerts via SNMP, email (SMTP), and syslog when predefined thresholds are exceeded for both the MiniBoot and environmental sensor events.
- Remote Management - Included User-friendly GUI provides individual outlet switching On/Off, current monitoring and alarm alert functions. The MiniBoot also supports SNMP V2 / V3 integration for clients requiring remote management using existing DCIM ( Data Center Infrastructure Management ) systems.
- Remote management protocols supported: HTTP(S); SSH Command Line Interface; Telnet; SMTP; IPv6/IPv4
- Sensors & Wi-Fi - A variety of optional sensors are available to provide environmental monitoring and power management in a single compact device. An optional Wi-Fi kit (IPD-WIFI) is also available complying with 802.11 g/n/ac protocols.
- Available sensors include: Temperature & Humidity, Temperature, Smoke, and Mechanical Door Security sensors.
MiniBoot-4C13-16A Package Contents
- (1) MiniBoot-4C13-16A Remote Reboot Device

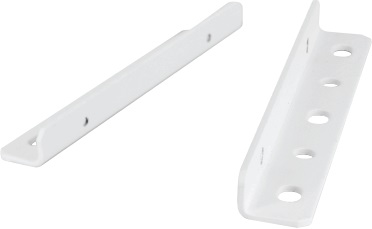

- (1) Universal mounting Kit - for easy installation on existing kiosks, walls, furniture, etc.
MiniBoot Resources
MiniBoot Brochure (PDF)
MiniBoot Manual (PDF)

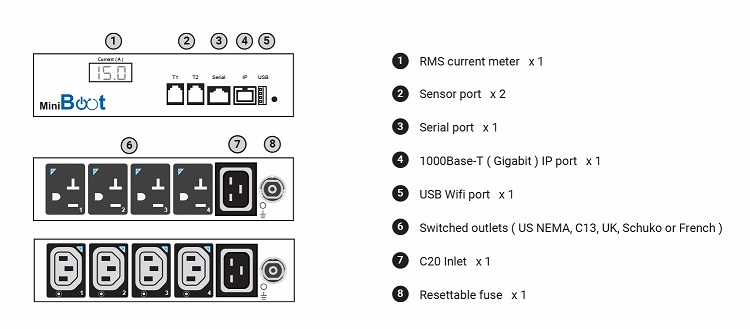

MiniBoot-4C13-16A Drawing (PDF)
MiniBoot-4C13-16A Specifications:
| Mechanical | |
| Height | 1.75in. (44.45 mm.) |
| Width | 7.1 in. (180 mm.) |
| Depth | 5.51 in. (140 mm.) |
| Weight | 2 lbs. (0.9 kg.) |
| Environmental | |
| Operating Temperature | -5-60 degrees Celsius (23-140 Fahrenheit) |
| Humidity | 0-95%, non-condensing |
| Input | |
| Nominal Input Voltage | 208V |
| Input Current | 16 Amps |
| Input Frequency | 50-60 Hz |
| Inlet | 16A IEC320 C20 |
| Output | |
| Voltage | 208V |
| Maximum Output | 12 Amps (regulatory derated from 16A) |
| Receptacles | 4 x IEC C13 |
| Protection | 1 x 16A resettable fuse |
| PDU Features | |
| Local Display | 3-dgit LED RMS ammeter for input current |
| Alarm threshold support | Overload, temp, humidity & auto-ping |
| Remote management | Telnet or SNMP v2 / v3 |
| Outlet | ON / OFF / Reboot over network |
| IP security | LDAPv3 / LDAPS, AD, RADIUS, local credential database |
| Alarm threshold support | Overload, temp, humidity & auto-ping |
| Interface and Protocol Support | |
| 1 x IP port | 10 / 100 / 1000 Base T, RJ45 |
| 1 x serial port | For CLI command access |
| 2 x Sensor Ports | Supports Temp. / Temp. + Humid. / Smoke sensor / Door switch |
| 1 x USB port | For optional Wi-Fi kit |
| Protocols | HTTP(S), SSH Command Line Interface, Telnet, SMTP, IPv6/IPv4 |
| Approvals | |
| EMC Compliance | FCC Part 15 Subpart B |
| Environment Compliance | RoHS3, Reach & WEEE |
| Safety Compliance | UL 62368-1:2014 |
