Avocent 16-Port, 2 Digital Path, Single-AC input Power Supply
MPU2016-001
The Avocent MergePoint Unity MPU2016 is a KVM over IP 16-Port Serial Console Switch with 2 Digital Path and a single-AC input Power Supply.
This unique combination provides IT Administrators a complete remote management solution to access and control servers, networking equipment, and other devices found in data centers and branch offices.
The MergePoint Unity switches enhance the in-band management typically done through the NIC of IT equipment by providing secure and remote Out-of-band connections directly to the physical KVM, USB, and Serial ports. This unified approach enables IT administrators a faster method to diagnose, reconfigure, or restore equipment to meet SLA's and minimize downtime.

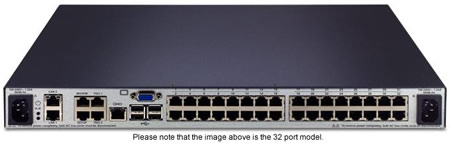

Avocent MergePoint MPU2016 Backview
Avocent MergePoint MPU2016 Features:
- Complete, full-featured remote server management from a single user interface.
- Remote KVM and serial console access are both included in the design of the MergePoint Unity switches.
- The MergePoint Unity switches can operate out of the box or can be managed by the DSView 3 software to allow a single method to manage and access all the MergePoint Unity switches that exist.
- Supports LDAP when used alone or can be managed with the DSView 3 management software to add more authentication and reporting options.
- The MergePoint Unity switch has virtual media capabilities to map USB storage devices and Smart Card/ Common Access Card (CAC) readers.
- All MergePoint Unity switches come with virtual media capabilities.
- The MergePoint unity switches offer dual 10/100/1000 ethernet ports on all models and options for models with dual power supplies.
- Dedicated power control ports to connect and control Avocent rack PDUs (sold separately) for integrated power control and measurement.

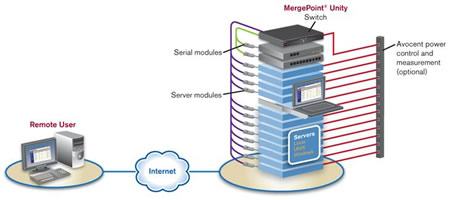

Avocent MergePoint MPU2016 Application Diagram
Avocent MergePoint MPU2016 Specifications:
| Mechanical | |
| Height | 1.72 in. (4.4 cm.) |
| Width | 17.0 in. (43.2 cm.) |
| Depth | 14 in. (34 cm.) |
| Weight (without cables) | 8.6 lbs. (3.9 kg.) |
| Form Factor | 1-U rack mountable |
| Power Specifications | |
| Number | MPU8032DAC/4032DAC/2016DAC/1016DAC: 2 power supplies MPU08032/4032/2016/1016: 1 power supply |
| Type | Internal |
| Power | MPU8032DAC/8032: 24W; MPU4032DAC/4032: 18W; MPU2016DAC/2016: 13W; MPU1016DAC/1016: 12W |
| Heat Dissipation | MPU8032DAC/8032: 82 BTU/hr MPU4032DAC/4032: 62 BTU/hr MPU2016DAC/2016: 45 BTU/hr MPU1016DAC/1016: 41 BTU/hr |
| AC Input Range | 100-240 VAC |
| AC Frequency | 50-60Hz autosensing |
| AC Input Current Rating | 1.25 A |
| AC Input Power (max) | 40W |
| Server Ports | |
| Number | 16 port models- MPU2016DAC/2016/1016DAC/1016 |
| Modules supported | PS/2, Sun, USB and Serial modules sold separately |
| Connectors | 8-pin modular |
| Sync Types | Separate horizontal and vertical |
| Input Video Resolution | 640 x 480 @ 60 Hz; 800 x 600 @ 75 Hz; 960 x 700 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 1024 @ 75 Hz |
| Supported Cabling | 4-pair UTP CAT 5 or CAT 6, 45 meters maximum length |
| Network Connection | |
| Number | 2 |
| Type | 10/100/1000 Ethernet |
| Local Port | |
| Number | 1 |
| Type | USB and VGA |
| USB Device Port | |
| Number | 5 |
| Type | USB 2.0 |
| Modem Port | |
| Number | 1 |
| Type | RS-232 serial |
| Connectors | 8-pin modular |
| PDU Port- used to manage supported PDUs through a direct serial port connection | |
| Number | 2 |
| Type | RS-232 serial |
| Connector | 8-pin modular |
| Ambient Atmospheric Condition Ratings | |
| Temperature | Operating;32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius) Non-operating: -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius) |
| Humidity | Operating:20% to 80 % relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7 degrees C maximum wet bulb temperature |
| Safety and EMC Standards Approvals and Markings | |
| UL, FCC, cUL, ICES-003, CE, VCCI, KCC, C-Tick, GOST | |
| Safety certifications and EMC certifications for this product are obtained under one or more of the following designations: CMN (Certification Model Number), MPN (Manufacturer's Part Number) or Sales Level Model designation. The designation that is referenced | |
Question: Is this product truly discontinued as stated above or is that a misprint? If so, do you know of a substitute for it?
Answer: Thank you for your inquiry. The single power supply version of this switch, the MPU2016-001 featured above, is discontinued. The Dual AC input version, the MPU2016DAC-001 can be found here: https://www.kvm-switches-online.com/mpu2016dac.html.
Again, thank you for your question, we will add a prominent link the the Dual AC unit in the discontinuation notification.
Question: Is this device capable of auditing security event? i.e at a minimum audit CDA connections, user login/logouts, configuration changes, setting changes, privileged access?
Answer: Thank you for your inquiry,
The MergePoint Unity series is designed as a configurable platform for managing all your servers. The MPU2016 appliance has some features and logs inside of the unit meant specifically for auditing security. The internal log will show you who logged in, when, etc. You can also setup users (Local) to provide rights to any specific target, or group of targets. Advanced Logging and management can be accomplished with the DSView software where you can add many MPU units, and other Avocent Hardware and manage it through there. However as mentioned above, the MPU2016 by itself can handle most of what you are looking for.
For more information regarding logging and management, please refer to the MergePoint Unity Installer / User Guide (PDF) and/or the DSView 4 Install Guide (PDF).
Answer: Thank you for your inquiry. The single power supply version of this switch, the MPU2016-001 featured above, is discontinued. The Dual AC input version, the MPU2016DAC-001 can be found here: https://www.kvm-switches-online.com/mpu2016dac.html.
Again, thank you for your question, we will add a prominent link the the Dual AC unit in the discontinuation notification.
Question: Is this device capable of auditing security event? i.e at a minimum audit CDA connections, user login/logouts, configuration changes, setting changes, privileged access?
Answer: Thank you for your inquiry,
The MergePoint Unity series is designed as a configurable platform for managing all your servers. The MPU2016 appliance has some features and logs inside of the unit meant specifically for auditing security. The internal log will show you who logged in, when, etc. You can also setup users (Local) to provide rights to any specific target, or group of targets. Advanced Logging and management can be accomplished with the DSView software where you can add many MPU units, and other Avocent Hardware and manage it through there. However as mentioned above, the MPU2016 by itself can handle most of what you are looking for.
For more information regarding logging and management, please refer to the MergePoint Unity Installer / User Guide (PDF) and/or the DSView 4 Install Guide (PDF).
