2U 17" 1080P Dual-display Rack Console Drawer

MRK-F17-2

$4,716.00$4,134.00
Save $582.00
Model: MRK-F17-2
  • + Compare Family
Version: 17" 1080P
Displays: Dual
FREE Shipping on orders over $100

The CyberView MRK-F17-2 (MRK-F17-2L - left hinged mount, MRK-F17-2R - right hinged mount) is a 2U Dual-display 17" 1080P rack console drawer is designed for Command and Control Systems which demand quick deployment of side by side displays.

17" Full HD displays satisfy the increasing demand for superior graphics and image clarity. 2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-F17-2 drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.

Austin Hughes CyberView MRK-F17-2 Rack Mounted

MRK-F17-2 Features and Benefits

  • DVI-D + VGA video input ( per display )
  • 1080P native resolution
  • 2U 22" short depth design
  • Light weight only 49 lbs / 22 kgs
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )

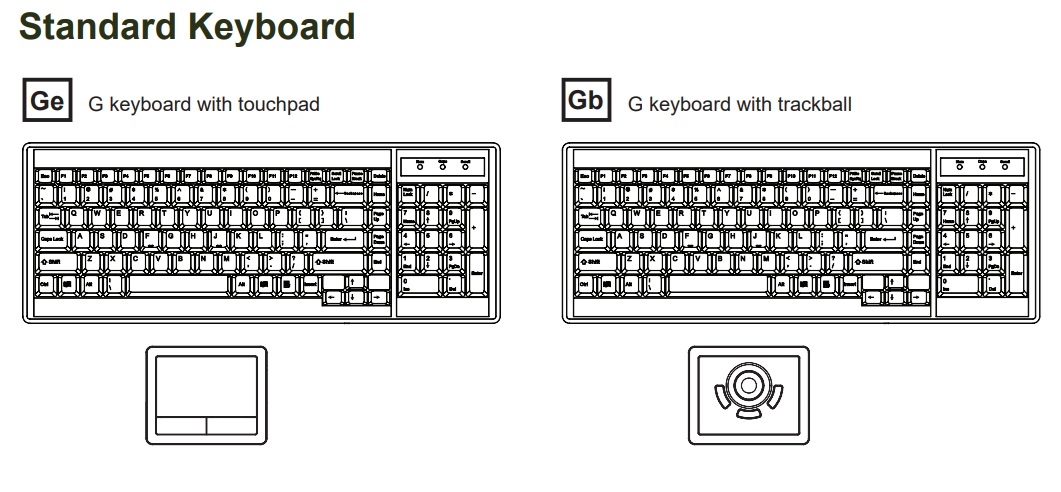

  • 104-key keyboard with either touchpad or trackball ( PS2 / USB )
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )
MRK-F17-2L / MRK-F17-2R

MRK-F17-2L / MRK-F17-2R Options

  • Front USB hub port for device access
  • 3G / HD / SD-SDI Broadcast-grade input
  • Sunlight readable 17" FHD display
  • MAC or SUN Micro keyboard options available
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Touchscreen : Projected Capacitive ( 10-pt ) / Resistive ( 1-pt )

MRK-F17-2 Package Contents

CyberView MRK-F17-2 Package Contents
  • (1) MRK-F17-2 Console Drawer
  • (2) 6ft DVI cable
  • (1) 6ft USB Keyboard cable
  • (1) Power adapter & cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

MRK-F17-2 Resources

CyberView MRK-F17-2 Diagram MRK-F17-2 Brochure (PDF)
MRK-F17-2 Manual (PDF)

CyberView MRK-F17-2L / MRK-F17-2R Specifications

Mechanical
Product Dimensions (H x W x D)3.5 x 17.4 x 21.7 in
( 88 x 441.6 x 550 mm )
Package Dimensions (H x W x D)7.8 x 22.8 x 26.9 in
( 197 x 580 x 683 mm )
Net Weight46.2 lb ( 21 kg )
Gross Weight57.2 lb ( 26 kg )
Chassis ColorDark
Chassis MaterialsSteel
Mounting
Rack Mounting2U
Mounting Depth21.65 to 31.1 inch ( 550 to 790 mm )
Console Ports
Video InputDVI-D + VGA
Video OptionHDMI 1.3 / HDCP 1.3
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution1920 x 1080
Brightness (cd/m2)400
Colors16.7 M, 8-bit
Contrast Ratio (typ)600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Response time ( ms )40
Dot pitch ( mm )0.1989
Display area ( mm )381.888H x 214.812V
Surface treatmentAnti-glare, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 25W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
