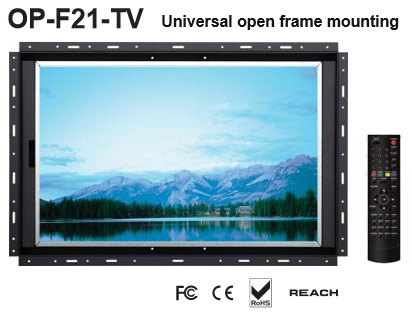

21" Full HD LED LCD Display with Digital TV and Universal Open Frame Mounting
OP-F21-TV
Aspect Ratio: 16:9
Screen Size: 21 in
Model: Universal Open Frame
Display Features & Benefits
- 21.5" widescreen LCD
- Panel-mount, VESA mount
- Green LED backlit technology
- Digital TV tuner decodes ATSC signal
- Modern Touch Controls

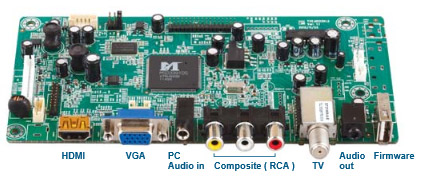

- Standard with HDMI, VGA, RCA, Audio & remote controller
| Mechanical | |
| Height | 14.4 in. (36.6 cm.) |
| Width | 22.6 in. (57.5 cm.) |
| Depth | 2.1 in. (5.3 cm.) |
| Weight | 16.5 lbs. (7.5 kg.) |
| Package Dimensions (HxDxW) | 25.9 x 4.6 x 25.2 inch (659 x 117 x 640 mm) |
| Package Weight | 23.3 lbs. (10.6 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Panel | |
| Display Size | 21.5" Widescreen TFT |
| Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 170° x 160° |
| Active area (mm) | 477 x 268 |
| Signal Input | ATSC DTV, HDMI, VGA, Composite |
