Rose QuadraVista KVM Switch
QV-4KVMDVI-2
Save $499.37
Features and Benefits
- Connects to four computers making each video source viewable and controllable on a single monitor
- Quad mode displays four computers on one screen
- PiP mode displays one computer in full screen with three thumbnail displays
- Easy-Find active window feature
- On-screen menus for easy set-up, console configuration, and use. Crisp, clear, high quality video
- Video resolution up to 1900 x 1200
- Keyboard commands and front panel controls for changing display modes
- Switch and control to any of the four screens while monitoring the other three connections in real time.
- VGA and DVI video support
- Supports USB and PS/2 computers
- Connect to KVM switches to view and control up to 1,000 of computers, routers, Ethernet switches or other serial devices
- Deploy with Rose CrystalView extenders to view and control computers up to six miles away
- Flash memory
- Simple and quick
Advantages
- The QuadraVista professional Quad Video KVM switch represents the latest in KVM technology.

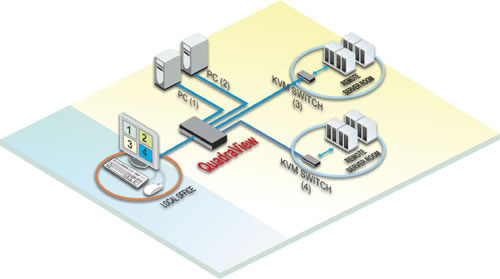

- The QuadraVista allows a user to connect to, control and display four computers on a single monitor or access a KVM switch to connect to 1,000·s of computers.
- The advanced design of the QuadraVista provides three viewing modes; Quad Screen, picture-in-picture (PiP) and Full Screen. Control of a selected computer can be done while in any of the three modes. View four computers in the quad screen mode and control any one of them while monitoring, in real time, the other three computers. In PiP mode you can view one display on a full screen while monitoring smaller displays of the other three computers.
Question: Dear Gentelman, we are a broadcast integrator company. Just to ask for a quote with a configuration for a quadsplit kvm switch in DVI/USB ports (4). Please include a 22" rackmount display/keyboard. So please send me a quote as soon as possible
Answer: Thank you for your inquiry,
I have forwarded your RFQ to our sales representatives, and they should get back to you shortly with a quote.
For the quickest turn-around time for quotes in the future, please feel free to contact your KVM Switches Online sales representative directly at sales@kvmso.com, by calling 1-877-586-6654, or by using our online chat functionality.
Question: Hi there, we are oil company and for our control station we are seeking for a product with the same specifications as this one but in 4K output to be able to use 4 FHD video signal as we can t change the resolution of the single monitor due to design constrains . do you have a product that can match these characteristics?
Answer: Thank you for your inquiry,
We are not currently aware of a local 4-source MultiViewer KVM Switch which outputs a single 4K resolution. There isn't currently an ideal solution for this (unless you are able change the resolution on your display from 4K to 1900x1200, then you could still use your 4 FHD video inputs), but you make a similar 4K MultiViewer solution using one of the following methods:
1) You can use a 4-User KVM-Over-IP Switch, and pull up each of the 4 sources as separate browser / VNC windows, which can be sized as you like, on a computer with that 4K display plugged in.
Example KVM Over IP solutions:
1 x Raritan DKX3-416
or
4 x Adder XDIP-PSU
or
Adder Infinity solution
2) We also have some more advanced 4K Video Wall solutions you can use in combination with a Keyboard-Mouse switch to achieve this, but this would require 3 more monitors that would each need to support 1080p.
Example Video Wall + Keyboard Mouse Switch solutions:
1 x SmartAVI SM-4KWL-S - 4K Video wall
or
1 x ROSE VWL-CH-DP02 - 4K Video wall
+
1 x Adder CCS-PRO4-US - 4 Port Keyboard Mouse Switch
Answer: Thank you for your inquiry,
I have forwarded your RFQ to our sales representatives, and they should get back to you shortly with a quote.
For the quickest turn-around time for quotes in the future, please feel free to contact your KVM Switches Online sales representative directly at sales@kvmso.com, by calling 1-877-586-6654, or by using our online chat functionality.
Question: Hi there, we are oil company and for our control station we are seeking for a product with the same specifications as this one but in 4K output to be able to use 4 FHD video signal as we can t change the resolution of the single monitor due to design constrains . do you have a product that can match these characteristics?
Answer: Thank you for your inquiry,
We are not currently aware of a local 4-source MultiViewer KVM Switch which outputs a single 4K resolution. There isn't currently an ideal solution for this (unless you are able change the resolution on your display from 4K to 1900x1200, then you could still use your 4 FHD video inputs), but you make a similar 4K MultiViewer solution using one of the following methods:
1) You can use a 4-User KVM-Over-IP Switch, and pull up each of the 4 sources as separate browser / VNC windows, which can be sized as you like, on a computer with that 4K display plugged in.
Example KVM Over IP solutions:
1 x Raritan DKX3-416
or
4 x Adder XDIP-PSU
or
Adder Infinity solution
2) We also have some more advanced 4K Video Wall solutions you can use in combination with a Keyboard-Mouse switch to achieve this, but this would require 3 more monitors that would each need to support 1080p.
Example Video Wall + Keyboard Mouse Switch solutions:
1 x SmartAVI SM-4KWL-S - 4K Video wall
or
1 x ROSE VWL-CH-DP02 - 4K Video wall
+
1 x Adder CCS-PRO4-US - 4 Port Keyboard Mouse Switch
