CyberView RK-1Sb - Sun Rackmount Keyboard Drawer w/ trackball
RK-1Sb
Save $93.00
Model: Standard Depth
Keyboard Layout: SUN
Mouse Type: Trackball
Cyberview RK-1Sb is a 1U Rackmount SUN Micro Keyboard Drawer with Trackball, and a full range of various KVM Switch Options. RK1 Series features a gel wrist pad, adjustable brackets, a two point lock, and modular keyboard & interface options, so as to be the most effective tool for an administrator to use to control multiple PCs.
Cyberview RK-1Sb Rack Keyboard Benefits
- SUN Micro Keyboard (US Standard) with trackball
- Keyboard drawer with full range of integrated KVM Switch options
- Enhanced aesthetics with new molded front panel & two point lock
Integrated KVM Options (Contact us for pricing / availability)
- Ports
- 8, 12, 16, or 32
- Users
- 1-2 (1 Local, 0-1 IP Web Browser, 0-1 Extended Remote)
- Video Input
- DVI, VGA, HDMI, DisplayPort
- Keyboard/Mouse
- USB or PS2
- KVM Type
- Cat6 or Combo DB-15
RK-1Sb Package Contents
- (1) RK-1Sb Rack Mount Keyboard
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RK-1Sb Resources
RK-1Sb Brochure (PDF)
RK-1Sb Manual (PDF)
RK-1Sb Integrated KVM Manuals (Link)
CyberView RK-1Sb Specifications
| Mechanical | |||||

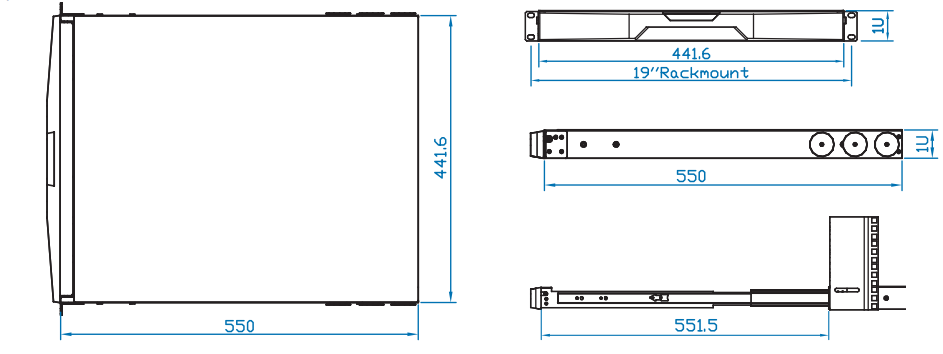

| Product Dimensions (H x W x D) |
| ||||
| Package Dimensions (H x W x D) |
| ||||
| Net Weight |
| ||||
| Gross Weight |
| ||||
| Mounting Distance | 23.7 ~ 31 inch (600 ~ 787 mm) | ||||
| Casing Color | Black ( RAL 9005 ) | ||||
| Console Port | |||||
| Keyboard / Mouse | Combo ( USB or PS2 ) | ||||
| Keyboard / Mouse 6ft cable (EKC-2) | Drawer end : DB-15 ( USB KB / MS ) Server end : USB type A | ||||
| Environmental | |||||
| Operating Temperature | 0 to 55°C Degree | ||||
| Storage Temperature | -20 to 60°C Degree | ||||
| Operating Humidity | 20~90%, non-condensing | ||||
| Relative Humidity | 5~90%, non-condensing | ||||
| Operating Altitude | 16,000 ft | ||||
| Non-operating Altitude | 40,000 ft | ||||
| Shock | 10G acceleration (11ms duration) | ||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||
| Regulatory Compliance | |||||
| EMC | FCC & CE certified | ||||
| Safety | CE / LVD certified | ||||
| Environment | RoHS2 & REACH compliant |
