2U 15" LCD Rackmount Monitor Keyboard Drawer w/ 8-Port USB KVM Switch
RKP215-S801
The AH RKP215-S801 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

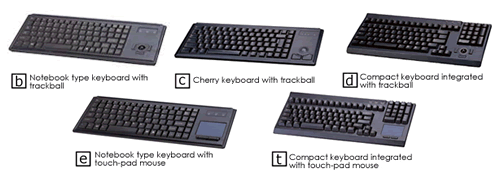

The keyboard options for the AH RKP215-S801 are:
AH RKP215-S801 Features:
- 2U 15" TFT LCD screen
- 1,024 x 768 with 60 / 70 / 75Hz
- Allow viewing through closed glass cabinet door
- Five keyboard selections support multiple languages
- Large padded wrist-rest for "d" & "t" style keyboard
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
RKP215-S801 Specifications:
| Mechanical | |
| Height | 3.5 in. (8.8 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 23.6 in. (60 cm.) |
| Weight | 37 lbs. (17 kg.) |
| Package Dimensions (H x W x D) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| Package Weight | 51 lbs. (23 kg.) |
| General | |
| Form factor | 2U rack mounting, separate slide-out screen & keyboard |
| Color | Black |
| Compatibility | Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs |
| Server-side Interface | HD15 VGA, USB Type A for KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 33.2" (390 to 845mm) |
| Environmental | |
| Operating temperature | 0 to 50 Degree Celsius |
| Storage temperature | -25 to 65 Degree Celsius |
| Relative Humidity | 90%, non condensing |
| Shock | 50G peak acceleration (11ms, half since wave) |
| Vibration | 58~500Hz/ 0.98G (11min/ cycle) |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| LCD Screen | |
| LCD Manufacturer | Samsung |
| LCD Origin | South Korea |
| Display Size | 15 inch diagonal |
| LCD Type | Samsung grade A industrial TFT LCD Panel |
| Resolution | 1,024 x 768 with 60 / 70 / 75Hz |
| Display color | 16.2 M |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 400:1 |
| Response Time | TR=5/ Tf=20 ms |
| Pixel Pitch | 0.297 (H) x 0.297 (V) mm |
| Viewing Angle | 70/ 70/ 60/ 65 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Video Input | S-video & Composite |
| LCD MTBF | 50,000 hrs |
| Integrated KVM Switch | |
| KVM port | 8 port HD15 female |
| Port access | Channel button or hot keys selectable |
| Indicators | Online (green) and selected (red) status LED |
| Cascade expansion | Up to 128 ports/servers |
| IP remote | TCP/IP access from anywhere around the world |
| KB/MS emulation | PS/2, with microprocessor support hot-plugging |
| Server-side interface | VGA HD15, analog RGB and 2 x 6-pin mini DIN |
| Support platform | MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS |
| KVM Cable | "CD" series PS/2 cable with 6, 10, 15 & 33 feet option (8- 6ft. cables included) |
| Cascade Cable | "CA" series cable to PS/2 KVM switch with 2, 6 feet option (sold separately) |
