2U 20" LCD Rackmount Monitor Keyboard Drawer w/ 2-Console 16-Port PS/2 KVM
RKP220-1602
The RKP220-1602 is a 2U, 20" Rackmount LCD monitor with 16 port PS/2 KVM Switch including 2 consoles (1 local, 1 remote). This Rack Mount LCD features a flip-up design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.

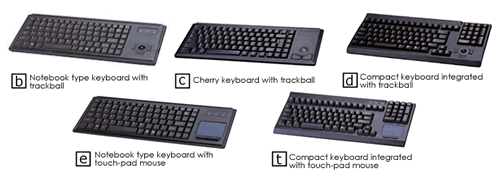

The keyboard options for the RKP220-1602 are (please choose an option from the drop down box above):
RKP220-1602 Features:
- 2U 20" TFT LCD screen
- Allow viewing through closed glass cabinet door
- Five keyboard selections support multiple languages
- Large padded wrist-rest for "d" & "t" style keyboard
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- (16) CD-6 KVM cables are included.
- All mounting hardware included
Integrated PS/2 KVM Switch Features:
- Name servers up to 16 characters long.
- Scan mode - Monitor servers at intervals 5 to 99 seconds.
- High Video Quality - Up To 1920x1440, Bandwidth: 200MHz
- Built-in microprocessor emulation for each port boots up process.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
- Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
- Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
- No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys
RKP220-1602 Rackmount LCD Specifications:
| Mechanical | |
| Height | 3.5 in. (8.8 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 25.9 in. (65 cm.) |
| Weight | 44 lbs. (20 kg.) |
| Packaged Dimensions (HxWxD) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| Packaged Weight | 53 lbs. (24 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -5 to 65 Degree Celsius |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| General | |
| Form Factor | 2U rack mounting, separate slide-out screen & keyboard |
| Color | Black |
| Compatibility | Multi-platform - Mix PC, SUN, IBM, HP & DELL |
| Server-side Interface | HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 33.2" (390 to 845mm) |
| LCD Screen | |
| Display Size | 20" inch diagonal |
| LCD Type | Samsung grade A industrial TFT LCD Panel |
| Resolution | 1600 x 1200 |
| Display color | 16.7 M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 800:1 |
| Response Time | TR=1 / Tf=4 ms |
| Pixel Pitch | 0.255 (H) x 0.255 (V) mm |
| Viewing Angle | 80/ 80/ 80/ 80 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Input | Video (S-video & Composite), DVI-D |
| LCD MTBF | 50,000 hrs |
| Integrated KVM Switch | |
| KVM Port | 16 port, HD15 female |
| Port Acess | Channel button or hot keys selectable |
| Indicators | Online (green) and selected (red) status LED |
| Cascade Expansion | Up to 128 ports/servers |
| Cat5 Remote | 500 feet remote access by Cat5 cable |
| KB/MS Emulation | PS/2, with microprocessor support hot-plugging |
| Server-side Interface | VGA HD15, analog RGB and 2 x 6-pin mini DIN |
| Support Platfrom | MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel, SCO Unix and MS DOS |
| KVM Cable | "CD" series PS/2 cable with 6, 10, 15 & 33 feet option- (16) 6' CD cables included |
| Cascade Cable | "CA" series cable to PS/2 KVM switch with 2, 6 feet option |
| Rear I/O Connector | |
| 16 KVM ports | HD15 female |
| PS/2 cascade port | 2 Mini DIN & HD15 female |
| Remote console port | RJ45 type |
| Regulatory Approval | |
| EMC Approved | FCC, CE, VCCI |
