Video
- VGA (standard)
- HDMI with Audio
- HDMI with Audio, & USB-C via USB-C to HDMI & USB Adapter
- HDMI (HDCP) + VGA / DVI-D
- BNC + S-Video
- 3G/HD/SD-SDI [HSDI]

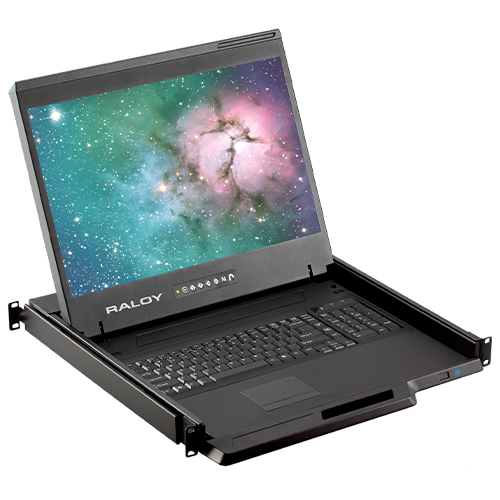

Raloy RWX119 1U 19" Widescreen LCD Rack Console
RWX119
Save $83.00
Model: 19" Widescreen
Integrated KVM: Console Only (1-Port)
The second generation Raloy RWX119 state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your monitor, keyboard, mouse and optional KVM in a single 1U rack unit. Raloy RWX119 rack console features a 19" Widescreen LCD, full 104 key keyboard and touchpad or trackball mouse.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with optional integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
- Space Saving
Short depth (18.1" deep) 2nd Gen 19″ LCD drawer in 1U.
- Modular Options
Support for various keyboard, mouse, video input, audio speaker, power, and KVM options.

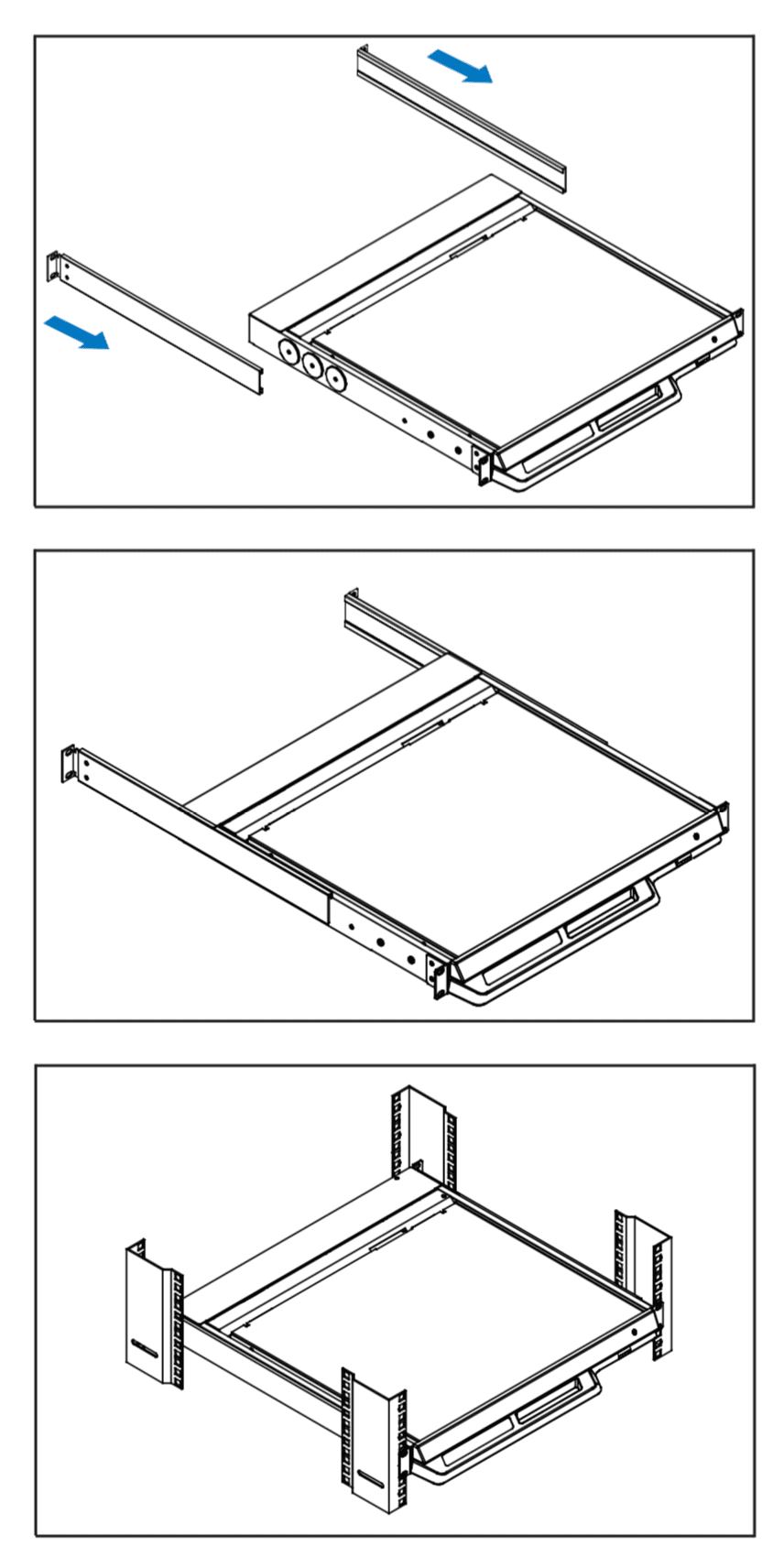

- 2-Post or 4-Post Mount
2-post & 4-post rack mounting available.
- Certified Quality
UL Approved, FCC & CE certified, and RoHS2 & REACH Compliant.
RWX119 Features
- 19" widescreen High-Contrast LCD - 1440 x 900 Max. Resolution
- 1U, short-depth (18.1in.) design rack console drawer
- Mounting depth from 18.1 to 29.5 in. (460 to 750 mm.)
(Note: optional configurations may increase min and max mounting depths) - 104-key keyboard with number pad and either touchpad or trackball

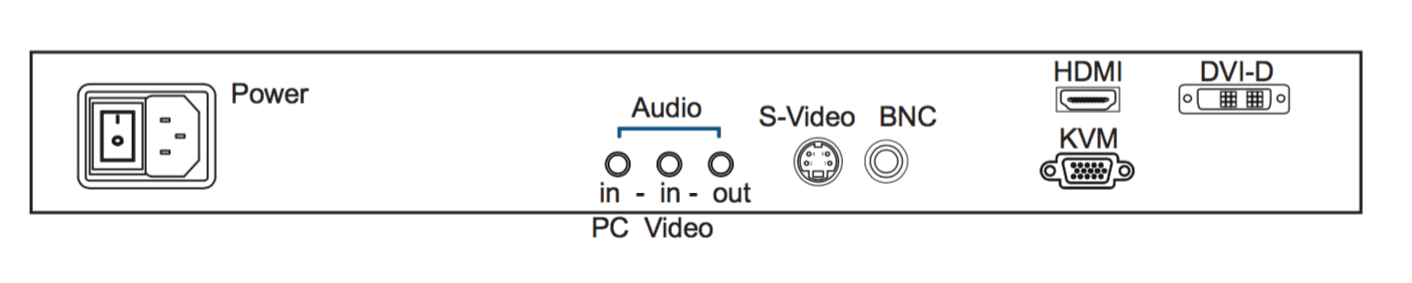

- VGA video input with optional video inputs: HDMI w/ Audio, HDMI (HDCP), BNC, or 3G / HD / SD-SDI.
- Integrated KVM options can scale as your needs change
- 2-post rack mounting option (for console only versions)

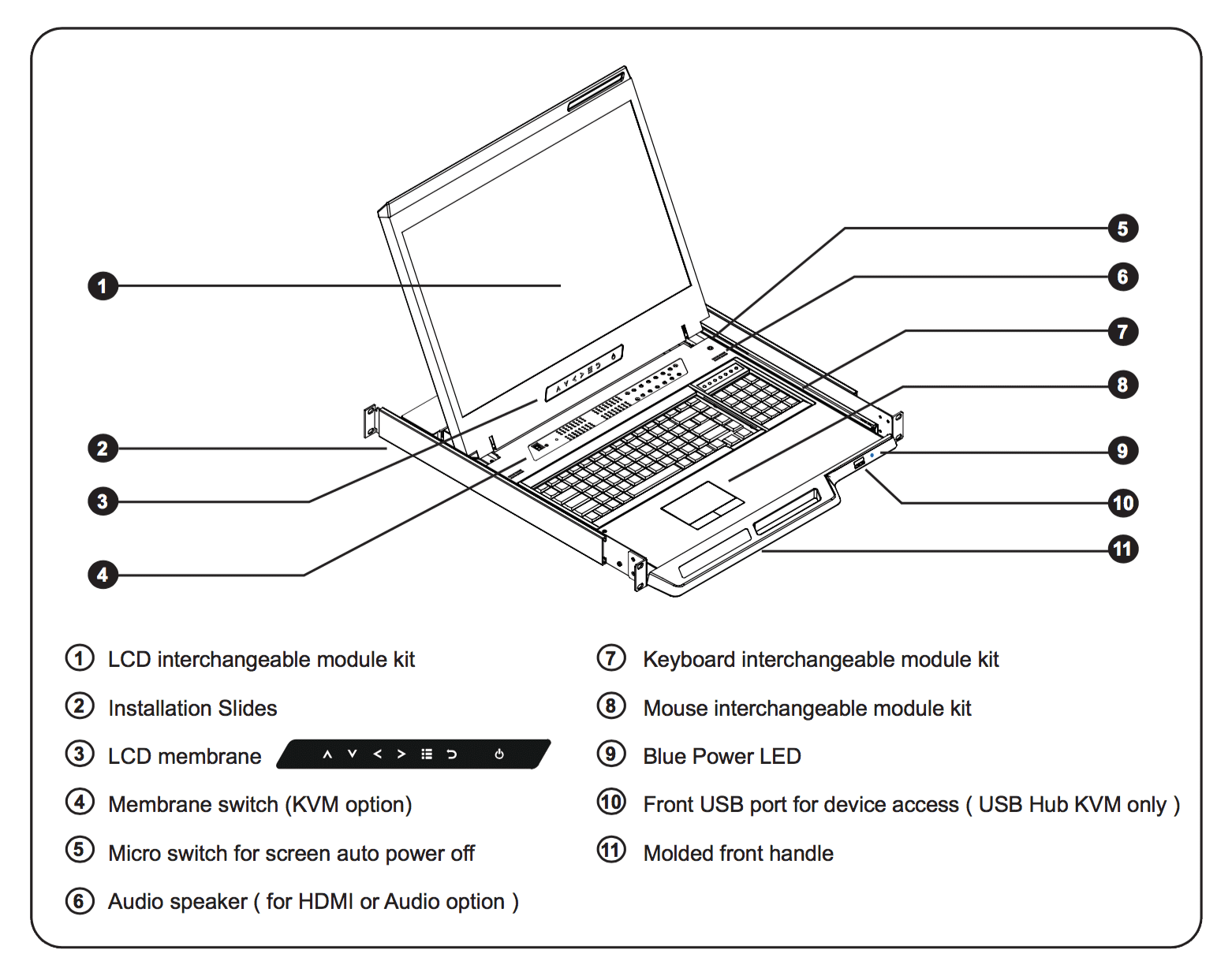

- New enhanced aesthetics with easy to maneuver molded front handle
- 24 Month Limited Warranty - Extended Warranties available for purchase
Raloy RWX119 Options
Mouse
- Glidepoint Touchpad (standard)
- Trackball
Keyboard
- 104-key notepad US keyboard (standard)
- Available in 14 international languages
Audio
- None (standard)
- 2x 2W Speakers + Audio Input & Output
Power
- 100 to 240V AC (standard)
- 12V DC
- 24V DC
- 48V DC
- 110V DC
- 125V DC
Integrated KVM Switch
- None (standard)
- 8 to 32 Port; 1 to 4 Concurrent Users (local or over-IP)
For help with your configuration, please feel free to Contact Us.

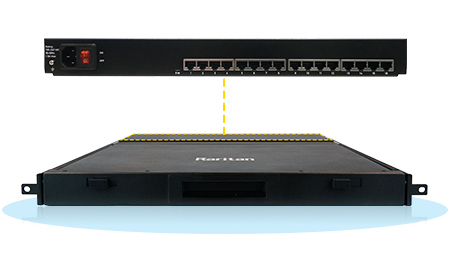

Integrate KVM Switch Into 1RMU
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

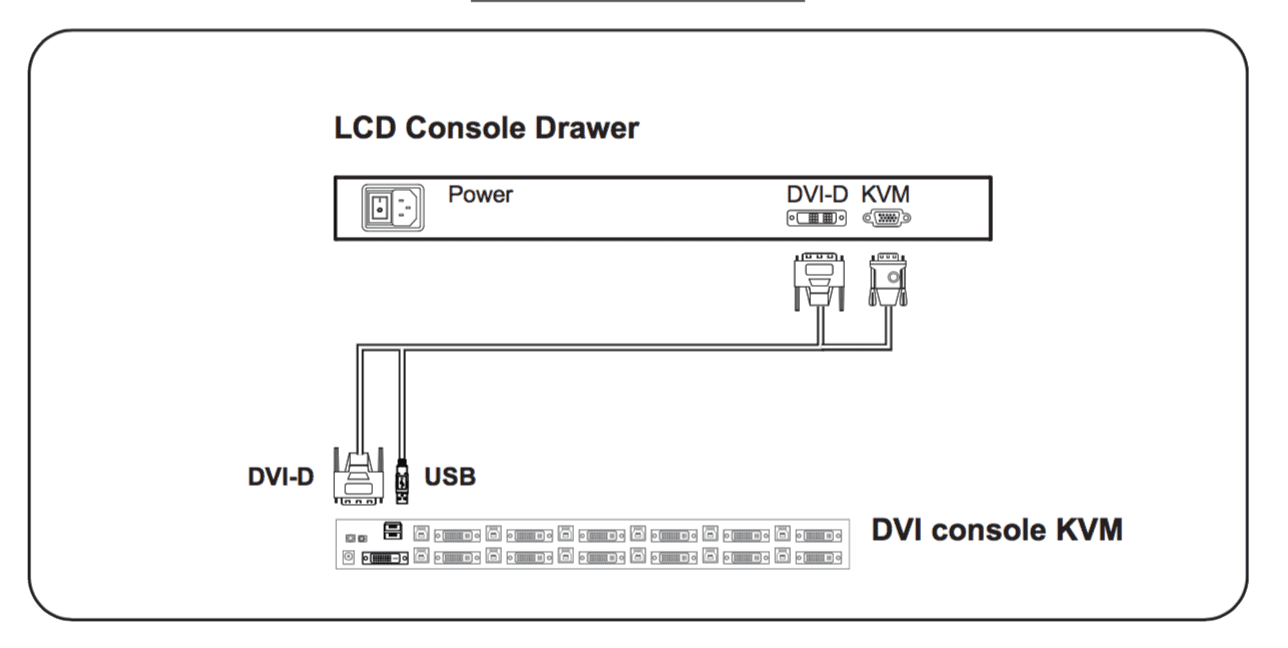

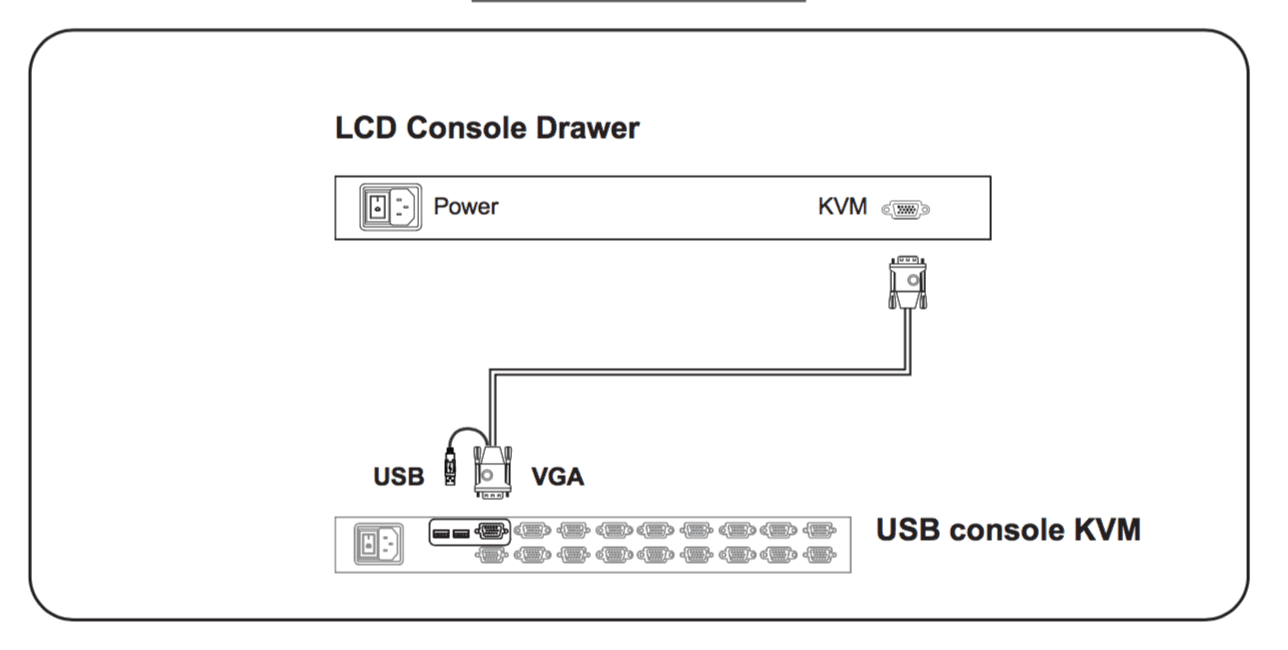

KVM Type |  RWX119 with DVI-D KVM |  RWX119 with High-Density Cat6 KVM |  RWX119 with VGA DB-15 KVM |  RWX119 with VGA DB-15 KVM with USB Hub |
|---|---|---|---|---|
| KVM Port Connection | DVI + USB |  |  | |
| Ports | 12 | 32 / 16 / 8 | 16 / 8 | 16 / 8 |
| KB / MS | USB | USB / PS2 | USB / PS2 | USB |
| Video | DVI-D | VGA / DVI / HDMI / DP / USB-C | VGA | VGA |
| Local User | 1 | 1 | 1 | 1 |
| Network IP Access Users | 0 | 0 to 2 | 0 to 2 | 0 to 1 |
| Extended Remote Users (500 ft) | 0 | 0 to 3 | 0 to 3 | 0 to 1 |
| USB Peripheral Port | 2 x USB 3.0 | -- | -- | 2 x USB 2.0 |
| Audio | Analog | -- | -- | -- |
| Max. Distance (KVM to Server) | 15 Ft / 4.5 M | 130 Ft / 40 M | 15 Ft / 4.5 M | 15 Ft / 4.5 M |
| Cascade Levels | -- | 8 | 8 | -- |
| Integrate | Integrate | Integrate | Integrate |
RWX119 Package Contents
- (1) RWX119 Rack Console

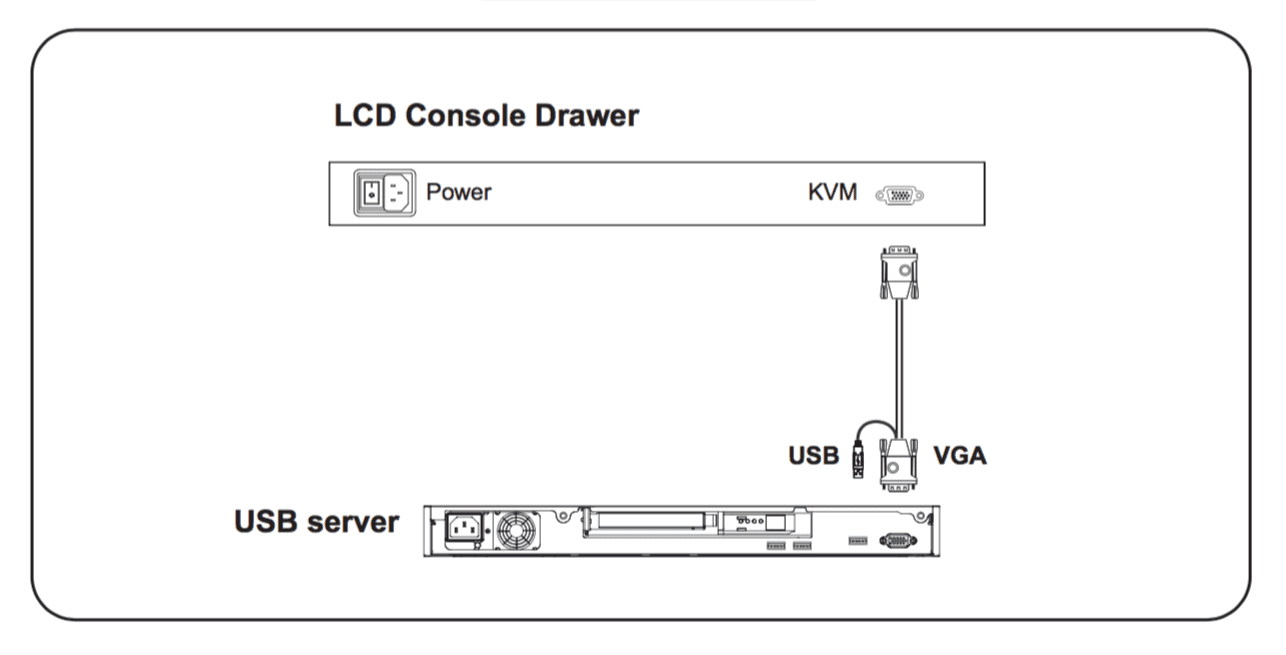

- (1) RCB-6 VGA/USB console cable
- (1) US Power Cord
- (8) M6 screw, cage nut & cup washer
- (1) 24 Month Limited Warranty
- Extended Warranties available for purchase - *Additional parts may be included based on options
RWX119 Resources
RWX119 Datasheet (PDF)
RWX119 Manual (PDF)
Instructional Media

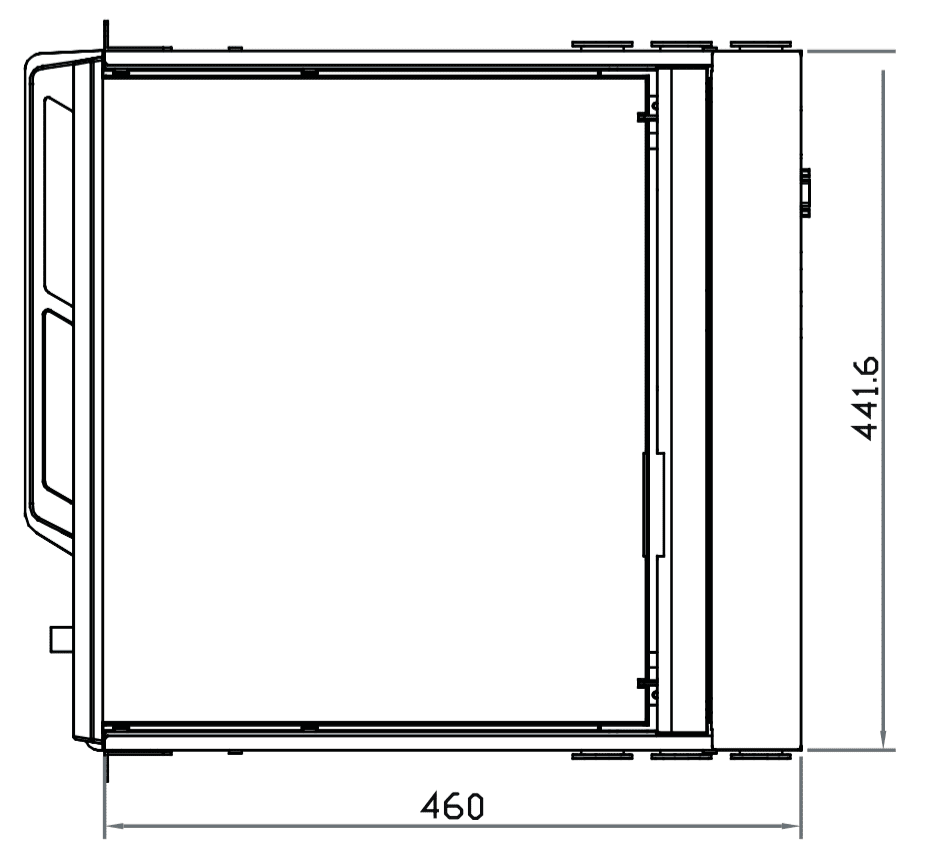

Raloy RWX119 Specifications

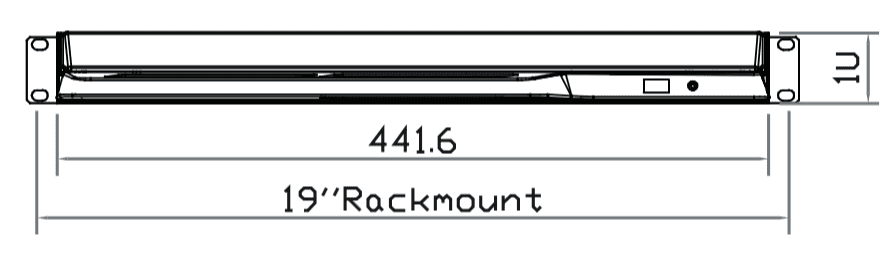

| Mechanical* | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 18.1 n. (460mm.) |
| Package Dimensions | 23.2 x 30.2 x 5.5 in. (590 x 768 x 140mm) |

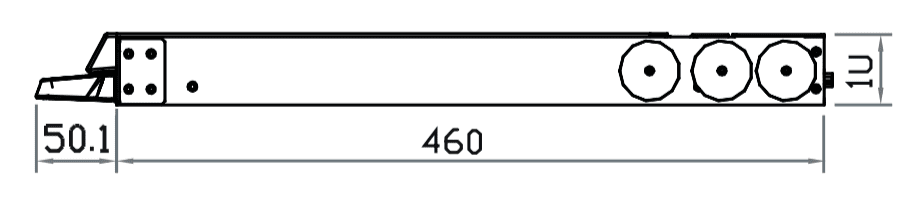

| Mounting Depth | 18.1 in. (min) to 29.5 in. (max) (460 to 750 mm) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 25.3 lbs. (11.5 kg.) |
| Gross Weight | 35.2 lbs. (16 kg.) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0° to 50°C) |
| Storage Temperature | 23 to 140°F (-5° to 60°C) |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 48 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 19" Widescreen TFT |
| Max. Resolution | 1440 x 900 |
| Brightness (cd/m2) | 300 |
| Color Support | 16.7 Mil. |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 160° |
| Display Area (mm) | 408 x 255 |
| Response Time (ms) | 5 |
| VGA Signal Input | Analog RGB, 0.7Vp-p |
| Sync. Type | Separate H/V, Composite, SOG |
| Resolution | 1440 x 900 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 960 x 60Hz 1280 x 760 x 60 / 75Hz 1152 x 864 x 75Hz 1024 x 768 x 60 / 70 / 75Hz 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz |
| Plug & Play DDC | EDID 1.3 |
| Console Port | VGA + USB or PS/2, server end DB15 (VGA, USB KB/MS), console side |
| Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers |
| Regulation Approval | cUL, FCC & CE certified RoHS2 & REACH compliant |
* Dimensions and weights are for rack console only. Any optional configurations and or integrated KVM selections will change the dimensions and weights accordingly.
The RWX119 is the second generation of the popular Raloy RW119-N-101 and the rest of the RW119 series of Raloy rack consoles.
Question: What is the ECCN number for this item?
Answer: Thank you for your inquiry,
The Export Control Classification Number (ECCN) for the Raloy RWX119 is: 4A994.
Question: Is the RWX119 TAA Compliant?
Answer: Thank you for your inquiry,
While the RWX119 would qualify for TAA compliant status, it has not been certified as such yet. I know that Raloy is currently looking into getting that process started.
In the meanwhile if you need a TAA Compliant certified rackmount console drawer, we have many options online (and more offline) including the Aten CL100MTAA (choose TAA from the 'version' drop down) and the NTI RACKMUX-V17. For more recommendations based on your application, please feel free to contact your KVM Switches Online sales representative directly.
Question: Where is it made?
Answer: Thank you for your inquiry. The country of origin for this unit is China and then it is assembled and tested in California.
Question: The RWX119 1U 19" LCD Rack Console is 460mm deep, but depth varies with accessories. What is the depth when 8 port KVM switch is added?
Answer: Thank you for your inquiry,
The RWX119 integrated with a KVM switch is 579.1mm or 22.8 inches deep - the KVM switch adds 119.1mm or 4.7 inches.
Question: I see only 1 remote IP console - How do i switch between IP servers?
Answer: Thank you for your inquiry,
For switching between channels for IP remote, you need to call out the KVM OSD menu by clicking "Scroll Lock, Scroll Lock, Space Bar", which is same way when you use the local console itself. You can also make it easier by creating a button for it - Please see the procedure below:
After you login your IP remote:
Question: How long will the RWX119 be available?
Answer: Thank you for your inquiry,
Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.
Question: The spec on website and brrochure indicates the Raloy RWX119 (single console) has a depth of 460mm. Would you please confirm if that RWX119 with HDMI option has the same depth (460mm)?
Answer: Thank you for your inquiry,
Great question! Unit depth for RWX119 with HDMI input option is 500mm (19.7") deep.

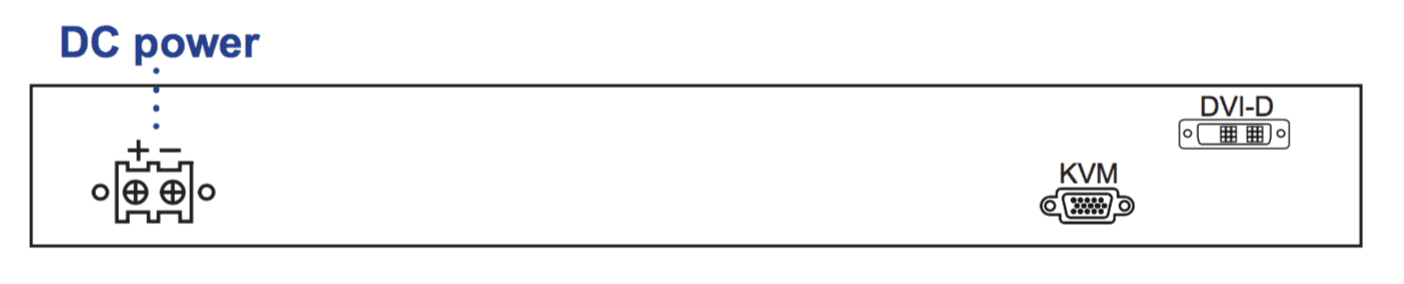

Question: I have a question about the DC Power terminal & Ground screw on the rear of this KVM. What sizes are the screws for the DC terminal (+/-) and ground screw? I can't seem to find this info on the manual for this KVM.
Answer: Thank you for your inquiry,
The screw size for DC terminal is 3mm, and the ground screw is 4mm.
Please let us know if there is anything else we can help you with!
Question: Is this product supported in the United Kingdom?
Answer: Thank you for your inquiry,
It is. We have full product support for the product in the United Kingdom. That being said, KVM Switches Online is unable to accept any returns for international orders. For more information on international orders, please refer to our International Order policy.
Please let us know if there is anything else we can help you with!
Question: Does the RWX119+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,
If the model comes with DC power input (RWX119+48), there is no power switch on the unit.
The RWX119 with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 16 of the Raloy RWX119 Manual.
Please let us know if there is anything else we can help you with!
Question: Can you please provide HTS code and ECCN number for the Raloy RWX119 unit?
Answer: Thank you for your inquiry,
See below for Export Classification information for the RWX119:
ECCN: 8528.51.0000
HTS: 4A994
Please let us know if there is anything else we can help you with!
Answer: Thank you for your inquiry,
The Export Control Classification Number (ECCN) for the Raloy RWX119 is: 4A994.
Question: Is the RWX119 TAA Compliant?
Answer: Thank you for your inquiry,
While the RWX119 would qualify for TAA compliant status, it has not been certified as such yet. I know that Raloy is currently looking into getting that process started.
In the meanwhile if you need a TAA Compliant certified rackmount console drawer, we have many options online (and more offline) including the Aten CL100MTAA (choose TAA from the 'version' drop down) and the NTI RACKMUX-V17. For more recommendations based on your application, please feel free to contact your KVM Switches Online sales representative directly.
Question: Where is it made?
Answer: Thank you for your inquiry. The country of origin for this unit is China and then it is assembled and tested in California.
Question: The RWX119 1U 19" LCD Rack Console is 460mm deep, but depth varies with accessories. What is the depth when 8 port KVM switch is added?
Answer: Thank you for your inquiry,
The RWX119 integrated with a KVM switch is 579.1mm or 22.8 inches deep - the KVM switch adds 119.1mm or 4.7 inches.
Question: I see only 1 remote IP console - How do i switch between IP servers?
Answer: Thank you for your inquiry,
For switching between channels for IP remote, you need to call out the KVM OSD menu by clicking "Scroll Lock, Scroll Lock, Space Bar", which is same way when you use the local console itself. You can also make it easier by creating a button for it - Please see the procedure below:
After you login your IP remote:
- Go to the KVM Settings
- Choose User Console
- Go all the way down, you will see "Remote console button keys"
- Click "More entries"
- Type "scroll_lock-scroll_lock-space" in the key definition row. (you can name anything you want for it)
- Then apply
Question: How long will the RWX119 be available?
Answer: Thank you for your inquiry,
Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.
Question: The spec on website and brrochure indicates the Raloy RWX119 (single console) has a depth of 460mm. Would you please confirm if that RWX119 with HDMI option has the same depth (460mm)?
Answer: Thank you for your inquiry,
Great question! Unit depth for RWX119 with HDMI input option is 500mm (19.7") deep.
Question: I have a question about the DC Power terminal & Ground screw on the rear of this KVM. What sizes are the screws for the DC terminal (+/-) and ground screw? I can't seem to find this info on the manual for this KVM.
Answer: Thank you for your inquiry,
The screw size for DC terminal is 3mm, and the ground screw is 4mm.
Please let us know if there is anything else we can help you with!
Question: Is this product supported in the United Kingdom?
Answer: Thank you for your inquiry,
It is. We have full product support for the product in the United Kingdom. That being said, KVM Switches Online is unable to accept any returns for international orders. For more information on international orders, please refer to our International Order policy.
Please let us know if there is anything else we can help you with!
Question: Does the RWX119+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,
If the model comes with DC power input (RWX119+48), there is no power switch on the unit.
The RWX119 with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 16 of the Raloy RWX119 Manual.
Please let us know if there is anything else we can help you with!
Question: Can you please provide HTS code and ECCN number for the Raloy RWX119 unit?
Answer: Thank you for your inquiry,
See below for Export Classification information for the RWX119:
ECCN: 8528.51.0000
HTS: 4A994
Please let us know if there is anything else we can help you with!
