2U 20" Samsung LCD Rackmount Monitor Keyboard Drawer
RKP220
The RKP220 is a 2U, 20" Rackmount LCD monitor. This Rackmount LCD features a flip-up design, adjustable brackets, built in LCD OSD to provide effective assistance for an administrator to control PC system.

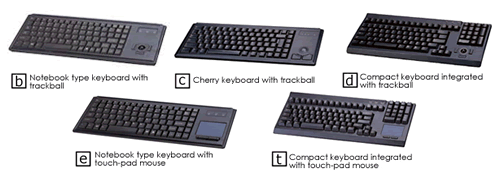

The keyboard options for the RKP220 are (please choose an option from the drop down box above):
RKP220 Features:
- 2U 20" TFT LCD screen
- Allow viewing through closed glass cabinet door
- Five keyboard selections support multiple languages
- Large padded wrist-rest for "d" & "t" style keyboard
- Adjustable mounting brackets from 390 to 845 mm
- Slide rails have fixed position to prevent movement of the keyboard & screen
- All mounting hardware included
RKP220 Rackmount LCD Specifications:
| Mechanical | |
| Height | 3.5 in. (8.8 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 25.9 in. (65 cm.) |
| Weight | 44 lbs. (20 kg.) |
| Packaged Dimensions (HxWxD) | 8.7 x 23.6 x 30.3 in. (22 x 60 x 77 cm.) |
| Packaged Weight | 53 lbs. (24 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50 Degree Celsius |
| Storage Temperature | -5 to 65 Degree Celsius |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A) |
| General | |
| Form Factor | 2U rack mounting, separate slide-out screen & keyboard |
| Color | Black |
| Compatibility | Multi-platform - Mix PC, SUN, IBM, HP & DELL |
| Server-side Interface | HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 33.2" (390 to 845mm) |
| LCD Screen | |
| Display Size | 20" inch diagonal |
| LCD Type | Samsung grade A industrial TFT LCD Panel |
| Resolution | 1600 x 1200 |
| Display color | 16.7 M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 800:1 |
| Response Time | TR=1 / Tf=4 ms |
| Pixel Pitch | 0.255 (H) x 0.255 (V) mm |
| Viewing Angle | 80/ 80/ 80/ 80 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Input | Video (S-video & Composite), DVI-D |
| LCD MTBF | 50,000 hrs |
| Rear I/O Connector | Console port for VGA PS/2 KB/MS, HD15 female DC power input, Plug-round type |
| Regulatory Approval | |
| EMC Approved | FCC, CE, VCCI |
