4-port Secure EAL4+ KVM, DisplayPort 1.2 to HDMI 1.4, Audio
SC840D-001
Save $430.88
End-Of-Life (EOL)
For stock: Contact Us
Replaced by: Vertiv Cybex Secure SC840DPH-400 Switch
Vertiv Cybex SC840D Brochure (PDF)
Vertiv Cybex SC840D Manual (PDF)
The Cybex SC840D secure desktop KVM is designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NAIP protection profile for peripheral sharing devices version 3.0. The SC840D delivers proven security features such as unidirectional data diode technology, which assures complete network isolation while offering user-friendly, easy switching between sources. An active anti-tampering system and holographic tampering evident labels alert the user when the system has been physically compromised. Patented emulation technology prevents Display Data Channel (DDC) signal leakage; and guards against signal attacks.
Industry-leading security features are complemented with a range of capabilities and productivity features that make the Cybex SC840D a great investment. Experience true image reproduction with support for Display Port 1.2, which delivers resolutions up to UHD 4K (3840X2160 @ 30 ). NUM Lock, CAPS Lock and Scroll Lock indicators improve user interaction while maintaining unidirectional data flow from peripherals to PC. Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.
The Cybex SC840D KVM switch delivers strong, effective security management designed to tightly control system and network access and deliver transparent security that does not impede user productivity
- Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices.
- Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports.
- Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use.
- Gain true image reproduction and display flexibility - Cybex KVM switches offer the industry's broadest range of video connections. The SC840D supports Display Port 1.2, which delivers resolutions up to UHD 4K (3840X2160 @ 30).

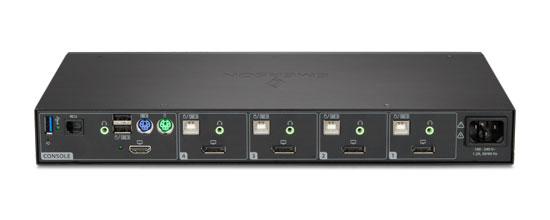

SC840D KVM Back View
Avocent SC840D-001 Specifications:
| Mechanical | |
| Height | 1.7 in (42 mm) |
| Width | 13.7 in (342 mm) |
| Depth | 5 in (125 mm) |
| Weight | 3.2 lbs (1.6 kg) |
| Microphone | No |
| Speaker | Yes |
| Video | DisplayPort 1.2 |
| MAX Resolution | UHD 4K resolutions up to 3840x2160 @ 30 Hz |
| Environmental | |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 0-80% RH, non-condensing |
| Power | |
| Operating Voltage | 100 to 240VAC |
| Power Consumption | 35W Max Internal |
| Device Support | |
| Certifications | RCM, EU, FCC Class B, VCCI, c-UL |
| CAC/DPP | No |
| Warranty | 3 Years |
Avocent Cybex (by Vertiv) SC840D is also known as SC 840D
UPC 636430074900
EAN 0636430074900
