4-port Secure EAL4+ KVM, HDMI 1.4, Audio
SC840H-001
Save $358.82
Discontinued
For upgrade or replacement options: Contact Us
Vertiv Cybex SC840H Brochure (PDF)
Vertiv Cybex SC840H Manual (PDF)
The Cybex SC840H secure desktop KVM is designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NAIP protection profile for peripheral sharing devices version 3.0. The SC840H delivers proven security features such as unidirectional data diode technology, which assures complete network isolation while offering user-friendly, easy switching between sources. An active anti-tampering system and holographic tampering evident labels alert the user when the system has been physically compromised. Patented emulation technology prevents Display Data Channel (DDC) signal leakage; and guards against signal attacks.
Industry-leading security features are complemented with a range of capabilities and productivity features that make the Cybex SC840H a great investment. Experience true image reproduction with support for HDMI 1.4, which delivers resolutions up to UHD 4K (3840X2160 @ 30). NUM Lock, CAPS Lock and Scroll Lock indicators improve user interaction while maintaining unidirectional data flow from peripherals to PC. Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.
The Cybex SC840H KVM switch delivers strong, effective security management designed to tightly control system and network access and deliver transparent security that does not impede user productivity
- Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices.
- Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports.
- Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use.
- Gain true image reproduction and display flexibility - Cybex KVM switches offer the industry's broadest range of video connections. The SC840H supports HDMI 1.4, which delivers resolutions up to UHD 4K (3840X2160 @ 30 ).

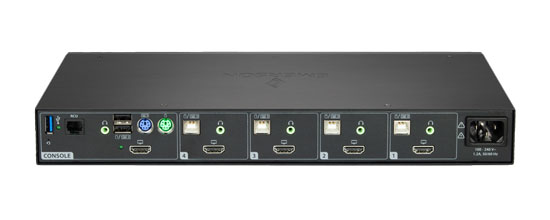

SC840H KVM Back View
Avocent SC840H-001 Specifications:
| Mechanical | |
| Height | 1.7 in (42 mm) |
| Width | 13.7 in (342 mm) |
| Depth | 5 in (125 mm) |
| Weight | 3.2 lbs (1.6 kg) |
| Microphone | No |
| Speaker | Yes |
| Video | 1 x HDMI 1.4 |
| MAX Resolution | UHD 4K resolutions up to 3840x2160 @ 30 Hz |
| Environmental | |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 122°F (-20° to 50°C) |
| Humidity | 0-80% RH, non-condensing |
| Power | |
| Operating Voltage | 100 to 240VAC |
| Power Consumption | 35W Max Internal |
| Device Support | |
| Certifications | RCM, EU, FCC Class B, VCCI, c-UL |
| CAC/DPP | No |
| Warranty | 3 Years |
Avocent Cybex (by Vertiv) SC840H is also known as SC 840H
UPC 636430075150
EAN 0636430075150
