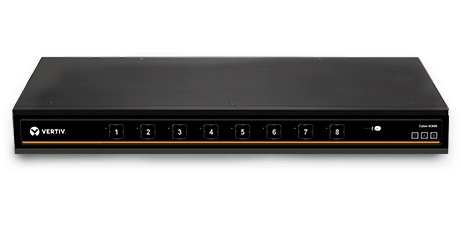

8-port Secure EAL4+ KVM, DisplayPort 1.2 - USB 3.0 Peripheral Port (CAC), Audio

SC885DP-001

$2,864.00$2,148.00
Save $716.00

End-Of-Life (EOL)
For stock: Contact Us

Ports: 8 Computer Ports
Video Type: DisplayPort 1.2
Video Output: Single Monitor
Features: Audio & USB CAC

Vertiv Cybex SC885DP Manual (PDF)

The Avocent Cybex SC885DP secure desktop KVM is designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NAIP protection profile for peripheral sharing devices version 3.0. The SC885DP delivers proven security features such as unidirectional data diode technology, which assures complete network isolation while offering user-friendly, easy switching between sources. A Dedicated Peripheral Port (DPP) permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers and face recognition devices. Patented emulation technology prevents Display Data Channel (DDC) signal leakage; and guards against signal attacks.

Industry-leading security features are complemented with a range of capabilities and productivity features that make the Cybex SC885DP a great investment. Experience true image reproduction with support for Display Port 1.2, which delivers resolutions up to UHD 4K (3840X2160 @ 30). NUM Lock, CAPS Lock and Scroll Lock indicators improve user interaction while maintaining unidirectional data flow from peripherals to PC. Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.

The Cybex SC885DP-001 KVM switch delivers strong, effective security management designed to tightly control system and network access and deliver transparent security that does not impede user productivity

  • Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices.
  • Support for USB authentication devices - A dedicated peripheral port (DPP) supports CAC and additional types of authentication devices, such as facial recognition and fingerprint readers.
  • Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports.
  • Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use.
  • Gain true image reproduction and display flexibility - Cybex KVM switches offer the industry's broadest range of video connections. The SC845DP supports Display Port 1.2, which delivers resolutions up to UHD 4K (3840X2160 @ 30).

Cybex SC 800DP Secure KVM Series Back View
(4-Port SC845DP shown here)
SC845DP back view

Avocent SC885DP-001 Specifications:

Mechanical
Height 1.7 in (43 mm)
Width 17.3 in (439 mm)
Depth7.3 in (185 mm)
Weight5.4 lbs (12.5 kg)
Audio1 x 3.5 mm stereo female
MicrophoneNo
Video​1 x Display Port 1.2
MAX ResolutionUHD 4K resolutions up to 3840x2160 @ 30 Hz
Environmental
Operating Temperature32° to 104°F (0° to 40°C)
Storage Temperature-4° to 140°F (-20° to 60°C)
Humidity0-80% RH, non-condensing
Power
Operating Voltage100 to 240VAC
Power Consumption45W Max Internal
Device Support
ComputersUSB and DisplayPort
CertificationsCE, RCM, FCC class B, VCCI, TUV US, TUV Canada
CAC/DPPYes
Warranty3 Years

Avocent Cybex (by Vertiv) SC885DP is also known as SC 885DP
