16-Port Single-head Secure DVI-I KVM Switch with KB/Mouse USB emulation
SDVN-16S
Save $232.00
SDVN-16S: Ultra-Secure KVM Switching
The SDVN-16S is a 16-port, single-head dual-link DVI-I Secure KVM switch with support for 2560×1600 @ 60Hz resolution video.The SDVN-16S allows users to control KVM (Keyboard, Video and Mouse) operation on up to 16 computers with DVI, HDMI or VGA displays. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.
With the SDVN-16S, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SDVN-16S offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDVN-16S ensures no data is leaked between secure ports and the outside world.
The SDVN-16S has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDVN-16S.

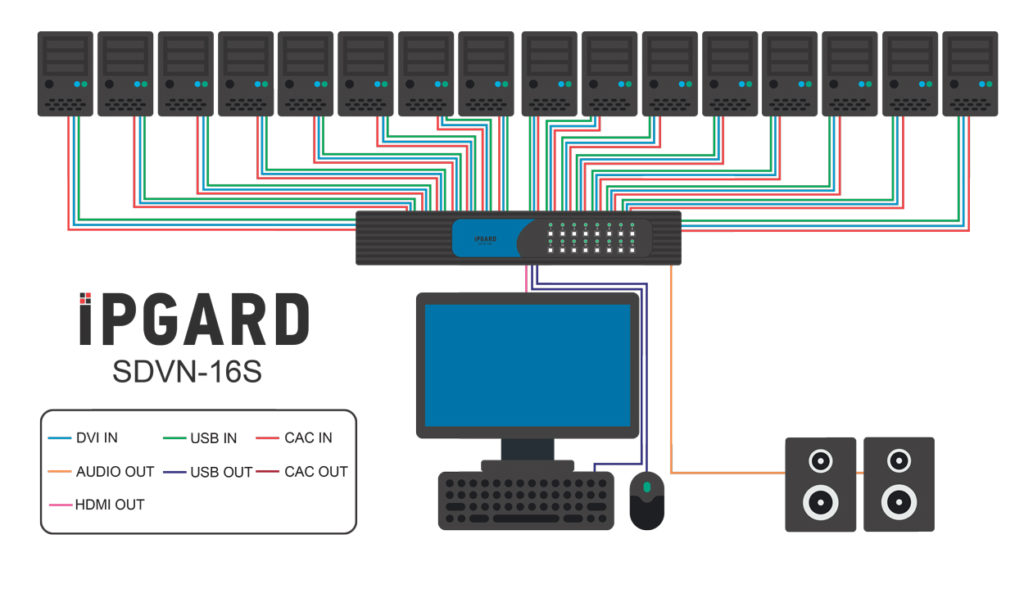

SDVN-16S Application Diagram
Key Features
- Supports Windows, Mac and Linux OS
- Single-head DVI-I video interface.
- Native DVI-I resolutions support up to 2560×1600 @ 60Hz
- Supports Balanced speakers output and switching
- Front panel tactile buttons with LED indicator
- Secure Keyboard & Mouse Emulation
- Secure EDID Learn And Video Emulation
- External power supply - Level VI efficiency
Security Features
- Non-reprogrammable ROM
- Active Anti-tamper switches
- Long-life internal Anti-tampering battery
- External tamper-evident seals
- Keyboard, Mouse and Video emulation
- Absolute isolation - No data leakage between ports
- Certified by NIAP, the latest Common
- Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)
> View the NIAP certification and validation documents here.
Why Secure KVM?
Traditional non-secure KVM switches offer centralized control of multiple computers, but offer no absolute isolation between them. This exposes systems to the possibility of malicious damage and disruption, and acquisition of sensitive data from one computer to another.
IPGard's Secure KVM Switch is designed for use in secure defense and intelligence applications where sensitive data must be protected. The Switch is NIAP PP 3.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switch prevents data leakage between computers that can run at different security levels, and eliminate any potential cyber threat.
Keyboard & Mouse Emulation
The Secure KVM emulates (simulates) the presence of a keyboard and mouse for every attached computer through a USB cable. Both selected and non-selected computers maintain a constant connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected peripherals during switching operations. Emulation of keyboard and mouse also prevents direct connection between the peripherals and the connected computers, shielding systems from potential vulnerabilities.
Secure EDID Learn And Video Emulation
The SDVN-16S simulates a generic EDID as default, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit's video emulation controllers, allowing for ultra-fast switching and restricting discovery of newly connected monitors during switching operations. Upon activating the KVM, the unit will quickly and automatically learn new EDID for specific monitors. The unit then prevents unwanted and unsecure data from getting transmitted through DDC lines by means of secure EDID learning and emulation.
SDVN-16S Package Includes
- 1 x 16-Port SH DVI Secure KVM w/ Audio, PP 3.0
- 1 x PS12V3A power supply
- Cables not included:
- Per target system: 1 x DVI-I cable, 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable
SDVN-16S Back
SmartAVI SDVN-16S Specifications
Learn More: SmartAVI SDVN-16S Brochure (PDF)
SmartAVI SDVN-16S Manual (PDF)
| VIDEO | |
|---|---|
| Format | DVI-I Dual Link, DVI 1.0, DVI-D, XVGA |
| Max. Pixel Clock | 248 MHz |
| Input Interface | (16) DVI-I 29-pin |
| Output Interface | (1) DVI-I 29-pin |
| Resolution | Up to 2560×1600 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps |
| USB | |
| Input Interface | (16) USB Type-B |
| Output | (2) USB 1.1 Type A for KM Devices |
| Emulation | Keyboard & Mouse |
| AUDIO | |
| Audio Input | (16) 3.5mm stereo audio |
| Audio Output | (1) 3.5mm stereo audio |
| CONTROL | |
| Front Panel | Front panel SELECT buttons |
| OTHER | |
| Power | External 100-240 VAC/12VDC3A @ 36W |
| Dimensions | 17.0" W x 2.7" H x 8.69" D |
| Weight | 6.9 lbs |
| Approvals | NIAPP PP 3.0, UL, CE, ROHS Compliant |
| Operating Temp. | +32 to +104°F (0 to +40°C) |
| Storage Temp. | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |
UPC 68691122552
EAN 068691122552
